Introducing Corona. A new stone-effect porcelain tile from Italy.

Find Us
North London Showroom 23 Temple Fortune Parade Finchley Road London NW11 0QS 020 3141 3337 Get Directions	South London Showroom 88 High Street Wimbledon London SW19 5EG 020 3141 3337 Get Directions
Email Us enquiry@porcelaintiles.co.uk Or use our contact form Book an Appointment

Search
Search: grey, 20mm, white marble, grip, fabrication, bookmatch etc...

Corona - Ercolano – Natural (ID: 7797)
Corona - Ercolano – Polished (ID: 7799)
Corona - Ercolano Bookmatched – Polished (ID: 12149)

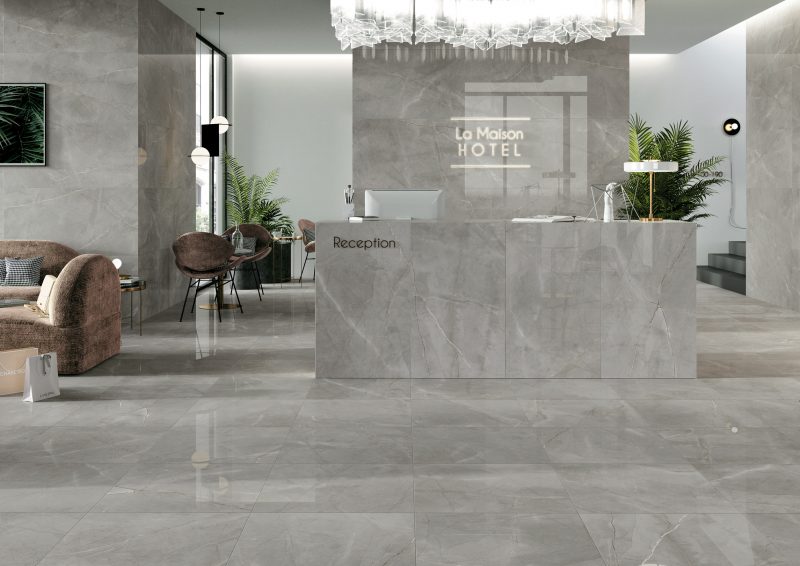

Corona - Romano – Natural (ID: 12419)
Corona - Romano – Polished (ID: 12416)

Size & finish

Colour	Finish	Size (MM)
Romano	Polished	1200 x 2400 x 9
Ercolano	Natural	1200 x 1200 x 10.5
Ercolano	Polished	1200 x 1200 x 10.5
Romano	Natural	1200 x 1200 x 9
Romano	Polished	1200 x 1200 x 9
Ercolano	Natural	600 x 1200 x 10.5
Ercolano	Polished	600 x 1200 x 10.5
Romano	Natural	600 x 1200 x 9
Romano	Polished	600 x 1200 x 9
Ercolano	Natural	600 x 600 x 10.5
Ercolano	Polished	600 x 600 x 10.5
Romano	Natural	600 x 600 x 9
Romano	Polished	600 x 600 x 9
Romano	Natural	300 x 600 x 9
Romano	Natural	150 x 600 x 9
Romano	Polished	150 x 600 x 9

1200 x 2400

600 x 1200

1200 x 1200

150 x 600

300 x 600

600 x 600

Bookmatched

Bookmatched Ercolano Design 1
Bookmatched Ercolano Design 2
Bookmatched Ercolano Design 3

Colour	Finish	Size (MM)	Decor
Ercolano	Polished	1200 x 1200 x 10.5	Bookmatch Block A
Ercolano	Polished	1200 x 1200 x 10.5	Bookmatch Block B

Special Pieces & Mosaic

Mosaic (24×24 chip size) Romano
Mosaic (48×48 chip size) Romano
Tozzetto Romano
Listello Romano

Colour	Finish	Size (MM)	Special Piece
Romano	Polished	330 x 1200	Step Tile Gradino B
Ercolano	Natural	325 x 1200 x 10.5	Step Tile
Ercolano	Natural	60 x 1200 x 10.5	Skirting Tile
Ercolano	Polished	60 x 1200 x 10.5	Skirting Tile
Romano	Natural	330 x 600 x 9	Step Tile Gradino B
Romano	Polished	330 x 600 x 9	Step Tile Gradino B
Romano	Natural	72 x 600	Skirting Tile
Romano	Polished	72 x 600	Skirting Tile
Romano	Polished	70 x 600 x 9	Listello
Ercolano	Natural	60 x 600 x 10.5	Skirting Tile
Ercolano	Polished	60 x 600 x 10.5	Skirting Tile
Romano	Natural	330 x 330 x 9	Step Tile Gradino Ang. B
Romano	Polished	330 x 330 x 9	Step Tile Gradino Ang. B
Romano	Natural	300 x 300 x 9	Mosaic (Chip Size 48x48mm)
Romano	Polished	300 x 300 x 9	Mosaic (Chip Size 24x24mm)
Romano	Polished	70 x 70	Tozzetto

Technical Specification

Shade Tone Variance

Colour	Variance
Ercolano	V3
Romano	V2

Understanding Shade Tone Variance

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance Rating	Description
V1	Uniform Appearance
V2	Slight Variation
V3	Moderate Variation
V4	Substantial Variation

Ramp Test Values (DIN 51130)

Colour	Finish/Style	R Rating Value	Friction
Ercolano	Natural	R10	Normal
Romano	Natural	R9	Minimal

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating Value	Friction
R9	Minimal
R10	Normal
R11	Good
R12	Good
R13	Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

Physical Properties	Standard of Test	Required Value	Manufacturers Mean Values
			Natural	Polished
Sides	EN ISO 10545-2	± 0.6% MAX (± 2.0 mm MAX)	Complies	Complies
Thickness	EN ISO 10545-2	± 5.0% MAX (± 0.5 mm MAX)	Complies	Complies
Straightness of sides	EN ISO 10545-2	± 0.5% MAX (± 1.5 mm MAX)	Complies	Complies
Rectangularity	EN ISO 10545-2	± 0.6% MAX (± 2.0 mm MAX)	Complies	Complies
Surface flatness	EN ISO 10545-2	± 0.5% MAX (± 2.0 mm MAX)	Complies	Complies
Water absorption	EN ISO 10545-3	≤ 0.5%	0.04%	0.04%
Flexion resistance	EN ISO 10545-4	S ≥ 700 N (< 7.5 mm)	S 2.900 N	S 2.900 N
		S ≥ 1.300 N (> 7.5 mm)
		R ≥ 35 N/mm²	R 52 N/mm²	R 52 N/mm²
			(60x60 size)	(60x60 size)
Impact resistance	EN ISO 10545-5	DECLARED VALUE	0.89	0.89
Abrasion resistance	EN ISO 10545-6	≤ 175 mm³	139 mm³	139 mm³
Coefficient of linear thermal-expansion	EN ISO 10545-8	—	Available on Request	Available on request
Resistance to thermal shocks	EN ISO 10545-9	PASS ACCORDING EN ISO 10545-1	NO DAMAGE	NO DAMAGE
Frost resistance	EN ISO 10545-12	PASS ACCORDING EN ISO 10545-1	NO DAMAGE	NO DAMAGE
Resistance to chemicals	EN ISO 10545-13	UB MIN.	UA ULA UHA	GA GLA
Resistance to stains	EN ISO 10545-14	DECLARED VALUE	5	5
Slip resistance	DIN 51130	-	R9	-

Download Product Catalogue

You can download the Corona product catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.

Corona catalogue click to download

Now Imagine catalogue click to download

Ordering tile samples

To order Corona tile samples please choose from the swatches shown aboveto the left. You should see the tile swatches that are available and their corresponding Order buttons. Clicking the appropriate button will add the tile selection to your order.

To review your items or to complete your order simply click on the white tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Complete order

Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.

Corona is a stone range of porcelain tiles. You can view more from our stone collection here.

Environmental Certification

Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.

Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.

Corona is ECOLABEL and LEED^® certified.

LEED^® certification

LEED^® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED^® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED^® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED^® certification and are suitable for the LEED^® approval process.

EU Ecolabel

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.

Corona is a stone range of porcelain tiles. You can view more from our stone collection here.
