Nuovo Spazio Polished Finish
Nuovo Spazio is a stone-effect porcelain tile and forms part of our Nuovo Spazio Range. This tile is offered with a Polished finish. To order a Nuovo Spazio tile sample in Polished finish click the Order Sample button below.
Nuovo Spazio Product Story

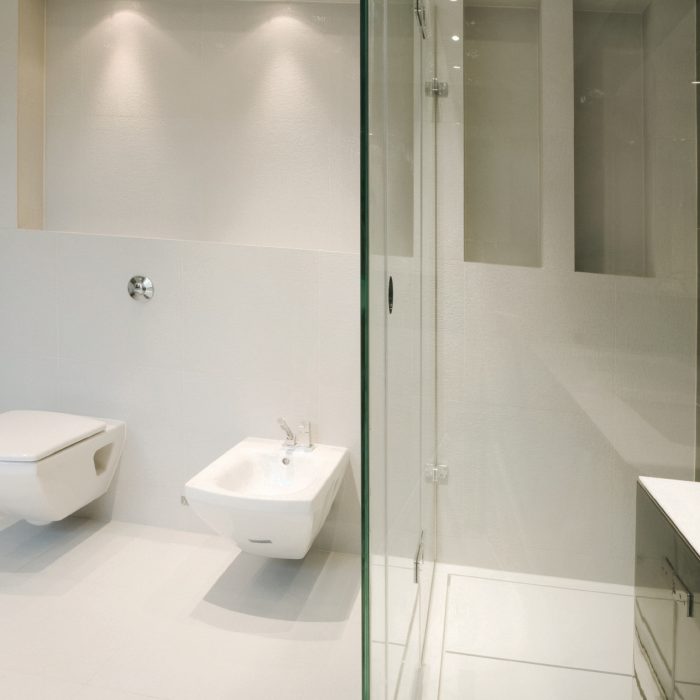

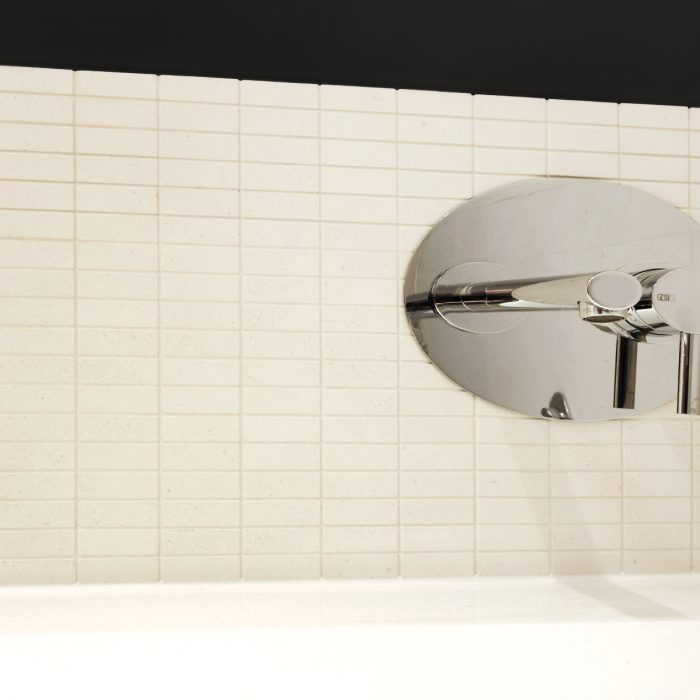

The clean, airy feeling of this white range makes it a favourite among designers and architects who want minimalist simplicity with warmth and personality. Special pieces like the rough brick mosaic complement the range beautifully by adding texture. With natural, polished or structured finishes, this range can be used indoors or out and is perfect for wet areas such as pools, spas and bathrooms. Nuovo Spazio is part of our Stone-effect Collection.

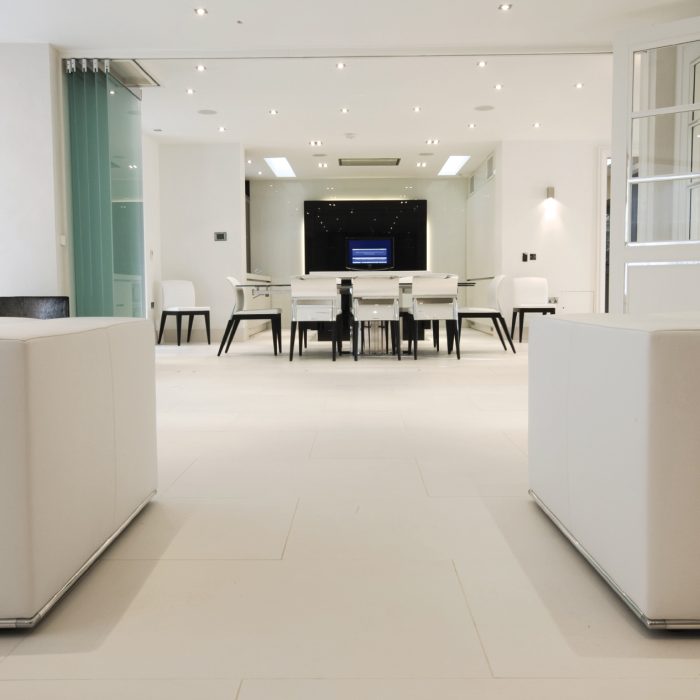

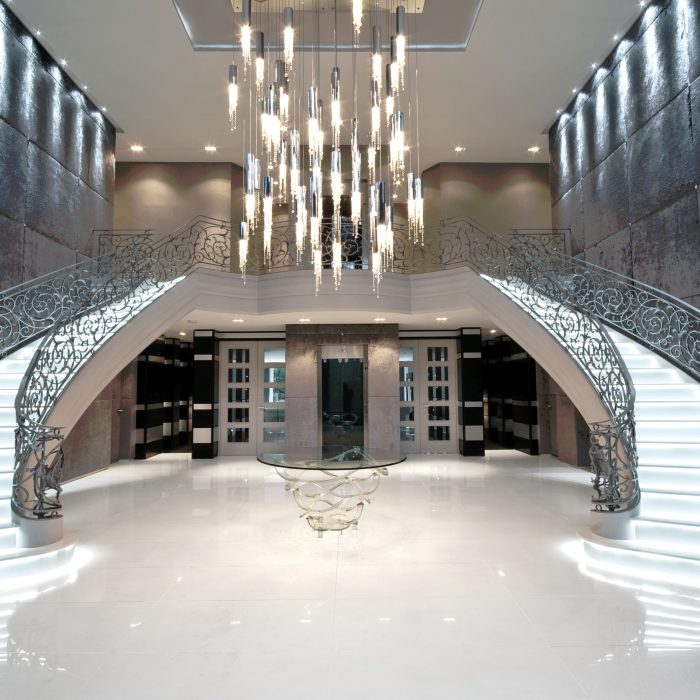

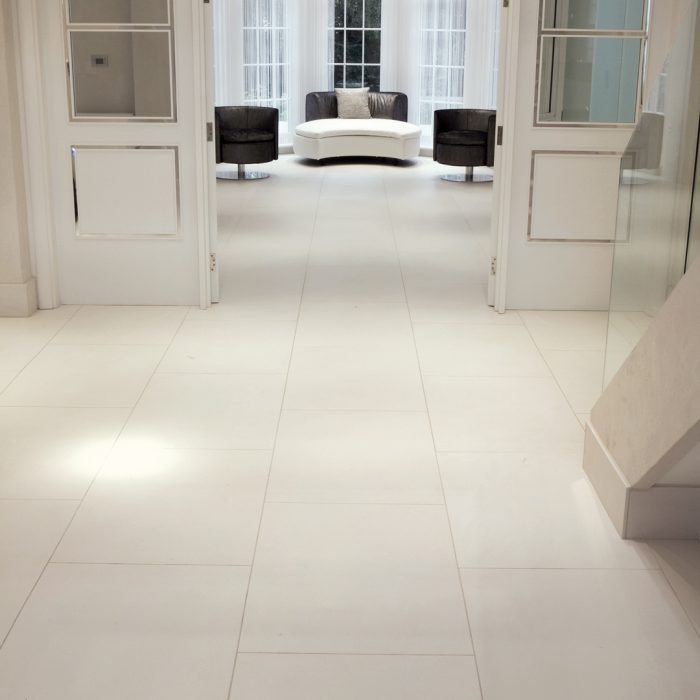

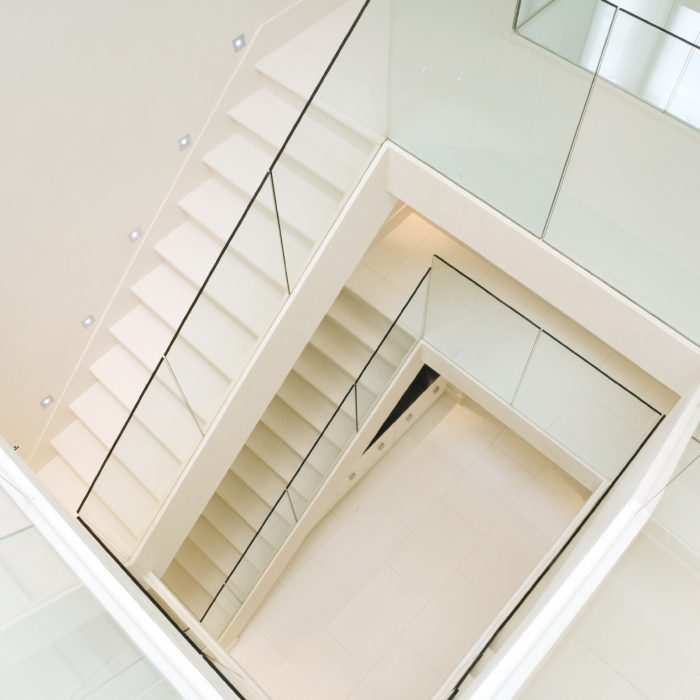

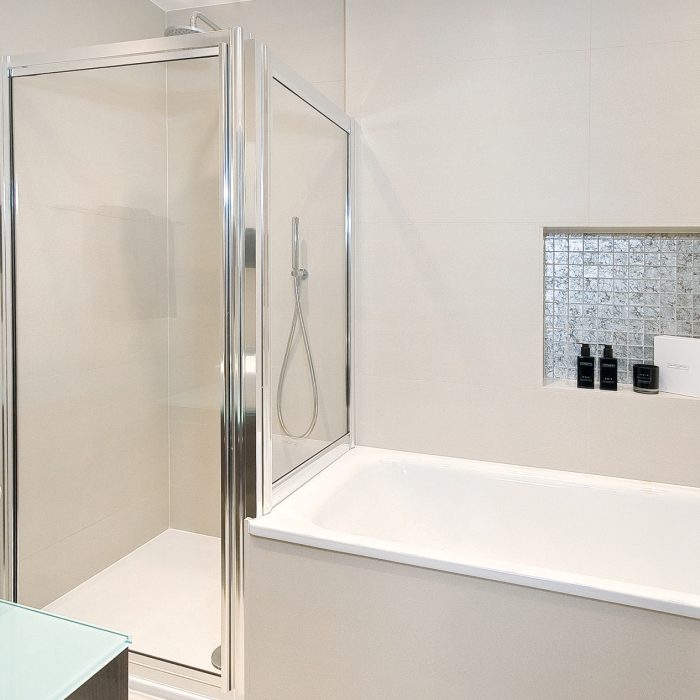

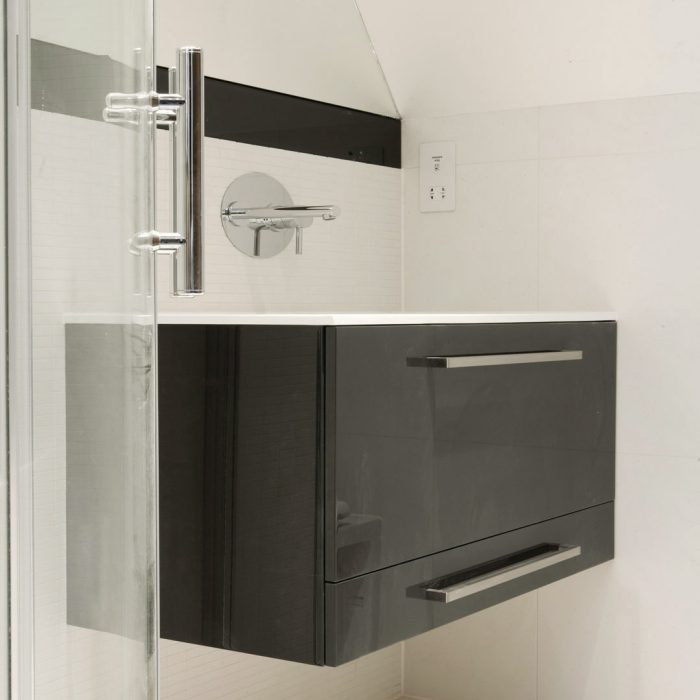

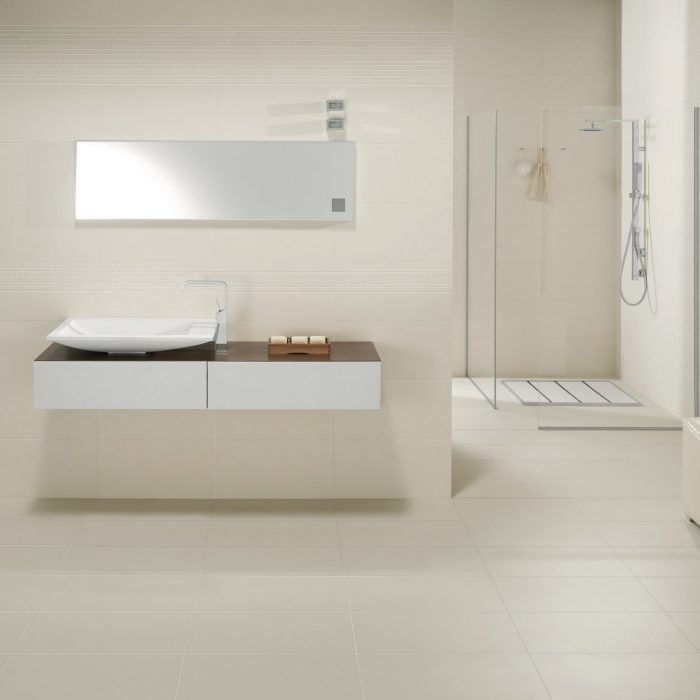

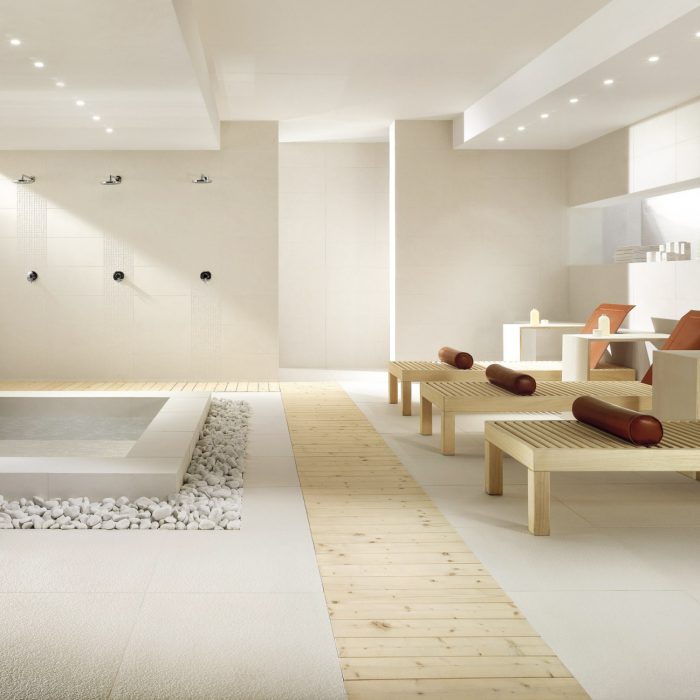

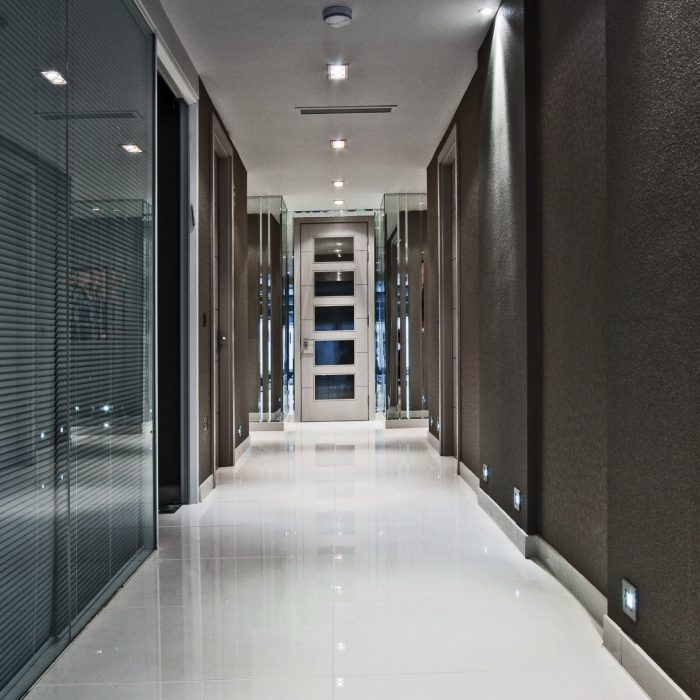

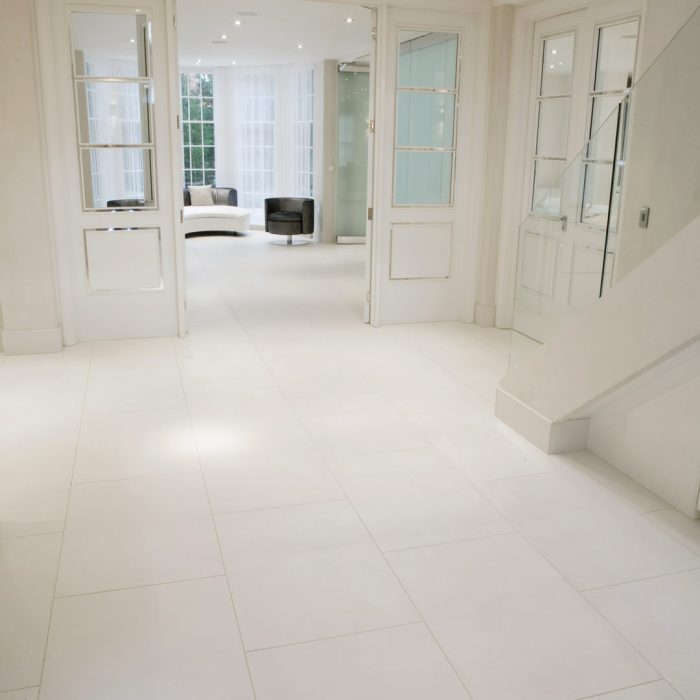

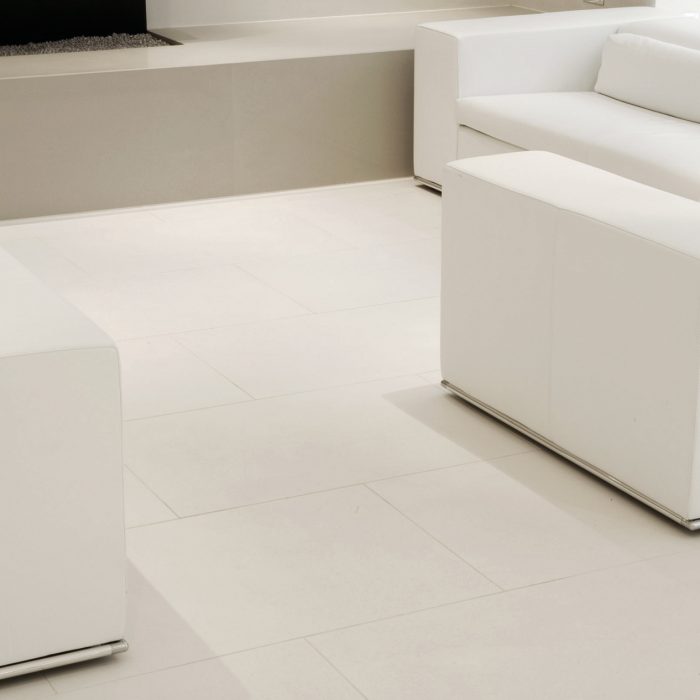

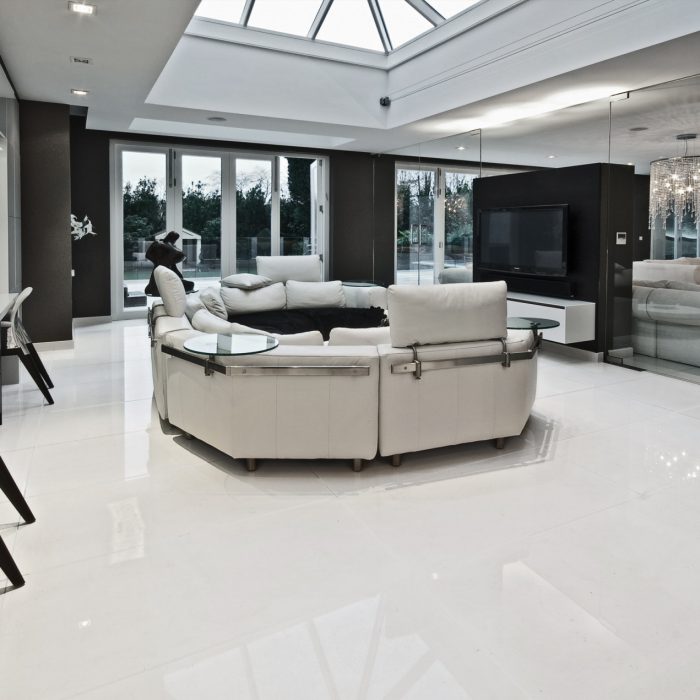

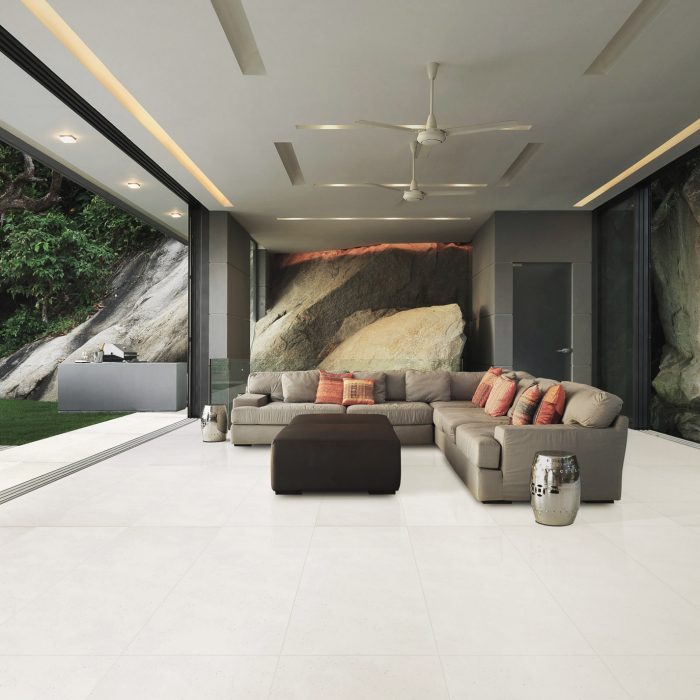

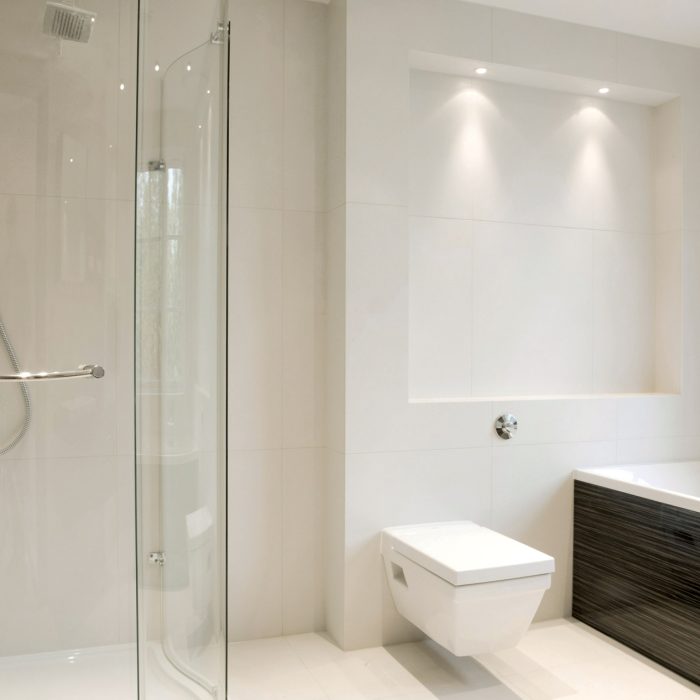

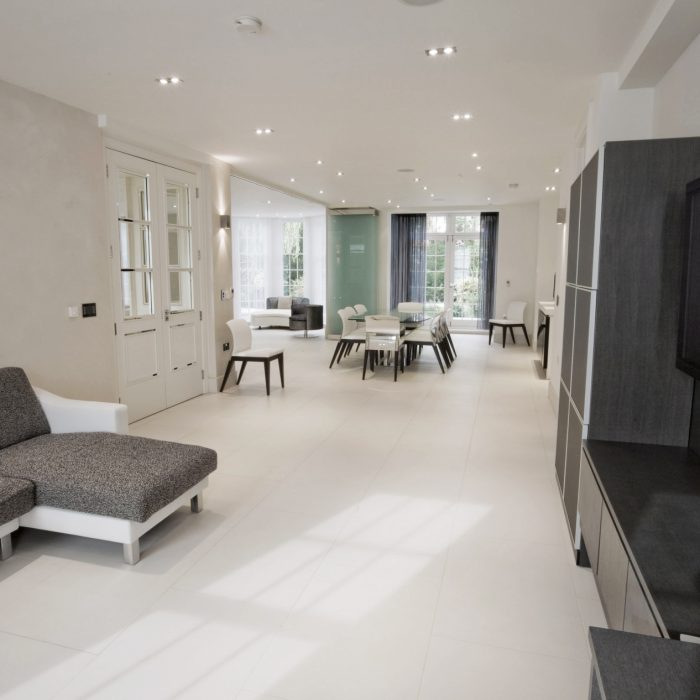

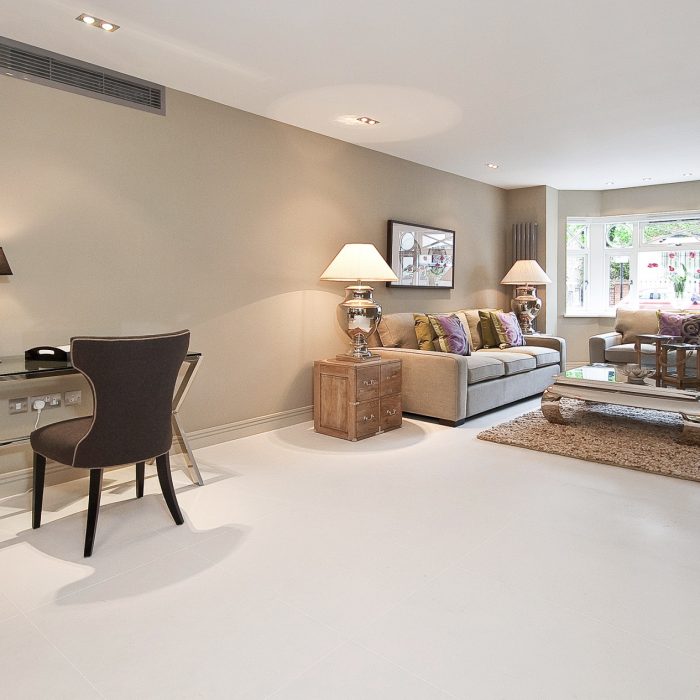

Nuovo Spazio – Polished Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio and Exquisite – Platinum Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio (Polished) Nuovo Spazio (Structured) Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio (Polished) Nuovo Spazio (Natural, Structured) Nuovo Spazio Nuovo Spazio Nuovo Spazio Nuovo Spazio
Size & finish
|Nuovo Spazio||Natural (R10)||600 x 1200 x 11|
|Nuovo Spazio||Polished||600 x 1200 x 12|
|Nuovo Spazio||Structured (R10)||600 x 1200 x 12|
|Nuovo Spazio||Natural (R9)||600 x 900 x 11|
|Nuovo Spazio||Structured (R10)||600 x 900 x 11|
|Nuovo Spazio||Polished||600 x 600|
|Nuovo Spazio||Natural (R10)||600 x 600 x 10|
|Nuovo Spazio||Polished||600 x 600 x 10|
|Nuovo Spazio||Structured (R11)||600 x 600 x 10|
|Nuovo Spazio||Structured (R10)||600 x 600 x 12|
|Nuovo Spazio||Natural (R10)||300 x 600 x 10|
|Nuovo Spazio||Polished||300 x 600 x 10|
|Nuovo Spazio||Structured (R11)||300 x 600 x 10|
|Nuovo Spazio||Structured (R10)||300 x 600 x 12|
|Nuovo Spazio||Natural (R9)||150 x 600 x 12|
The Nuovo Spazio Range is also available in the following colours and finishes:
In addition to Nuovo Spazio, we also offer a number of other stone-effect porcelain tiles in beige.
Special Pieces & Mosaics
|Brick Mosaic||Nuovo Spazio||Natural||300 x 300 x 10|
|Brick Mosaic||Nuovo Spazio||Structured||300 x 300 x 10|
|Mosaic (23x23mm)||Nuovo Spazio||Natural||300 x 300 x 10|
|Mosaic (23x23mm)||Nuovo Spazio||Structured||300 x 300 x 10|
|Romanesque||Nuovo Spazio||Natural||300 x 300 x 10|
|Romanesque||Nuovo Spazio||Structured||300 x 300 x 10|
|Skirting Tile||Nuovo Spazio||Natural||90 x 600 x 10|
|Skirting Tile||Nuovo Spazio||Natural||90 x 300 x 10|
|Step Tile - Gradone||Nuovo Spazio||Natural||300 x 600 x 30|
|Step Tile - Gradone||Nuovo Spazio||Natural||300 x 300 x 30|
|Step Tile - Gradone Angolare||Nuovo Spazio||Natural||300 x 300 x 30|
|Step Tile - Gradone Angolare DX||Nuovo Spazio||Natural||300 x 600 x 30|
|Step Tile - Gradone Angolare SX||Nuovo Spazio||Natural||300 x 600 x 30|
|Step Tile B+R||Nuovo Spazio||Natural||300 x 900 x 10|
|Step Tile B+R||Nuovo Spazio||Natural||300 x 600 x 10|
|Step Tile B+R||Nuovo Spazio||Structured||300 x 600 x 10|
|Step Tile B+R||Nuovo Spazio||Natural||300 x 300 x 10|
|Step Tile B+R||Nuovo Spazio||Structured||300 x 300 x 10|
Shade Tone Variance
Nuovo Spazio has been classified:
Understanding Shade Tone Variance
Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.
Ramp Test Values (DIN 51130)
|Finish/Style||R Rating Value||Friction|
|See Sizes and Specification||R9|
|See Sizes and Specification||R10|
|See Sizes and Specification||R11|
Understanding Ramp Test Data
DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.
We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.
|R Rating Value||Friction|
See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.
|Specification||Test Methods||Required value||Manufacturers value|
|Length and Width||ISO 10545-2||± 0.6%||± 0.2%|
|Thickness||ISO 10545-2||± 5%||± 5%|
|Linearity||ISO 10545-2||± 0.5%||± 0.5%|
|Wedging||ISO 10545-2||± 0.6%||± 0.2%|
|Warpage||ISO 10545-2||± 0.5%||± 0.2%|
|Water Absorbtion||ISO 10545-3||≤ 0.5%||0.04%|
|Flexion resistance||ISO 10545-4||≥ 35 N/mm²||56 N/mm²|
|Deep Abrasion Resistance||ISO 10545-6||Max 175mm³||128mm³|
|Coefficient of Linear Thermal-Expansion||ISO 10545-8||On Request||On Request|
|Termal shock resistance||ISO 10545-9||No sample must show visible defects||Resistant|
|Frost Resistance||ISO 10545-12||Must not produce noticeable alteration to surface||Frost-proof|
|Chemical Resistance||ISO 10545-13||Must not produce noticable signs of chemical attack||Resistant|
|Friction coefficient (slipperiness)||DIN 51130||Test method available||See Sizes and Specification Table|
Download PDF Catalogue
You can download the Nuovo Spazio PDF catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email firstname.lastname@example.org for more information about our Italian porcelain tiles.
Ordering tile samples
To order Nuovo Spazio – Polished tile samples please click this order button:
To review your items or to complete your order simply click on the white tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.
Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.
Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.
Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.
LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.
The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.
All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.
The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.
The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
