Nuovo Spazio Structured R Finish

Sizes

See Sizes and Specification

R9

See Sizes and Specification

R10

See Sizes and Specification

R11

variation

V2

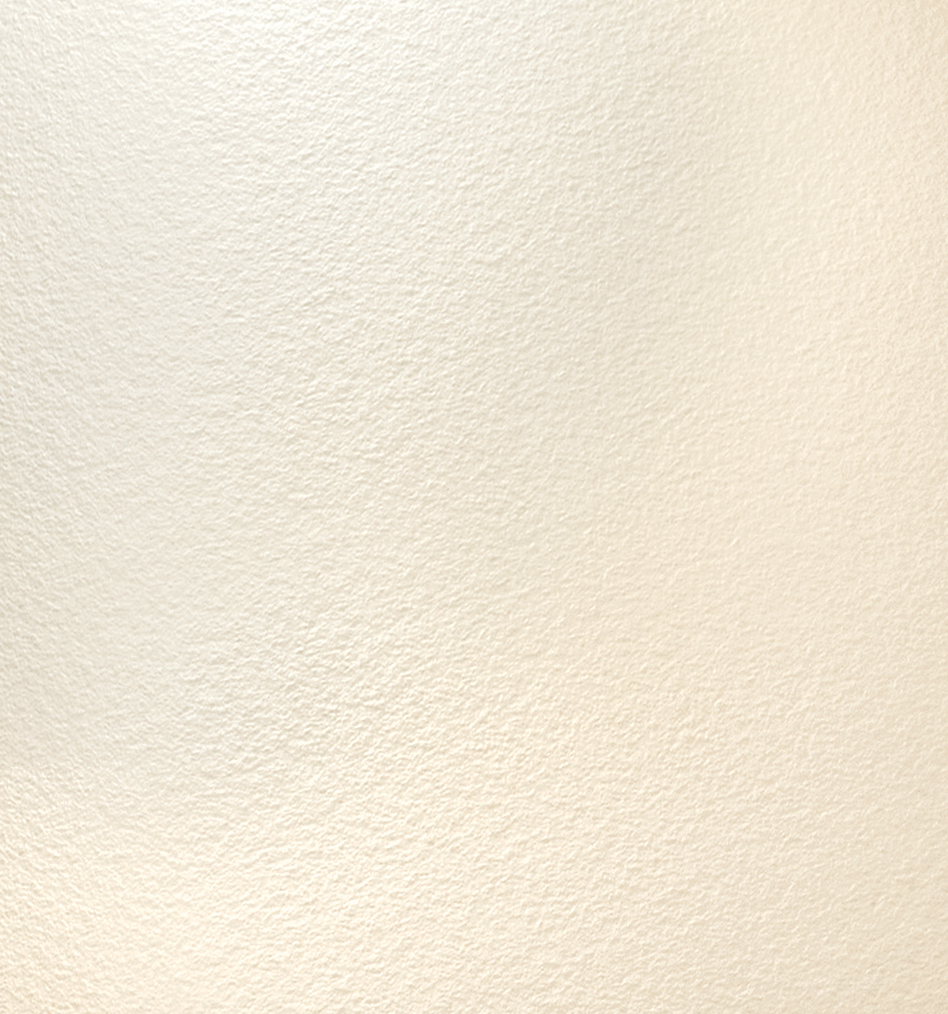

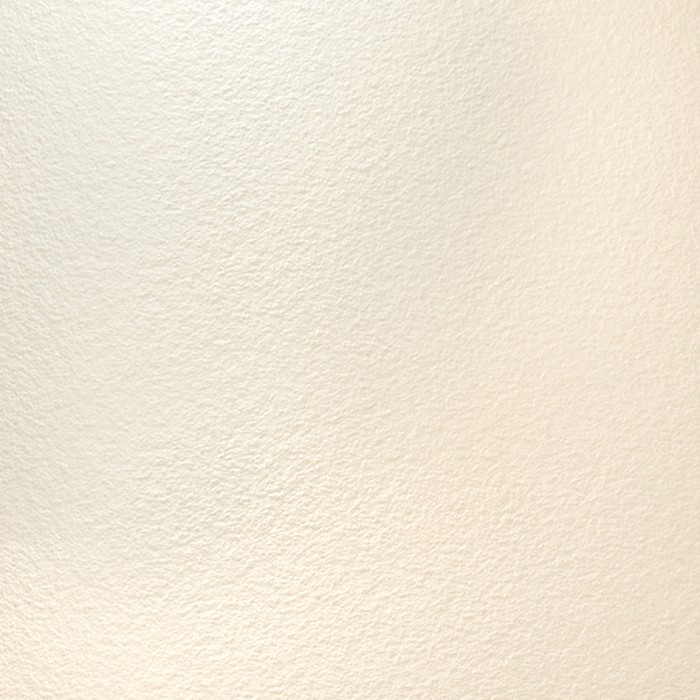

Nuovo Spazio Structured R is a stone-effect porcelain tile and forms part of our Nuovo Spazio Range. This tile is offered with a finish. To order a Nuovo Spazio Structured R tile sample in finish click the Order Sample button below.

Nuovo Spazio Structured R Product Story

The clean, airy feeling of this white range makes it a favourite among designers and architects who want minimalist simplicity with warmth and personality. Special pieces like the rough brick mosaic complement the range beautifully by adding texture. With natural, polished or structured finishes, this range can be used indoors or out and is perfect for wet areas such as pools, spas and bathrooms. Nuovo Spazio Structured R is part of our Stone-effect Collection.

Size & finish

ColourFinishSize(MM)
Nuovo SpazioNatural (R10)600 x 1200 x 11
Nuovo SpazioPolished600 x 1200 x 12
Nuovo SpazioStructured (R10)600 x 1200 x 12
Nuovo SpazioNatural (R9)600 x 900 x 11
Nuovo SpazioStructured (R10)600 x 900 x 11
Nuovo SpazioPolished600 x 600
Nuovo SpazioNatural (R10)600 x 600 x 10
Nuovo SpazioPolished600 x 600 x 10
Nuovo SpazioStructured (R11)600 x 600 x 10
Nuovo SpazioStructured (R10)600 x 600 x 12
Nuovo SpazioNatural (R10)300 x 600 x 10
Nuovo SpazioPolished300 x 600 x 10
Nuovo SpazioStructured (R11)300 x 600 x 10
Nuovo SpazioStructured (R10)300 x 600 x 12
Nuovo SpazioNatural (R9)150 x 600 x 12

Related Tiles

In addition to Nuovo Spazio Structured R, we also offer a number of other beige stone-effect porcelain tiles.

Discover similar tiles

Alternative Colours

The Nuovo Spazio Range is also available in the following colours and finishes:

  • Nuovo Spazio – Natural (R9)
    Nuovo Spazio – Natural (R9)
  • Nuovo Spazio – Polished
    Nuovo Spazio – Polished
  • Nuovo Spazio – Structured (R10)
    Nuovo Spazio – Structured (R10)
  • Nuovo Spazio – Structured (R11)
    Nuovo Spazio – Structured (R11)
  • Nuovo Spazio – Natural (R10)
    Nuovo Spazio – Natural (R10)

Special Pieces & Mosaics

DetailColourFinishSize(MM)
Brick MosaicNuovo SpazioNatural300 x 300 x 10
Brick MosaicNuovo SpazioStructured300 x 300 x 10
Mosaic (23x23mm)Nuovo SpazioNatural300 x 300 x 10
Mosaic (23x23mm)Nuovo SpazioStructured300 x 300 x 10
RomanesqueNuovo SpazioNatural300 x 300 x 10
RomanesqueNuovo SpazioStructured300 x 300 x 10
Skirting TileNuovo SpazioNatural90 x 600 x 10
Skirting TileNuovo SpazioNatural90 x 300 x 10
Step Tile - GradoneNuovo SpazioNatural300 x 600 x 30
Step Tile - GradoneNuovo SpazioNatural300 x 300 x 30
Step Tile - Gradone AngolareNuovo SpazioNatural300 x 300 x 30
Step Tile - Gradone Angolare DXNuovo SpazioNatural300 x 600 x 30
Step Tile - Gradone Angolare SXNuovo SpazioNatural300 x 600 x 30
Step Tile B+RNuovo SpazioNatural300 x 900 x 10
Step Tile B+RNuovo SpazioNatural300 x 600 x 10
Step Tile B+RNuovo SpazioStructured300 x 600 x 10
Step Tile B+RNuovo SpazioNatural300 x 300 x 10
Step Tile B+RNuovo SpazioStructured300 x 300 x 10

Technical Specification

Shade Tone Variance

Nuovo Spazio has been classified: V2 variation

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Ramp Test Values (DIN 51130)

Finish/StyleR Rating ValueFriction
See Sizes and SpecificationR9
See Sizes and SpecificationR10
See Sizes and SpecificationR11

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

SpecificationTest MethodsRequired valueManufacturers value
Length and WidthISO 10545-2± 0.6%± 0.2%
ThicknessISO 10545-2± 5%± 5%
LinearityISO 10545-2± 0.5%± 0.5%
WedgingISO 10545-2± 0.6%± 0.2%
WarpageISO 10545-2± 0.5%± 0.2%
Water AbsorbtionISO 10545-3≤ 0.5%0.04%
Flexion resistanceISO 10545-4≥ 35 N/mm²56 N/mm²
Deep Abrasion ResistanceISO 10545-6Max 175mm³128mm³
Coefficient of Linear Thermal-ExpansionISO 10545-8On RequestOn Request
Termal shock resistanceISO 10545-9No sample must show visible defectsResistant
Frost ResistanceISO 10545-12Must not produce noticeable alteration to surfaceFrost-proof
Chemical ResistanceISO 10545-13Must not produce noticable signs of chemical attackResistant
Friction coefficient (slipperiness)DIN 51130Test method availableSee Sizes and Specification Table

Download PDF Catalogue

You can download the Nuovo Spazio PDF catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.

Ordering tile samples

To order Nuovo Spazio – Structured (R11) tile samples please click this order button:

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.

Environmentally Certified

Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.

Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.

LEED® certification

LEED<sup>®</sup> certified

LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
