Specification & Countertop Performance

Technical Performance
Due to the unrivalled technical performance of porcelain, high temperatures and sudden thermal changes do not affect the surface, so hot pots and pans can be safely placed on its surface. Porcelain tile surfaces are resistant to high temperatures and thermal shock in accordance with European Standard EN14617, to wet heat in line with European Standard EN12721, and to dry heat in line with European Standard EN12722.

Kitchen countertops need to perform under extreme conditions. They are constantly exposed to potential scratches and scores from sharp or pointed tools. It is under these intensive conditions that porcelain excels, exhibiting one of the hardest surfaces available on the market, and maintaining a perfect surface that will not fade, or discolour or deteriorate over time. And where wood, laminate and quartz countertops suffer continual damage from scratching, porcelain’s tough surface can withstand daily wear and tear.

Scientific evidence has demonstrated that porous materials foster bacterial proliferation more than non-porous materials. As porcelain is a compact, non-porous material, it is particularly suitable for food preparation surfaces in the kitchen, and other situations sensitive to hygiene. Porcelain is also NSF certified, meeting the highest standards for safety, quality, sustainability or performance.

Porcelain is extremely compact and non-porous, not allowing liquid or air to pass through it. This makes it the ideal choice for kitchen countertops. As the material is impenetrable, even the most difficult stains can be easily removed: not only oil, wine, sauces and coffee, but also acidic substances such as lemon, vinegar or residues of detergents. These substances can be easily wiped off without the use of chemical products. This reduces the environmental impact further as chemical products are no longer required. View more in the video below.

Cooking Top Applications

High performance porcelain stoneware countertops have been designed to perform under extreme conditions suitable for all cooking top technologies.

Induction Cooktop Technology

Combined with induction cooktop technology, porcelain countertops provide a clean invisible cooking surface. With induction burners installed directly beneath your countertop, their magnetic field heats the pan directly rather than heating the surface.

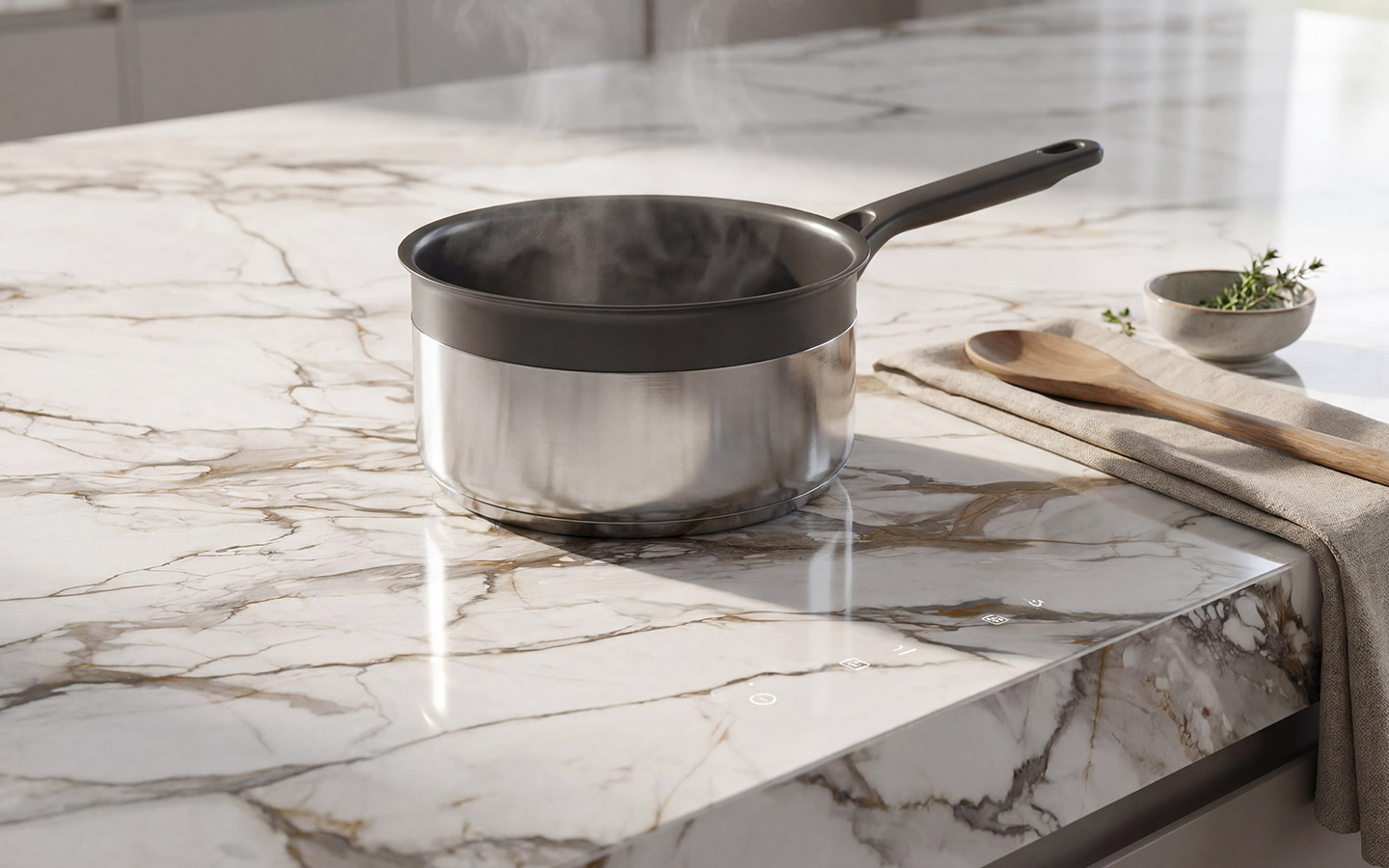

Induction technology with under-counter mounted burners

High precision CNC cutting can accommodate the latest touch displays and control buttons and provide space for the largest professional cooktops.

Flush-mounted controls

Because the surface remains cool, with only residual heat from the pan, there’s no burnt-on food and the area remains available as counter space when you are not cooking.

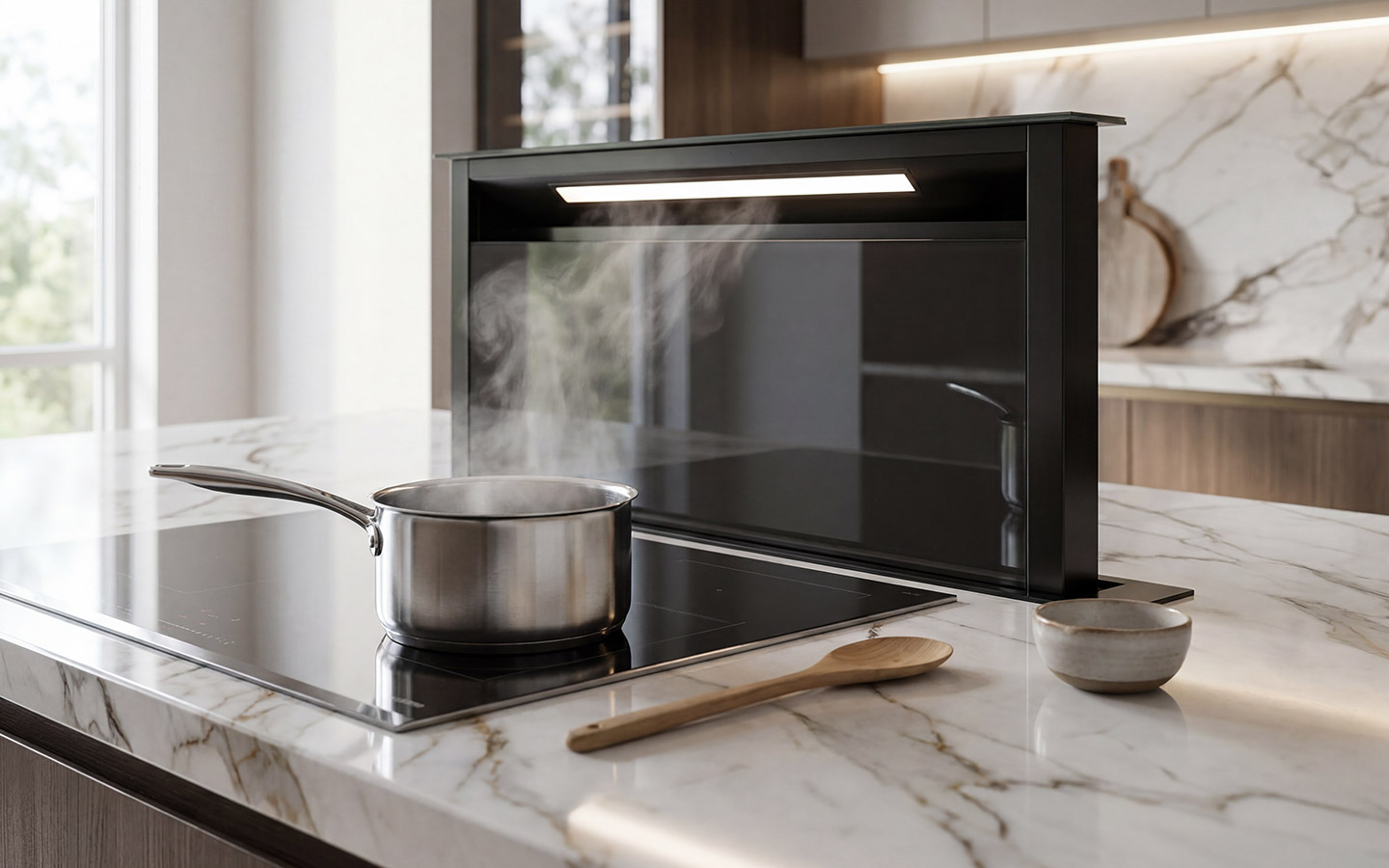

Flush-mounted induction cooktop with downdraft ventilation





Modular Cooktops

Design the cooking area into your ideal culinary scenario by seamlessly integrating modular appliances such as Tepanyaki, induction woks, deep-fat fryers, griddle plates, barbecue grills and countertop extractors.

Ideal for integrated modular appliances





Single Gas Burners

While fully bespoke layouts can be created both for the home and the professional kitchen, with single gas burners installed directly onto the worktop. Pair with a table or downdraft ventilation solution for fully contained islands.

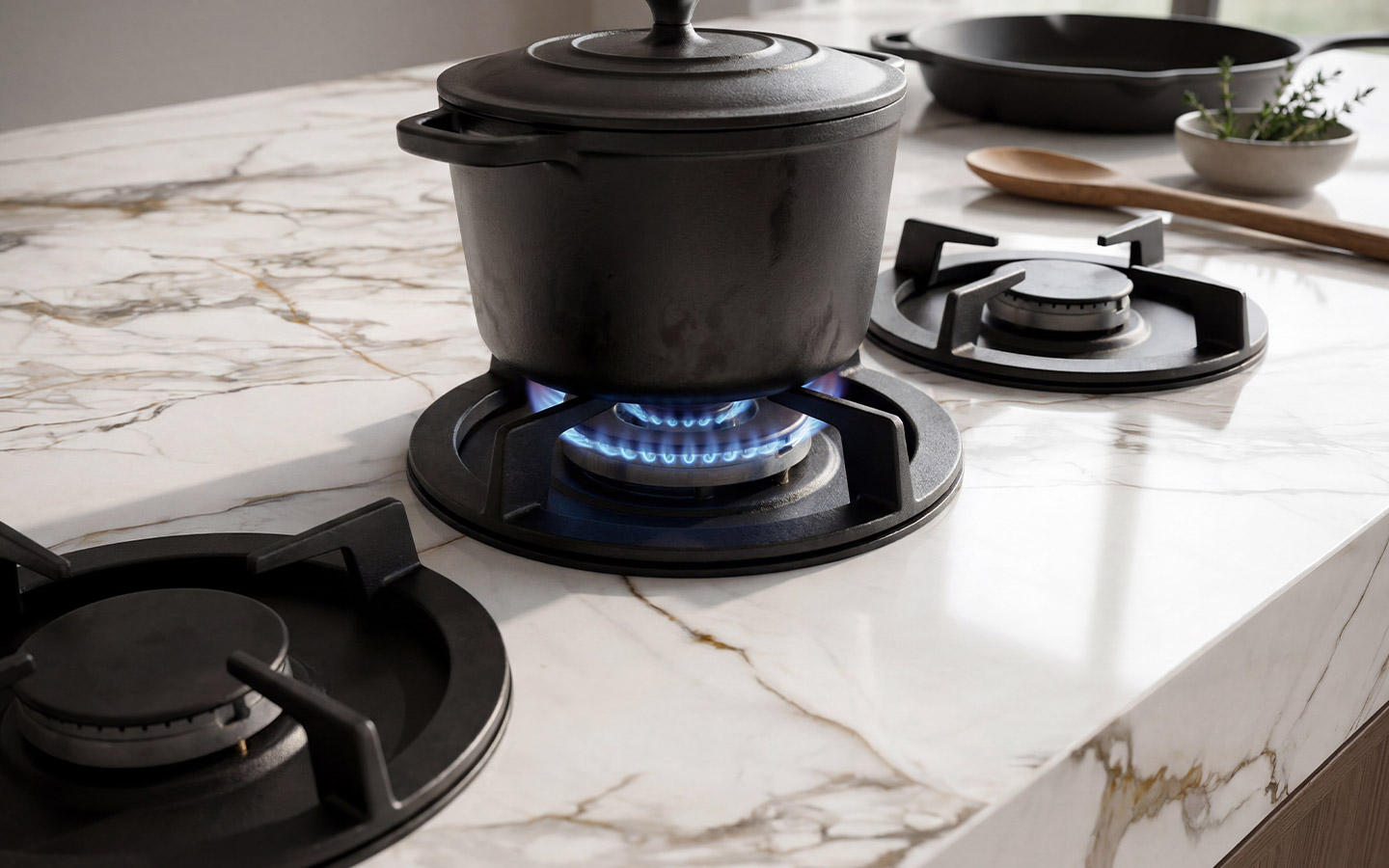

Bespoke single gas burner layout





Surface Cooktops & Hobs

Porcelain countertops can be specified for use with framed or frameless appliances offering a streamlined designer look with professional grade capability. And with over 150 colours that can be continued across splashbacks, walls and floors for one uniform design, you can create a kitchen that delivers on both the aesthetic and functional experience.

Surface-mounted gas hob

CNC cut induction hot plates

Dimensions

Dimensions (cm) 300 x 150
150 x 150
75 x 150
328 x 154 328 x 154
Thickness (mm) 6 12 20
Weight 14 kg per m2 28 kg per m2 47 kg per m2
Rectified
Specification
Test Method Required Value Result
Water absorption ISO 10545-3 ≤ 0.5 % TM12: 0.02%

TM6 Natural: 0.03% – 0.06%

TM6 Polished: 0.05% – 0.08%
Deep abrasion resistance ISO 10545-6 ≤ 175 mm³ TM6: 140 mm³

TM12: 127mm³
Stain resistance ISO 10545-14 Testing method available Class 5 (Resistant to stain)
Resistance to chemical products ISO 10545-13 Minimum Class B Conforms
Resistance to thermal shocks ISO 10545-9 Testing method available Resistant
Frost resistance ISO 10545-12 No sample must show alterations to surface Frost proof
Glossary of terms
This glossary serves as a reference for the technical data listed above and contains data provided by the International Organisation for Standardisation (ISO).
Water absorption ISO 10545-3
  Low Density
Dry pressed tile with a water absorption rate of more than 7%
  Medium Density
Dry pressed tile with a water absorption rate between 3% and 7%
  High Density
Dry pressed tile with a water absorption rate between 0.5% and 3%
  Extreme Density
Dry pressed tile with water absorption of 0.5% or less. This is where porcelain stoneware is categorised.
Deep abrasion resistance ISO 10545-6
This is a scale of hardness ranging from 1 to 10 used to determine a material’s scratch resistance. The Mohs scale uses ten fairly common minerals of known hardness and gives each of them a relative value of 1-10. Each mineral in the scale will scratch those with lesser values and will not scratch those with higher values. Porcelain stoneware is considered to have a Mohs rating of 8.
Mohs scale Mineral Countertop surface
1
2
3
4
5
6
7
8
9
10
Talc
Gypsum
Calcite
Fluorite
Apatite
Feldspar
Quartz
Topaz
Corundum
Diamond
Vinyl
Wood countertops
Marble countertops, Laminate countertops
Marble countertops, Bauxite countertops (Corian)
Granite countertops
Granite countertops, Stainless steel blade
Quartz or Quartzite countertops
Porcelain countertops
No countertop is this hard
No countertop is this hard
Stain resistance ISO 10545-14
This test measures the resistance to staining of a surface. Staining tests are achieved by prolonged exposure of the surface to test solutions and dry staining agents. The surface is visually evaluated after the staining agent has been cleaned off using a combination of cleaning procedures.
Class 1
Class 2
Class 3
Class 4
Class 5
Stain is not removed
The stain is removed using solvent, such as acetone
The stain is removed using a strong commercial cleaning agent
The stain is removed using a weak commercial cleaning agent
The stain is removed using hot water
Frost resistance ISO 10545-12
Frost resistance determines whether or not a tile is suitable for outdoor applications in colder climates. When a tile absorbs a large quantity of water and the volume increases from freezing, the tile can break. This test consists of soaking the tiles in water and subjecting them to temperature cycles from +51˚C to -51˚C (+123.8˚F to -59.8˚F). All sides of the tiles are exposed to freezing over 100 freeze-thaw cycles.
