Lucerne Grip Finish

Sizes

Natural

R9

Grip, Structured

R11

Variation

V3

Variation

V4

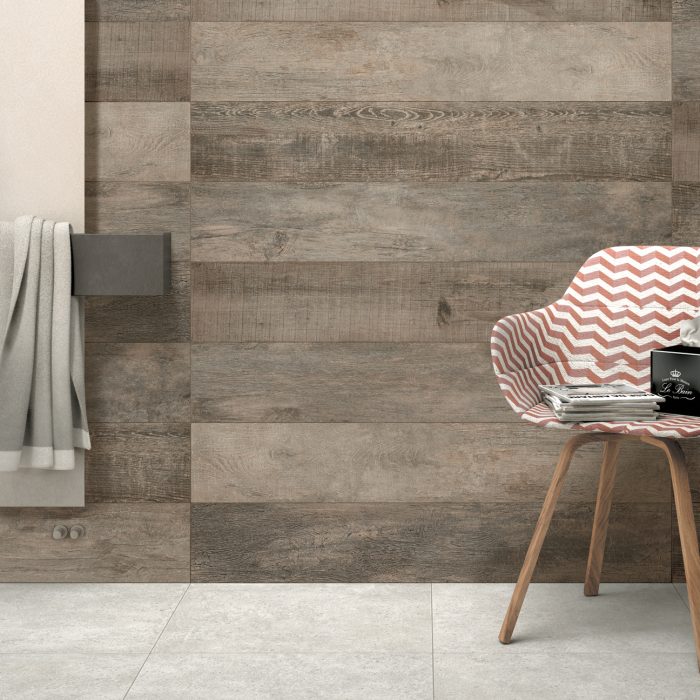

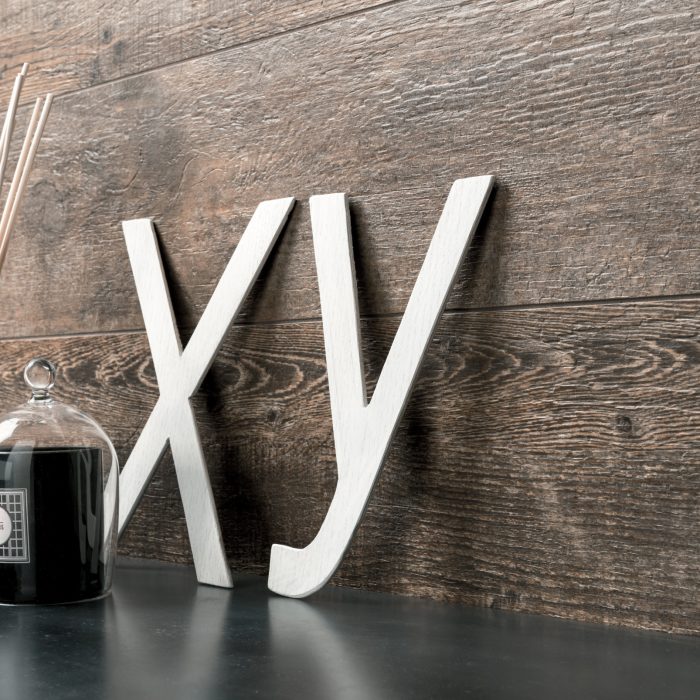

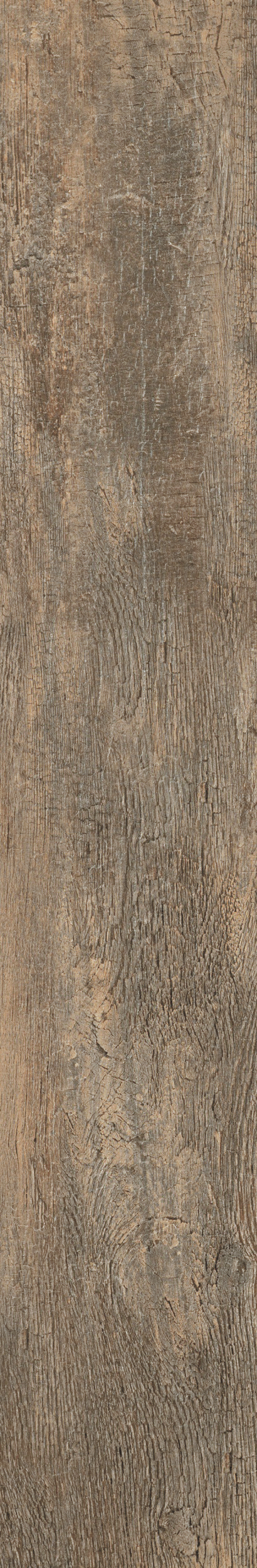

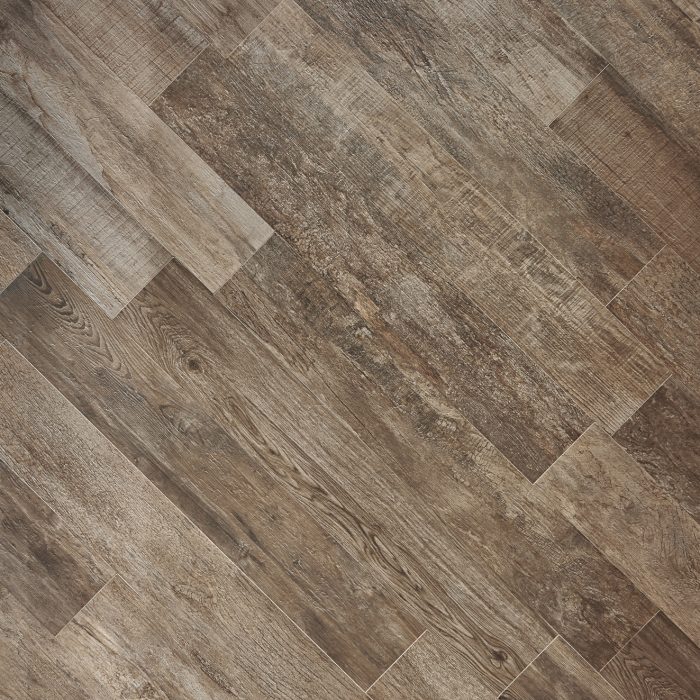

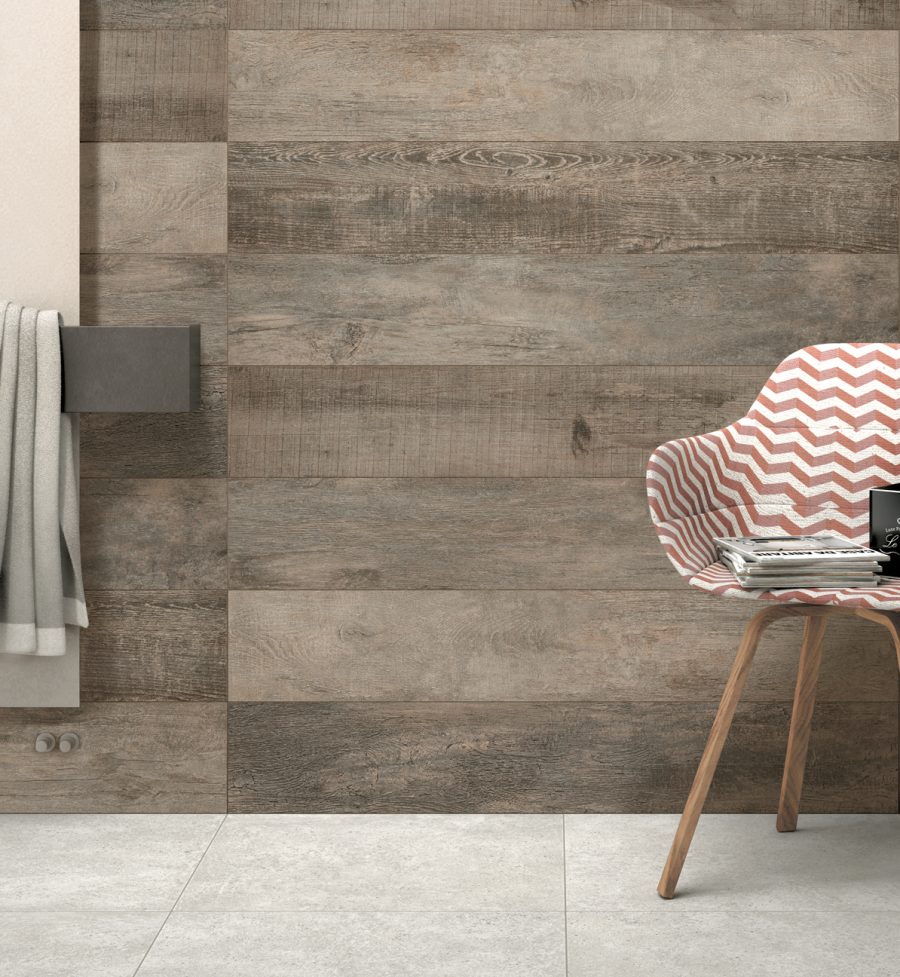

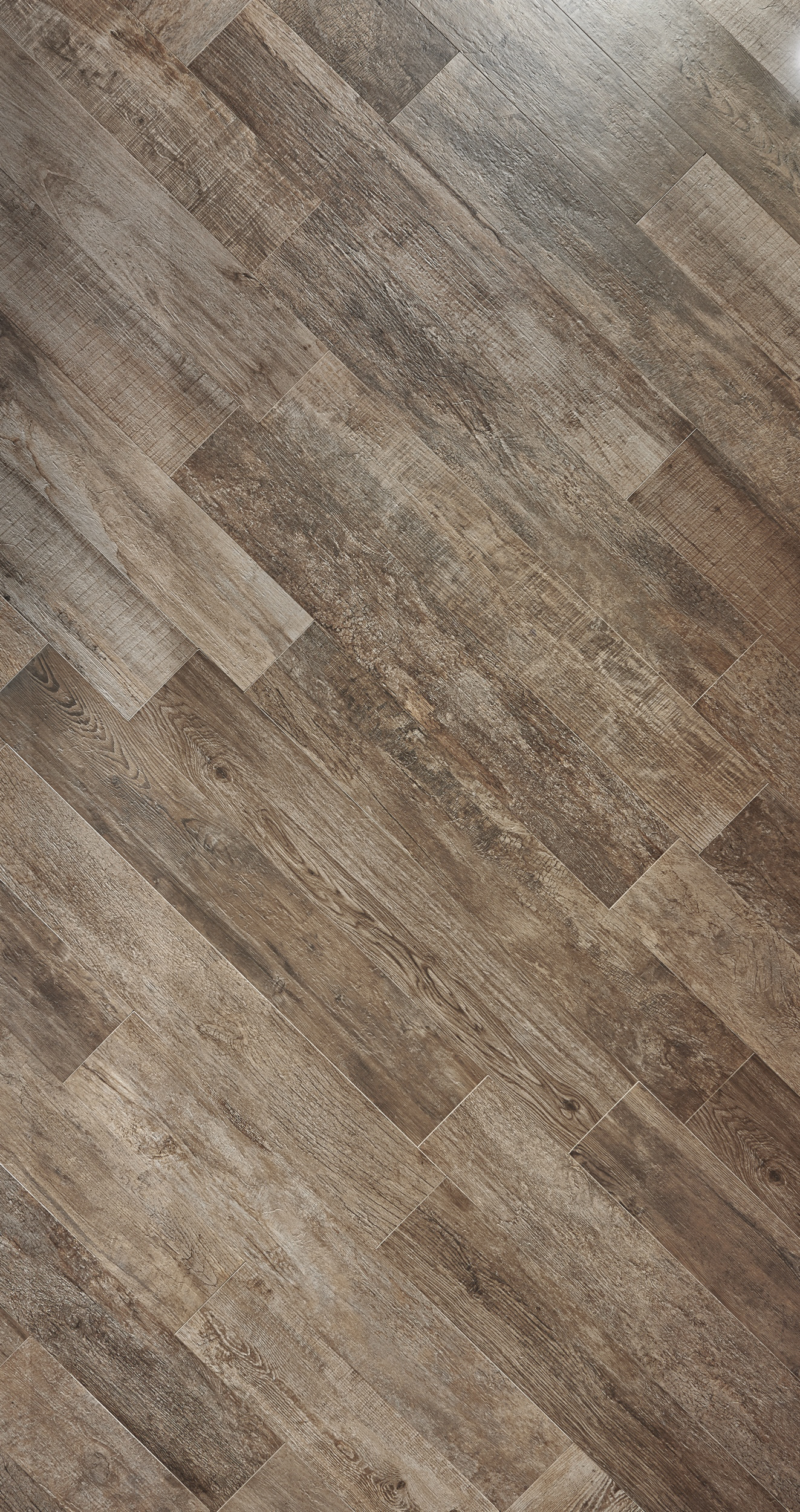

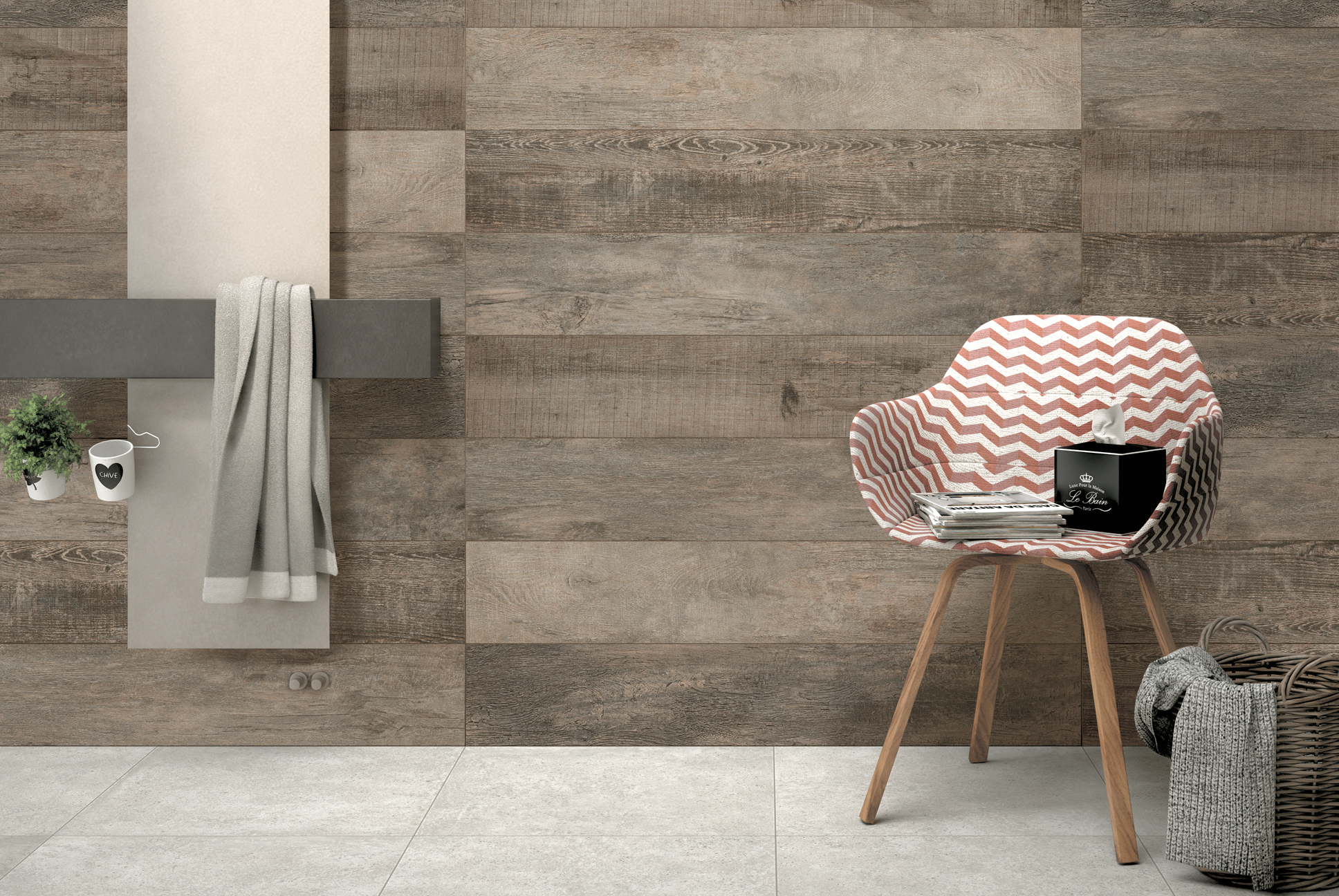

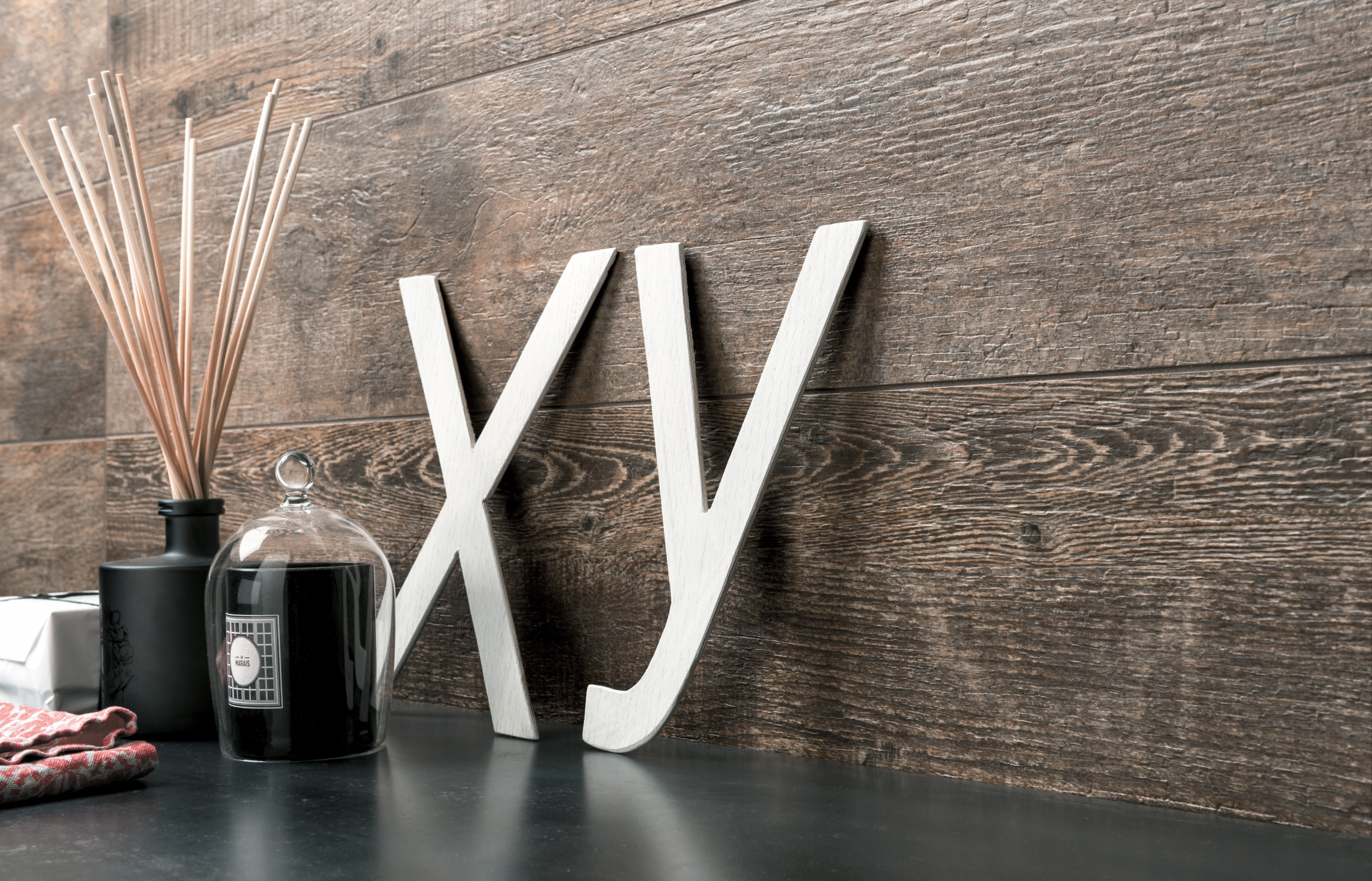

Lucerne is a wood-effect porcelain tile and forms part of our Corteccia Range. This tile is offered with a Grip finish. To order a Lucerne tile sample in Grip finish click the Order Sample button below.

Lucerne Product Story

Corteccia displays the intricate graining, texture and knotting of genuinely aged timber and is suitable for internal and external projects. A solid wood-effect porcelain tile, Corteccia is available in two large floorboards in Natural, Grip and Structured finishes and provides excellent aesthetics combined with the superior technical performance of porcelain. The 300 x 1200 mm floorboard has a 20 mm thickness, and with its Grip finish is ideal for outdoor living areas and low-maintenance landscaping. A square 600 x 600 mm board works well for larger open spaces, while a Chevron option completes the extensive laying possibilities. With five rustic colours, Corteccia is ideal for flooring and wall panelling and projects where underfloor heating or a low maintenance, sustainable hardwood is required. Lucerne is part of our Wood-effect Collection.

Size & finish

ColourFinishSize(MM)
Amendo | Lucerne | Morella | SarumGrip300 x 1200 x 20
Amendo | Lucerne | Matisse | Morella | SarumNatural200 x 1200 x 9
Amendo Chevron | Lucerne Chevron | Matisse Chevron | Morella Chevron | Sarum ChevronNatural200 x 1200.00 x 9
Amendo | Lucerne | Matisse | Morella | SarumStructured200 x 1200 x 9
Amendo | Lucerne | Morella | SarumGrip197 x 1200 x 20
Amendo | Lucerne | MorellaGrip600 x 600 x 20

Alternative Colours

The Corteccia Range is also available in the following colours and finishes:

  • Amendo – Structured
    Amendo – Structured
  • Amendo – Grip
    Amendo – Grip
  • Amendo – Natural
    Amendo – Natural
  • Lucerne – Grip
    Lucerne – Grip
  • Lucerne – Structured
    Lucerne – Structured
  • Lucerne – Natural
    Lucerne – Natural
  • Matisse – Natural
    Matisse – Natural
  • Matisse – Structured
    Matisse – Structured
  • Morella – Natural
    Morella – Natural
  • Morella – Structured
    Morella – Structured
  • Morella – Grip
    Morella – Grip
  • Sarum – Structured
    Sarum – Structured
  • Sarum – Natural
    Sarum – Natural

Related Tiles

In addition to Lucerne, we also offer a number of other brown wood-effect porcelain tiles.

Discover similar tiles

Special Pieces & Mosaics

ColourFinishSize(MM)Detail
Amendo | Lucerne | Matisse | Morella | SarumNatural72 x 600 x 10Skirting Tile
Amendo | Lucerne | Matisse | Morella | SarumNatural300 x 1200 x 10Step Tile - Gradino A
Amendo | Lucerne | MorellaGrip330 x 600 x 20Unico

Technical Specification

Shade Tone Variance

Corteccia has been classified: V3 Lucerne, Matisse V4 Amendo, Morella, Sarum

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Ramp Test Values (DIN 51130)

Finish/StyleR Rating ValueFriction
NaturalR9
Grip, StructuredR11

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

Physical PropertiesStandard of TestRequired ValueManufacturers Mean Values
SidesEN ISO 10545-2± 0.6% MAX (± 2.0 mm MAX)Complies
ThicknessEN ISO 10545-2± 5.0% MAX (± 0.5 mm MAX)Complies
Straightness of sidesEN ISO 10545-2± 0.5% MAX (± 1.5 mm MAX)Complies
RectangularityEN ISO 10545-2± 0.6% MAX (± 2.0 mm MAX)Complies
Surface flatnessEN ISO 10545-2± 0.5% MAX (± 2.0 mm MAX)Complies
Water absorptionEN ISO 10545-3≤ 0.5%0.04%
Flexion resistanceEN ISO 10545-4S ≥ 700 N (< 7.5 mm)S ≥ 2.500 N
  S ≥ 1.300 N (> 7.5 mm)
  R ≥ 35 N/mm²R ≥ 50 N/mm²
Impact resistanceEN ISO 10545-5DECLARED VALUE0.89
Abrasion resistanceEN ISO 10545-6≤ 175 mm³119 mm³
Coefficient of linear thermal-expansionEN ISO 10545-8Available on Request
Resistance to thermal shocksEN ISO 10545-9PASS ACCORDING EN ISO 10545-1NO DAMAGE
Frost resistanceEN ISO 10545-12PASS ACCORDING EN ISO 10545-1NO DAMAGE
Resistance to chemicalsEN ISO 10545-13UB MIN.Natural: UA ULA UHA; Polished: GA GLA
Resistance to stainsEN ISO 10545-14DECLARED VALUE5
Lead and Cadmium DischargeEN ISO 10545-15DECLARED VALUE< THAN INSTRUMENT LIMIT

For specific certificates, we can provide them on request

Download PDF Catalogue

You can download the Corteccia PDF catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.

Ordering tile samples

To order Lucerne – Grip tile samples please click this order button:

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.

Environmentally Certified

Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.

Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.

LEED® certification

LEED<sup>®</sup> certified

LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
