Ercolano Natural Finish
Sizes

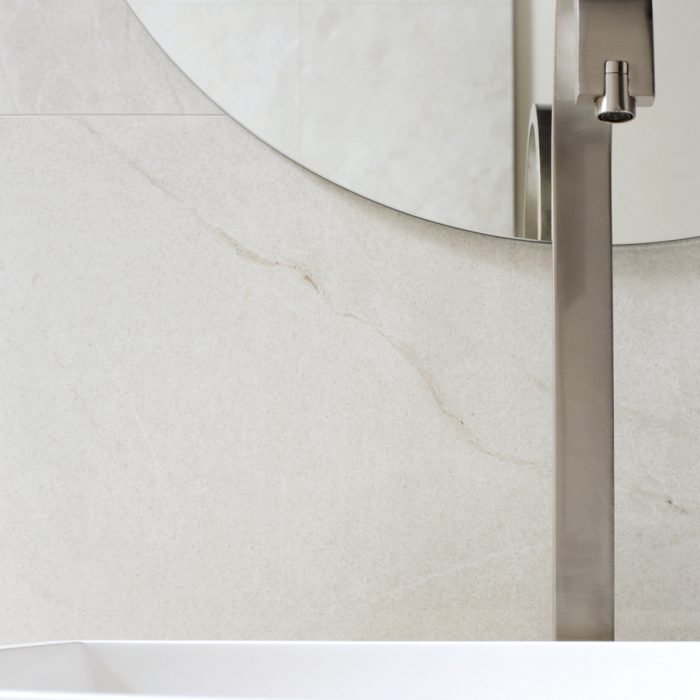

Ercolano is a stone-effect porcelain tile and forms part of our Grandiosa Range. This tile is offered with a Natural finish. To order a Ercolano tile sample in Natural finish click the Order Sample button below.

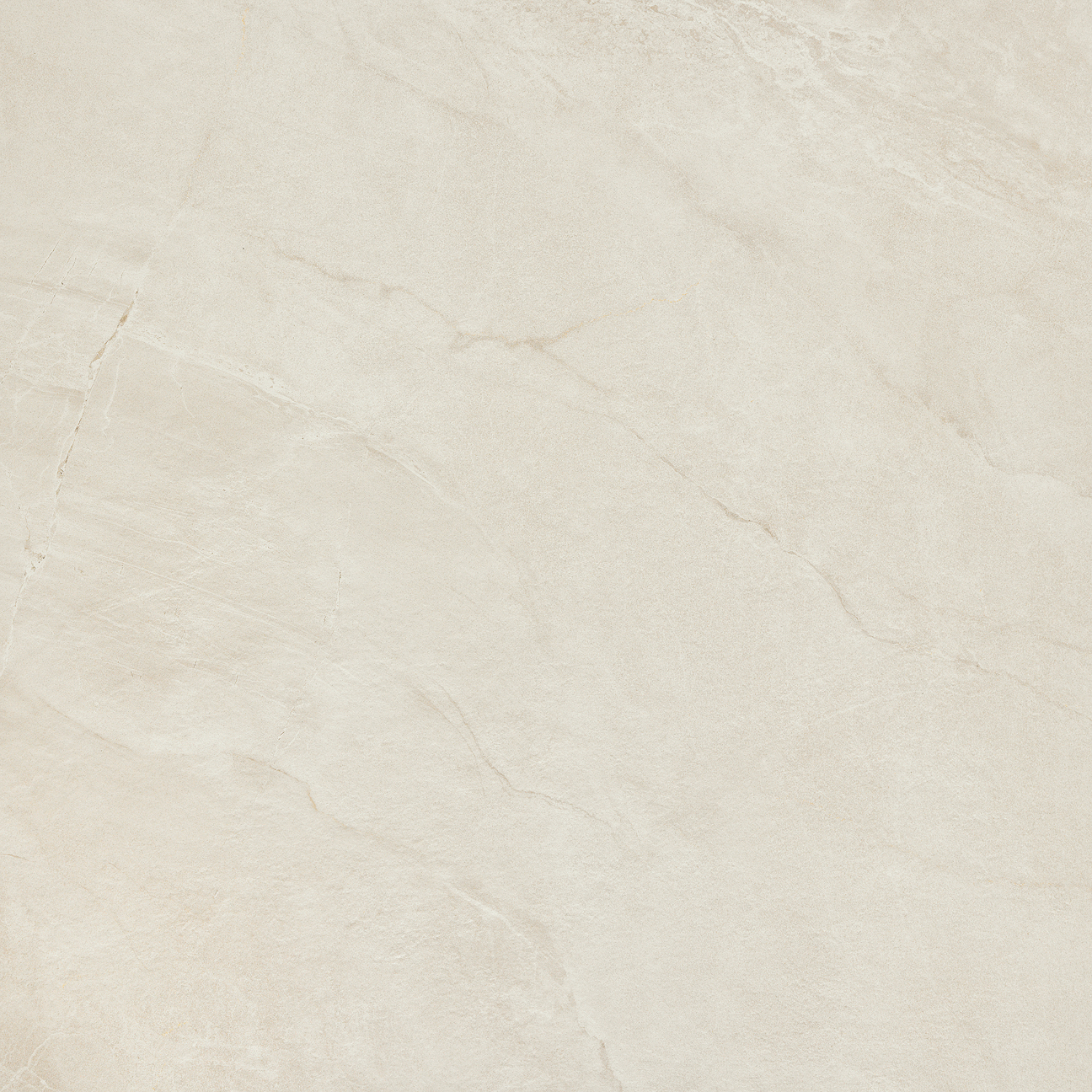

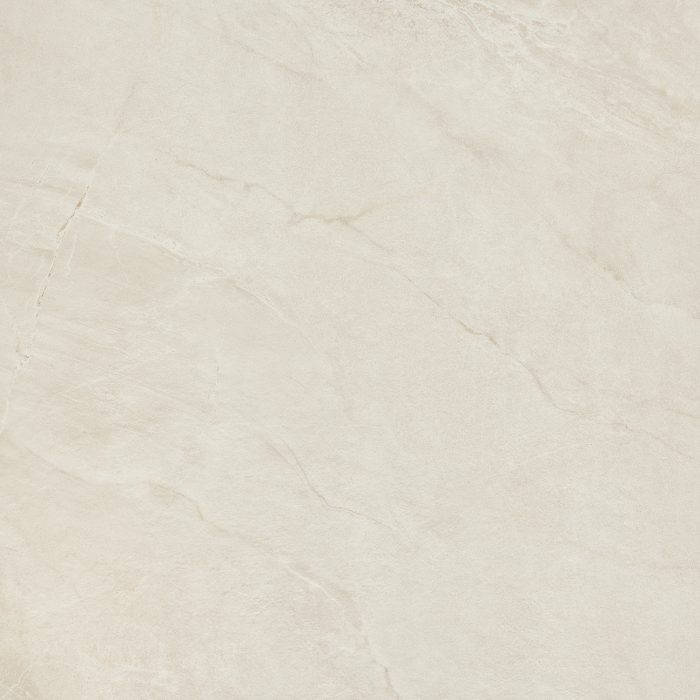

Grandiosa - Ercolano – Natural
Ercolano Product Story
With four on-trend colours, Grandiosa is an avant-garde stone-effect tile that combines beauty with grandeur. The range comes in three distinct finishes, Natural, Honed and Polished, with each offering a particular style of its own. This enables Grandiosa to adapt to the requirements of the scheme, providing designers with the opportunity to create remarkably diverse spaces. For projects requiring something a little bit special, we have introduced a range of accompanying bookmatched pieces. These highly polished decorative pairs feature a perfect mirror image pattern, creating a show-stopping bookmatched effect. Whatever the occasion, Grandiosa is sure to make a dramatic impact. Ercolano is part of our Stone-effect Collection.
Grandiosa – Ercolano Bookmatched
Ercolano

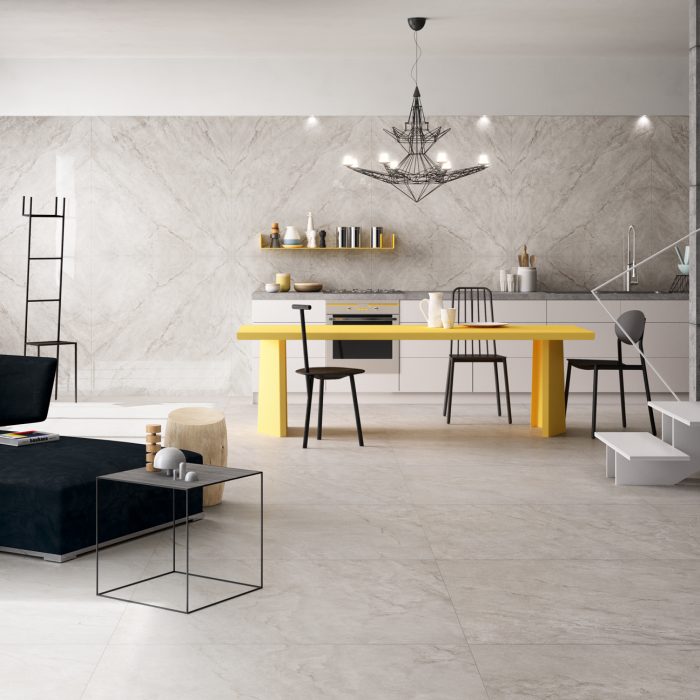

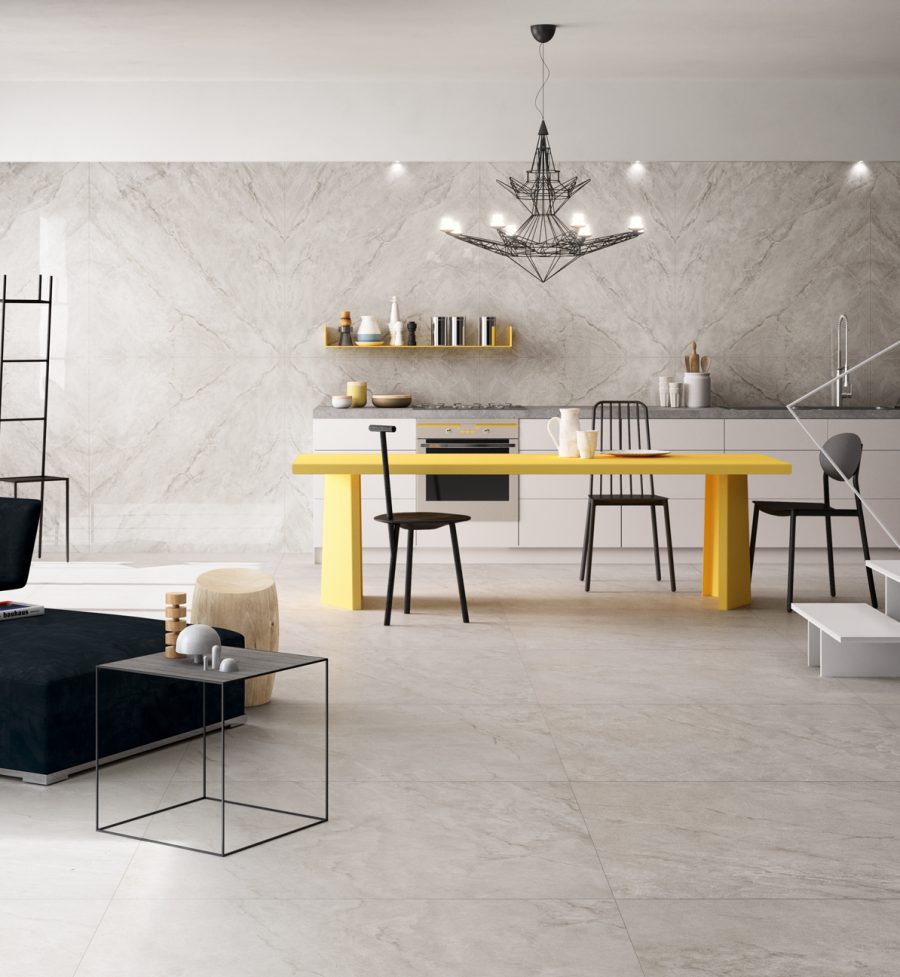

Ercolano (Wall Bookmatched)
Ercolano
Ercolano
Ercolano (Wall Bookmatched)
Ercolano
Ercolano Decorative Options
Bookmatched Ercolano Design 1
Bookmatched Ercolano Design 2
Bookmatched Ercolano Design 3
Size & finish
| Colour | Finish | Size(MM) |
|---|---|---|
| Aquileia | Assisi | Ercolano | Siena | Honed | 1200 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Natural | 1200 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Polished | 1200 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Honed | 600 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Natural | 600 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Polished | 600 x 1200 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Honed | 600 x 600 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Natural | 600 x 600 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Polished | 600 x 600 x 10.5 |
| Aquileia | Assisi | Ercolano | Siena | Natural | 300 x 600 x 10.5 |
Alternative Colours
The Grandiosa Range is also available in the following colours and finishes:
Aquileia – Honed
Aquileia – Natural
Aquileia – Polished
Assisi – Honed
Assisi – Natural
Assisi – Polished
Ercolano – Honed
Ercolano – Natural
Ercolano – Polished
Siena – Honed
Siena – Natural
Siena – Polished
Aquileia Bookmatched – Polished
Assisi Bookmatched – Polished Ercolano Bookmatched – Polished
Siena Bookmatched – Polished
Related Tiles
In addition to Ercolano, we also offer a number of other stone-effect porcelain tiles in beige.
Bookmatched
Grandiosa features remarkable 1200 x 1200 mm Bookmatched tiles, ideal for creating a breathtaking feature wall. Tiles are available in ‘Block A’ and ‘Block B’ matching stone surfaces, the pattern of which mirror each other. Using both blocks in various configurations enables the creation of up to three bookmatched designs. The three bookmatched designs shown here require four tiles (Two x ‘Block A’ and Two x ‘Block B’). Grandiosa Bookmatched tiles are available in all four colourways.
| Detail | Colour | Finish | Size(MM) |
|---|---|---|---|
| Bookmatch Block A | Aquileia | Assisi | Ercolano | Siena | Polished | 1200 x 1200 x 10.5 |
| Bookmatch Block B | Aquileia | Assisi | Ercolano | Siena | Polished | 1200 x 1200 x 10.5 |
Bookmatched Ercolano Design 1 Bookmatched Ercolano Design 2 Bookmatched Ercolano Design 3
Special Pieces & Mosaics
| Detail | Colour | Finish | Size(MM) |
|---|---|---|---|
| Skirting Tile | Aquileia | Assisi | Ercolano | Siena | Natural | 60 x 1200 x 10.5 |
| Skirting Tile | Aquileia | Assisi | Ercolano | Siena | Polished | 60 x 1200 x 10.5 |
| Skirting Tile | Aquileia | Assisi | Ercolano | Siena | Natural | 60 x 600 x 10.5 |
| Skirting Tile | Aquileia | Assisi | Ercolano | Siena | Polished | 60 x 600 x 10.5 |
| Step Tile | Aquileia | Assisi | Ercolano | Siena | Natural | 325 x 1200 x 10.5 |
Technical Specification
Shade Tone Variance
Grandiosa has been classified:
Understanding Shade Tone Variance
Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.
| Variance Rating | Description |
|---|---|
| V1 | Uniform Appearance |
| V2 | Slight Variation |
| V3 | Moderate Variation |
| V4 | Substantial Variation |
Pendulum Test Values (BS 7976-2)
| Finish | Conditions | Result | Slip Potential |
|---|---|---|---|
| Natural | Dry | 60 | |
| Natural | Wet | 30 |
Understanding Pendulum Data
The HSE Approved Pendulum Test accurately replicates the Dynamical Coefficient of Friction (COF) or 'Heel Slip' on floor surfaces and is designed to replicate a pedestrian heel strike, the point at which most slips occur.
The pendulum test readings obtained are referred to as either the Slip Resistance Value (SRV) or Pendulum Test Value (PTV). When the test is operated properly, the PTV should be interpreted as shown in the table below. This table relates to pedestrians walking in a straight line on a level surface. It can be used to accurately test the slip potential on dry or contaminated floors.
| PTV | Slip Potential |
|---|---|
| 0 - 24 | High |
| 25 - 35 | Moderate |
| 36 + | Low |
See British Standard BS 7976-2 for more information on conducting Floor Pendulum Testing on pedestrian surfaces. Pendulum Test Certificate available on request.
Ramp Test Values (DIN 51130)
| Finish/Style | R Rating Value | Friction |
|---|---|---|
| slip rating | R10 |
Understanding Ramp Test Data
DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.
We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.
| R Rating Value | Friction |
|---|---|
| R9 | Minimal |
| R10 | Normal |
| R11 | Good |
| R12 | Good |
| R13 | Very high |
See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.
Technical Data
| Physical Properties | Standard of Test | Required Value | Manufacturers Mean Values |
|---|---|---|---|
| Dimensions and Appearance | EN ISO 10545-2 | Prospect G.1 | Compliant |
| Water absorption | EN ISO 10545-3 | ≤ 0.5% | 0.10% |
| Flexion resistance | EN ISO 10545-4 | min. 35 N/mm² | 45 N/mm² |
| ≥ N 7.5 mm: min. 1300 N | 8.5 mm 2500 N* | ||
| 12 mm 5000 N* | |||
| 14 mm 6500 N* | |||
| 20 mm 11000 N* | |||
| Deep abrasion resistance | EN ISO 10545-6 | ≤ 175 mm³ | 140 mm³ |
| Coefficient of linear thermal-expansion | EN ISO 10545-8 | — | Available on Request |
| Resistance to sudden temperature changes | EN ISO 10545-9 | Available on request | Resistant |
| Frost resistance | EN ISO 10545-12 | Always tested | Resistant |
| Household chemicals and swimming pool cleansers | EN ISO 10545-13 | UGL (min. UB) | UGL (min. UB) |
| GL (min. GB) | GL (min. GB) | ||
| Acics and low concentration alkalis | UGL | UGL | |
| From ULA, ULB to ULC | From ULA, ULB to ULC | ||
| GL | GL | ||
| From GLA, GLB to GLC | From GLA, GLB to GLC | ||
| Acids and High concentration Alkalis | Available on request | Available on Request | |
| Resistance to stains | EN ISO 10545-14 | Available on request | Min. 3 |
| * Information relating to the size of the sample used is available on request |
Grandiosa is ECOLABEL and LEED® certified.
Download PDF Catalogue
You can download the Grandiosa PDF catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.
Ordering tile samples
To order Ercolano – Natural tile samples please click this order button:
To review your items or to complete your order simply click on the white tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.
Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.
Environmentally Certified
Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.
Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.
Grandiosa is ECOLABEL and LEED® certified.
LEED® certification
LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.
The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.
All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.
EU Ecolabel
The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.
The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
