Jade Onyx Polished Finish

8

Sizes

Variation

V4
6
9

Jade Onyx is a marble-effect porcelain slab and forms part of our Onyx Sense Range. This slab is offered with a Polished finish and is available in 8 sizes. To order a Jade Onyx colour sample in Polished finish click the Order Sample button below or add to your favourites using the icon.

1600 x 3200

1200 x 2800

1200 x 2400

800 x 1800

1600 x 1600

600 x 1200

1200 x 1200

Jade Onyx Product Story

Celebrating the translucence and beauty of Onyx stone, this radiant and highly polished collection allows light to bounce across its surface, creating a warm and welcoming environment. Onyx Sense displays the wide variation and natural banding associated with this precious material, but without any of the maintenance issues encountered with conventional stone. Available in dramatic 1600 x 3200 mm slabs and in Natural, Honed or Polished surfaces, Onyx Sense is ideal for luxurious wall and floor applications where the requirement is for the spectacular. Jade Onyx is part of our  Marble-effect  Collection.

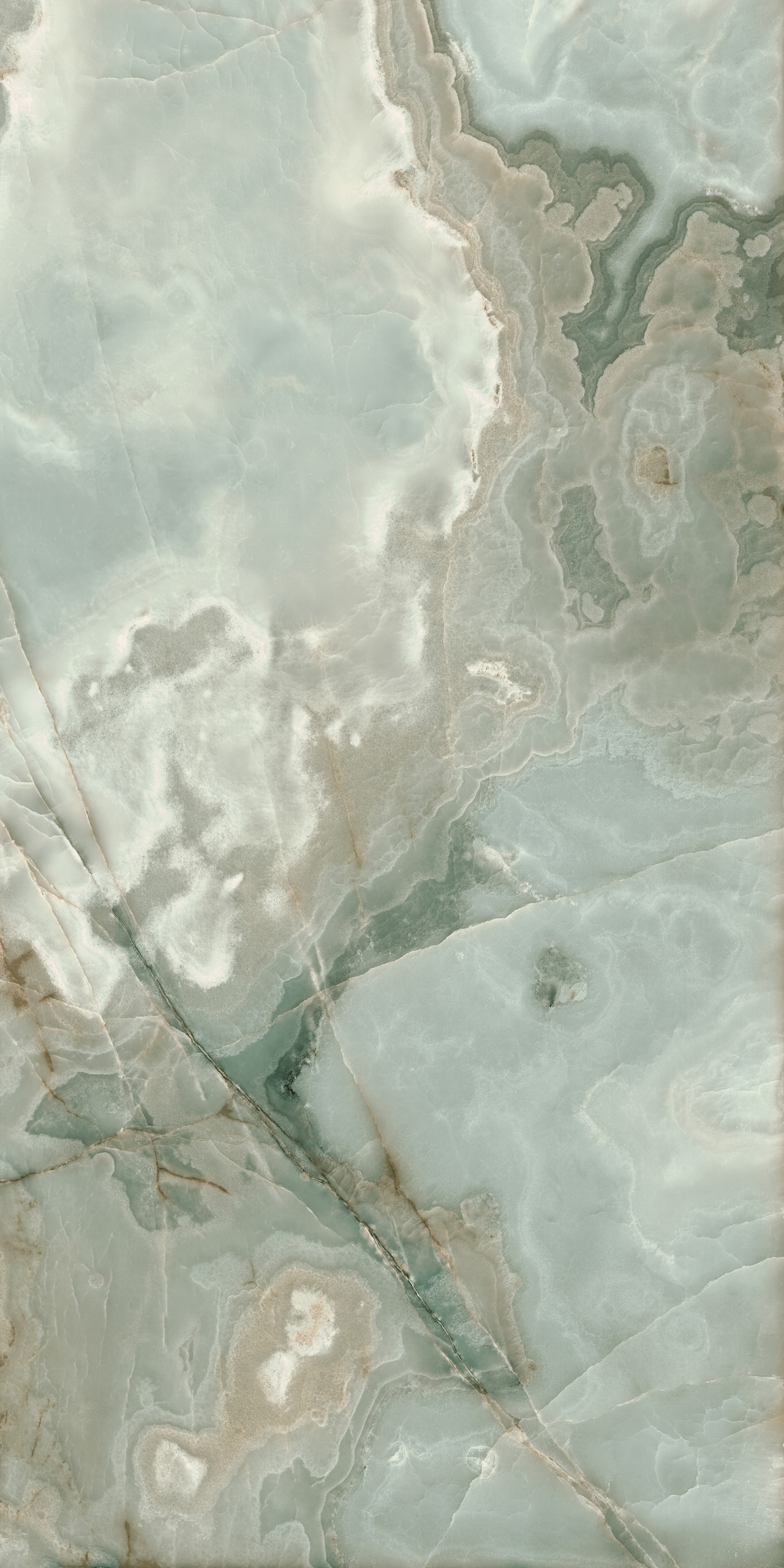

Jade Onyx Graphical Faces

Jade Onyx is supplied with a number of distinct graphical faces. Below are examples of 5 of these graphical faces when supplied in large formats. Click on any swatch for a closer look.

Use our graphical faces tool to reorganise the order and orientation of these faces.

Size & finish

Colour Finish Size (MM)
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 1600 x 3200 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Polished 1600 x 3200 x 6
Grigio Onyx | Perla Natural 1500 x 3000 x 6
Ghiaccio | Grigio Onyx | Perla | Persian Green | Pink | Profondo Noir Polished 1500 x 3000 x 6
Luxuria | Opal White | Silver Onyx Honed 1200 x 2800 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 1200 x 2800 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 1200 x 2800 x 6
Luxuria | Opal White | Silver Onyx Honed 1200 x 2400 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 1200 x 2400 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 1200 x 2400 x 6
Luxuria | Opal White | Silver Onyx Honed 800 x 1800 x 9
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 800 x 1800 x 9
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 800 x 1800 x 9
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 1600 x 1600 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Polished 1600 x 1600 x 6
Grigio Onyx | Perla Natural 1500 x 1500 x 6
Bianco | Ghiaccio | Grigio Onyx | Perla | Persian Green | Pink | Profondo Noir | Viola Polished 1500 x 1500 x 6
Bianco | Grigio Onyx | Perla Natural 750 x 1500 x 6
Bianco | Ghiaccio | Grigio Onyx | Perla | Persian Green | Pink | Profondo Noir | Viola Polished 750 x 1500 x 6
Luxuria | Opal White | Silver Onyx Honed 1200 x 1200 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 1200 x 1200 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 1200 x 1200 x 6
Luxuria | Opal White | Silver Onyx Honed 600 x 1200 x 9
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 600 x 1200 x 9
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 600 x 1200 x 9
Luxuria | Opal White | Silver Onyx Honed 600 x 1200 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Oyster | Rose Onyx Natural 600 x 1200 x 6
Brown Onyx | Hazelnut | Ivory | Jade Onyx | Luxuria | Opal White | Oyster | Rose Onyx | Silver Onyx Polished 600 x 1200 x 6
Bianco | Grigio Onyx | Perla Natural 750 x 750 x 6
Bianco | Ghiaccio | Grigio Onyx | Perla | Persian Green | Pink | Profondo Noir | Viola Polished 750 x 750 x 6
Luxuria | Opal White | Silver Onyx Honed 600 x 600 x 9
Brown Onyx | Hazelnut | Ivory | Oyster Natural 600 x 600 x 9
Brown Onyx | Hazelnut | Ivory | Luxuria | Opal White | Oyster | Silver Onyx Polished 600 x 600 x 9
Brown Onyx | Hazelnut | Ivory | Oyster Natural 300 x 600 x 9
Brown Onyx | Hazelnut | Ivory | Oyster Polished 300 x 600 x 9

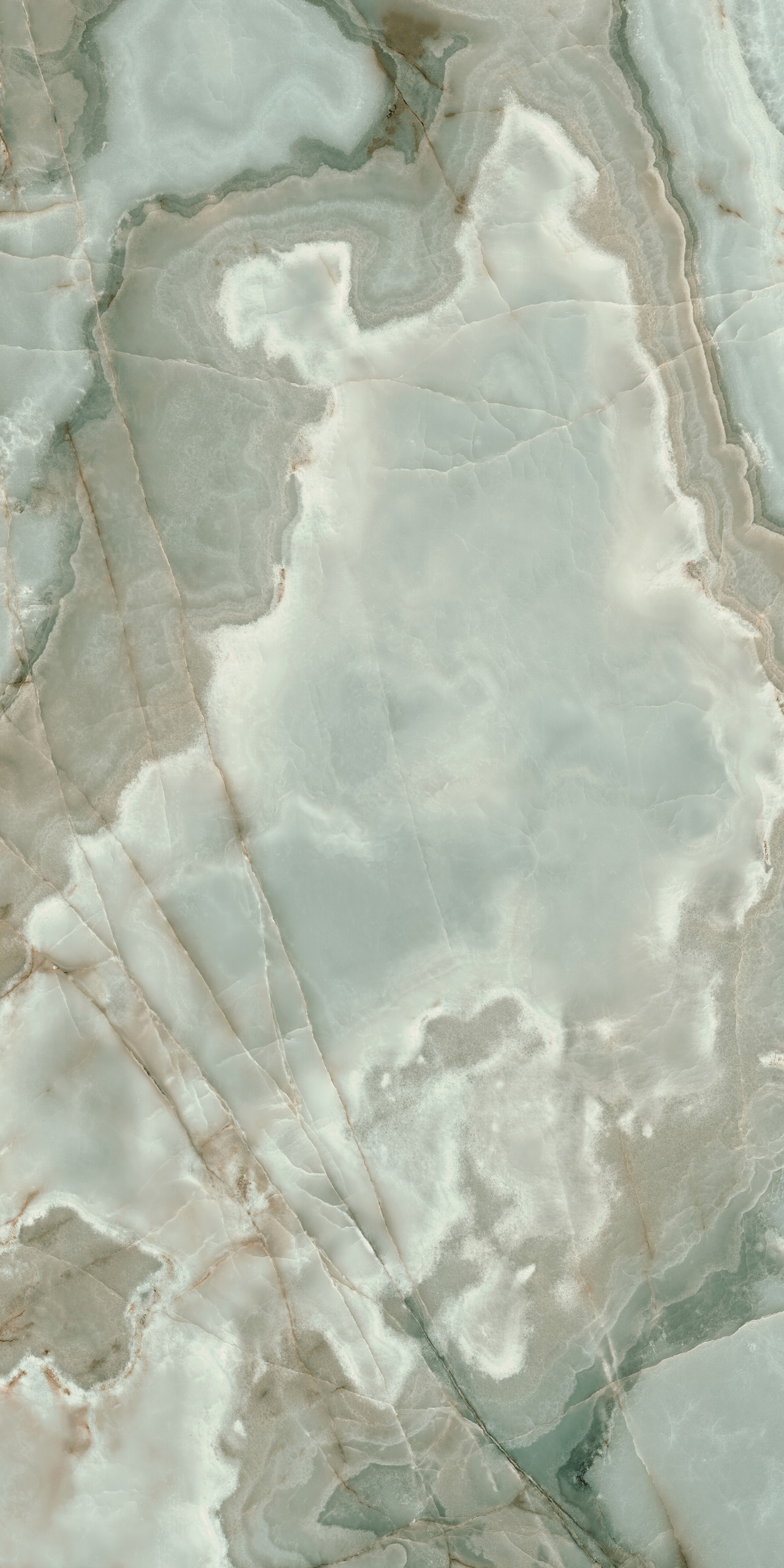

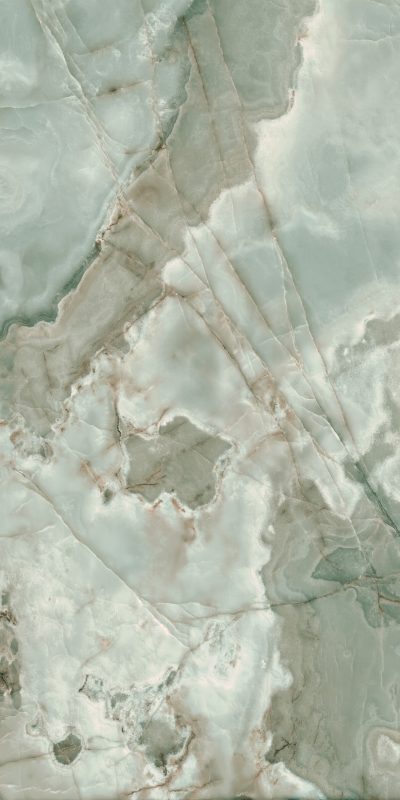

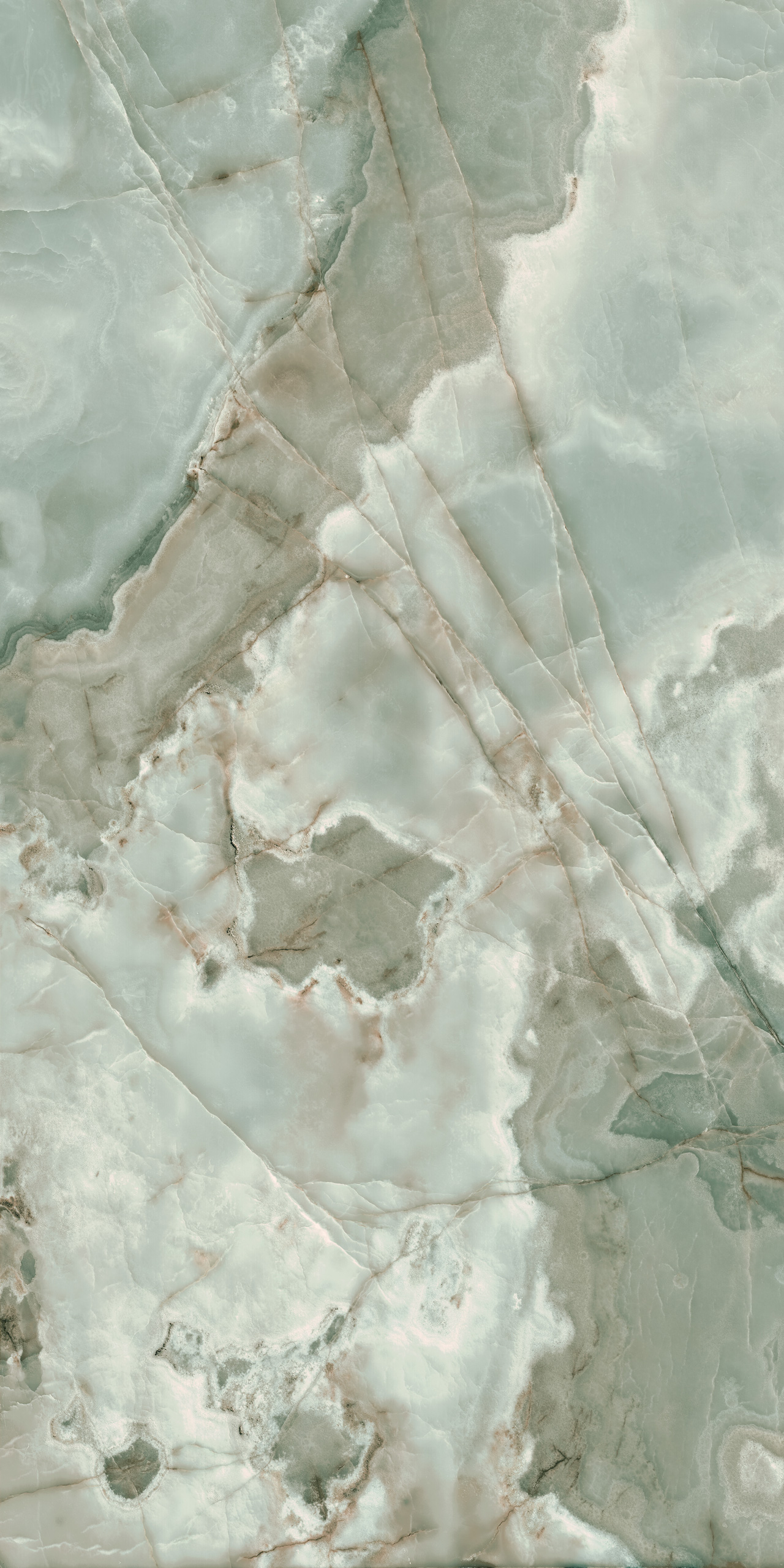

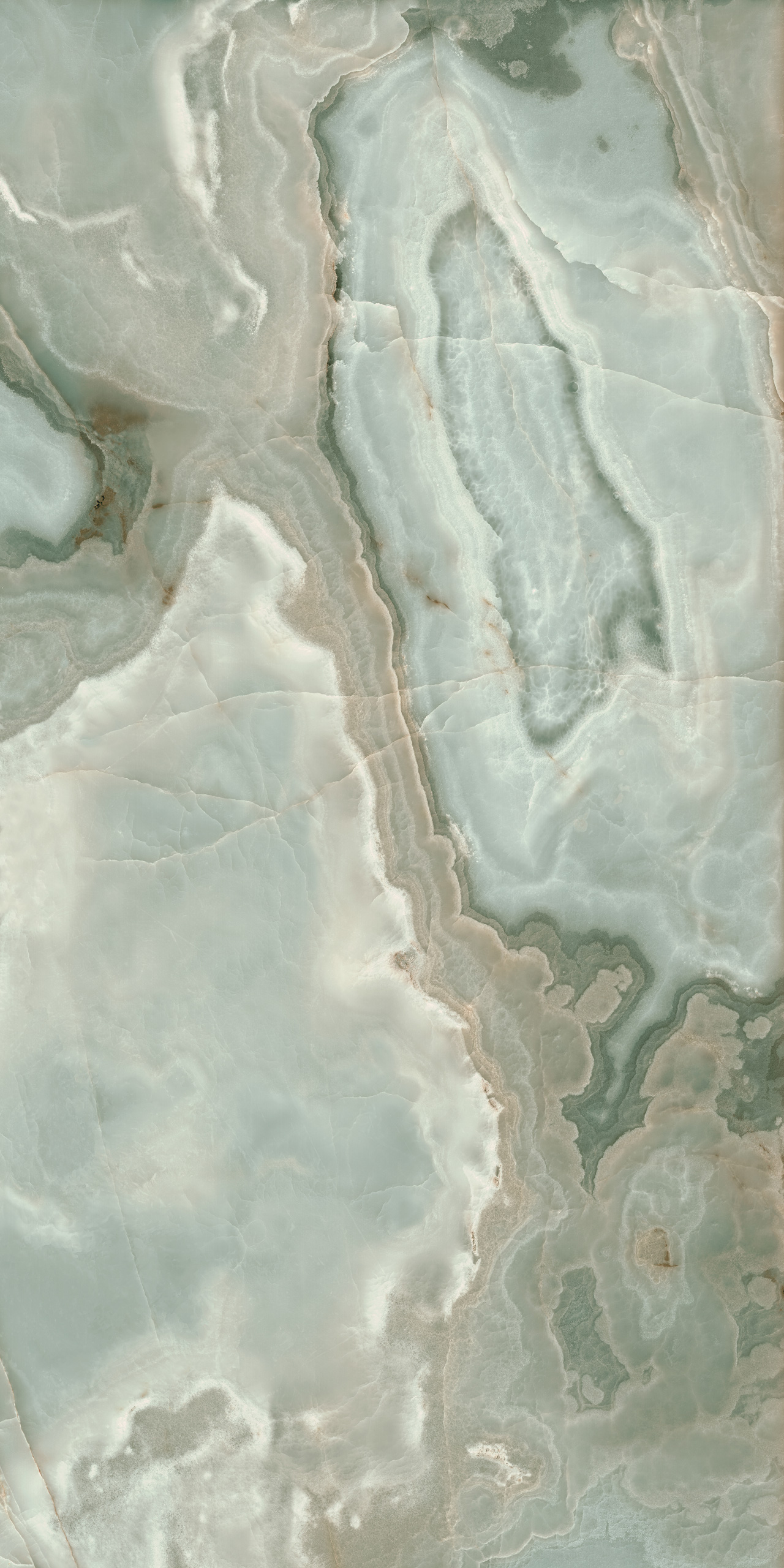

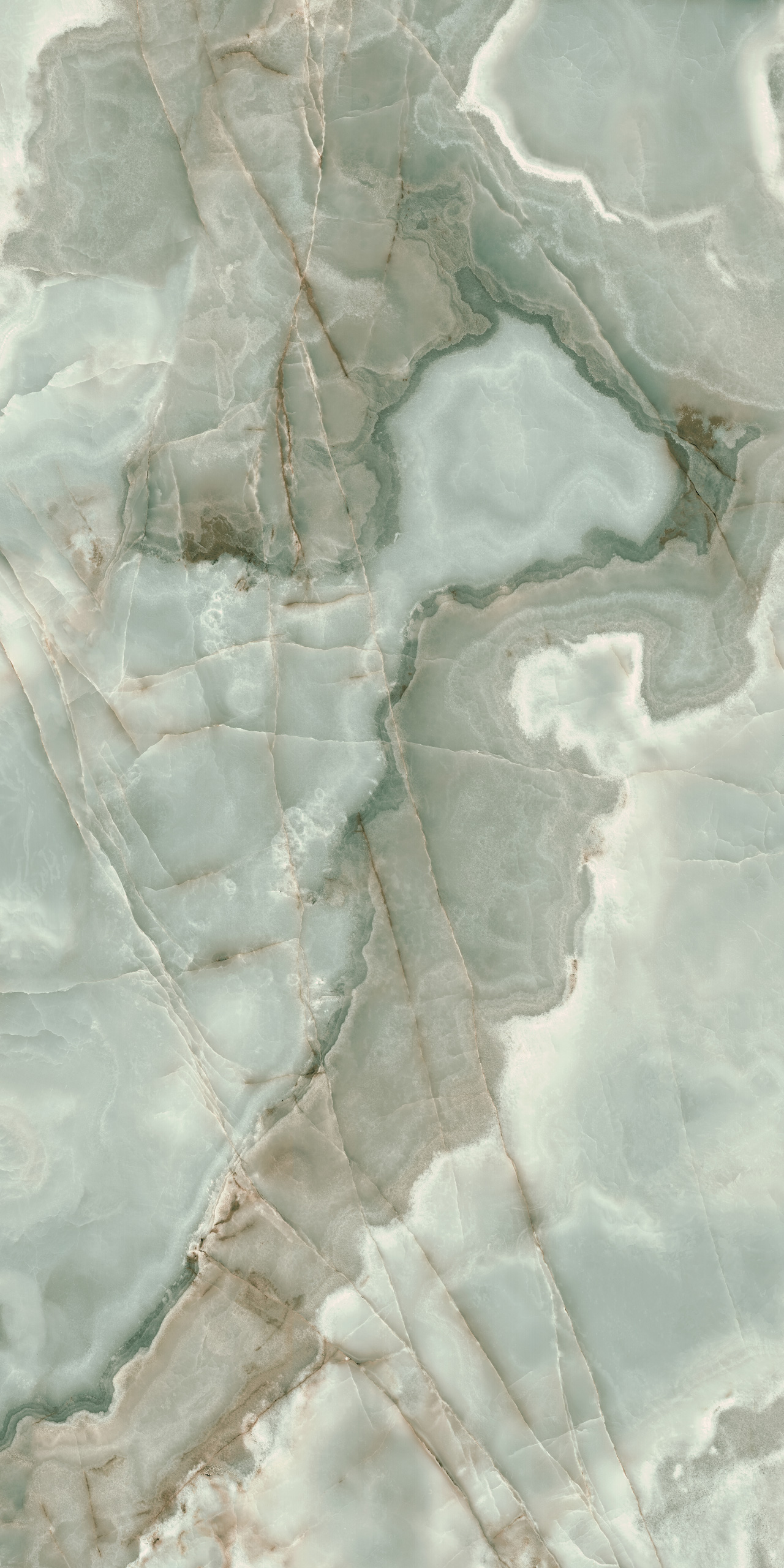

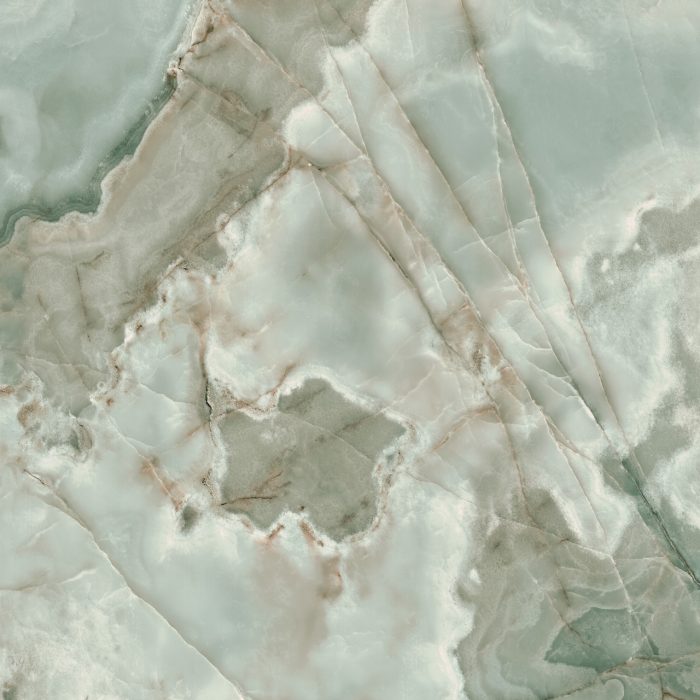

Graphical Faces

Graphical faces for 3200 x 1600 mm

Jade Onyx is supplied with a number of distinct graphical faces. Below are examples of 5 of these graphical faces when supplied in 3200 x 1600 mm format. Click on any swatch for a closer look.

Use our graphical faces tool to reorganise the order and orientation of these faces.

Similar Colours

In addition to Jade Onyx, we also offer a number of other coloured marble-effect porcelain tiles.

Discover similar tiles

Onyx Sense Collection

The Onyx Sense Collection is also available in the following colours and finishes:

  • Bianco – Natural
    Bianco – Natural
  • Bianco – Polished
    Bianco – Polished
  • Brown Onyx – Natural
    Brown Onyx – Natural
  • Brown Onyx – Polished
    Brown Onyx – Polished
  • Ghiaccio – Polished
    Ghiaccio – Polished
  • Grigio Onyx – Natural
    Grigio Onyx – Natural
  • Grigio Onyx – Polished
    Grigio Onyx – Polished
  • Hazelnut – Natural
    Hazelnut – Natural
  • Hazelnut – Polished
    Hazelnut – Polished
  • Ivory – Natural
    Ivory – Natural
  • Ivory – Polished
    Ivory – Polished
  • Jade Onyx – Natural
    Jade Onyx – Natural
  • Jade Onyx – Polished
    Jade Onyx – Polished
  • Luxuria – Honed
    Luxuria – Honed
  • Luxuria – Polished
    Luxuria – Polished
  • Opal White – Honed
    Opal White – Honed
  • Opal White – Polished
    Opal White – Polished
  • Oyster – Natural
    Oyster – Natural
  • Oyster – Polished
    Oyster – Polished
  • Perla – Natural
    Perla – Natural
  • Perla – Polished
    Perla – Polished
  • Persian Green – Polished
    Persian Green – Polished
  • Pink – Polished
    Pink – Polished
  • Profondo Noir – Polished
    Profondo Noir – Polished
  • Rose Onyx – Natural
    Rose Onyx – Natural
  • Rose Onyx – Polished
    Rose Onyx – Polished
  • Silver Onyx – Honed
    Silver Onyx – Honed
  • Silver Onyx – Polished
    Silver Onyx – Polished
  • Viola – Polished
    Viola – Polished

Technical Specification

Shade Tone Variance

Jade Onyx – Polished has been classified: V4

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Ramp Test Values (DIN 51130)

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

SpecificationTest MethodsRequired valueValues
Length and WidthISO 10545-2± 0.6% max± 0.1% / ± 0.5mm
ThicknessISO 10545-2± 5% max± 3%
LinearityISO 10545-2± 0.5% max± 0.1% / ± 0.5mm
WedgingISO 10545-2± 0.6% max± 0.1% / ± 1mm
WarpageISO 10545-2± 0.5% max± 0.2%
Water AbsorbtionISO 10545-3≤ 0.5%Conforms
Deep Abrasion ResistanceISO 10545-6Volume ≤ 175mm³≥ 142mm³
Coefficient of Linear Thermal-ExpansionISO 10545-8On RequestOn Request
Frost ResistanceISO 10545-12Must not produce noticeable alteration to surfaceFrost-proof
Chemical ResistanceISO 10545-13Must not produce noticable signs of chemical attackConforms
Stain resistanceISO 10545-14Testing method availableResistant to stain
Friction coefficient (slipperiness)DIN 51130Test method availableNatural: R9

Onyx Sense is ECOLABEL and LEED® certified.

Download PDF Catalogue

You can download the Onyx Sense PDF catalogue here. You can call us on 020 3141 3337 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles. You can also download the Now Imagine catalogue here. Now Imagine provides our clients with full technical and manufacturing support, enabling them to incorporate large format Italian porcelain surfaces into their designs in new and innovative ways. Through our Now Imagine campaign we hope to inspire designers to think of each porcelain slab as a creative surface. Discover more here.

Ordering tile samples

To order Jade Onyx – Polished tile samples please click the black Order Sample button.

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 10 x 20 cm format.

Environmentally Certified

All our porcelain surfaces are manufactured using sustainable processes that minimise the impact on the environment, conserving both energy & natural resources.

All products are produced without the use of any harmful or radioactive materials, are free from pollutant emissions and will not effect air quality. All packing material is produced with recycled material. Wherever possible, heat generated as a by-product of the manufacturing process is used for electricity generation, making factories energy self sufficient. All waste material that is associated with the supply of the tile surface is fully recyclable.

All products are manufactured using materials from renewable sources. They have a reduced environmental impact throughout their lifespan and no toxic, harmful or polluting substances are used for their composition and production. The materials do not release toxic, harmful or polluting substances.

Onyx Sense meets the highest standards of quality and environmental regulations and conforms to the following certifications:

LEED®

LEED<sup>®</sup> certified

LEED® (Leadership in Energy and Environmental Design) is the world's most widely used green building rating system by the U.S. Green Building Council. LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.

NSF®

NSF certified

NSF® has facilitated the development of more than 75 standards and protocols for sanitary food equipment, and has certified thousands of products as safe to use in restaurant and commercial kitchen settings. NSF® food equipment standards include requirements for material safety, design, construction and product performance. The products conform to the requirements of NSF/ANSI Standard 51 – Food Equipment Materials. NSF/ANSI 51 establishes minimum public health and sanitation requirements for materials and finishes used in the manufacture of commercial foodservice equipment.

GREENGUARD

GREENGUARD certified

GREENGUARD Certification ensures that a product meets stringent standards for minimal emissions of volatile organic compounds (VOCs) into indoor air. This program provides assurance that products designed for indoor use adhere to strict chemical emissions limits, fostering the creation of healthier interiors. Manufacturers with GREENGUARD Certification gain credibility for their sustainability claims, supported by empirical technical data from an unbiased third-party organisation. The GREENGUARD Certification Program instills confidence by ensuring that indoor products meet strict chemical emissions limits, contributing to the creation of healthier interior spaces. This empowers manufacturers to produce and customers to identify products with low chemical emissions, thereby supporting air quality and environmental well-being.

For more information please read our article on Environmental Impact.
