Lumina Edge Collection
Lumina is a grey concrete-effect porcelain tile and large format slab from our Edge Collection. See where Lumina can be used. Order a free sample below.
Edge Lumina
Lumina Sizes & Finishes
Showing only. Show all finishes
All sizes are rectified.
| Finish | Size (mm) | Thickness | Slip rating | Variation | Rectified | Weight / m² |
|---|---|---|---|---|---|---|
| Natural | 1200 × 2780 | 6mm | R10, R9 | – | Yes | 15 kg |
| 1200 × 1200 | 9mm | R10, R9 | V2 | Yes | 21.5 kg | |
| 600 × 1200 | 9mm | R10, R9 | V2 | Yes | 22.4 kg | |
| 800 × 800 | 9mm | R10, R9 | V2 | Yes | 21.9 kg | |
| 600 × 600 | 9mm | R10, R9 | V2 | Yes | 21.3 kg | |
| 300 × 600 | 9mm | R10, R9 | – | Yes | 20.8 kg |
Lumina Decorative Options
| Piece | Finish | Size |
|---|---|---|
| Mosaic (Chip Size 48x48mm) | Natural | 300 × 300 × 9mm |
| Mosaic (Chip Size 25x48mm) | Natural | 300 × 300 × 9mm |
| Skirting Tile | Natural | 72 × 600 × 9mm |
| Skirting Tile | Natural | 72 × 800 × 9mm |
Specification clause
Copy the clause for Lumina into your specification or schedule.
Lumina – Natural
- Product
- Edge Collection, Lumina, Natural finish
- Material
- Concrete-effect porcelain tiles and slabs
- Supplier
- Porcelain Stones Ltd, www.porcelain-tiles.co.uk
- Sizes
- 1200 × 2780 × 6 mm (15.0 kg/m², ref MC17507); 1200 × 1200 × 9 mm (21.5 kg/m², ref MC17541); 600 × 1200 × 9 mm (22.4 kg/m², ref MC17588); 800 × 800 × 9 mm (21.9 kg/m², ref MC17657); 600 × 600 × 9 mm (21.3 kg/m², ref MC17609); 300 × 600 × 9 mm (20.8 kg/m², ref MC17573)
- Edges
- Rectified
- Slip resistance
- R10, R9 (DIN 51130)
- Pendulum Test Value (PTV)
- Available on request
- Shade variation
- V2
- Water absorption
- ≤ 0.1% (ISO 10545-3)
- Frost resistance
- Conforms (ISO 10545-12)
- Abrasion resistance
- < 150 Mm³ (ISO 10545-6)
- Suggested grout
- Mapei – 115 River Gray tile grout
- Recommended uses
- Interior floors: Living areas & hallways, Kitchens, Bathrooms, Showers & wet areas, High-traffic & commercial. Interior walls: Feature walls, Full-height wall cladding, Kitchen splashbacks, Shower walls. Large-format surfaces: Seamless wall cladding, Seamless floors, Kitchen worktops & islands, Vanity tops & basins, Tables & furniture, Fireplace & bath surrounds
- Special pieces
- Mosaic (Chip Size 48x48mm), Mosaic (Chip Size 25x48mm), Skirting Tile
- Certification
- BREEAM, LEED, EU Ecolabel, GREENGUARD, NSF
- Samples
- Free samples available
- Product page
- https://www.porcelain-tiles.co.uk/tile/lumina-natural/
Colour of grout recommended may be subjective.
Specifying Lumina for a project? Our team can advise on finishes, formats and quantities.
Lumina Applications
Where each finish of Lumina can be specified, based on its slip rating, thickness and format.
| Application | Natural |
|---|---|
| Interior floors | |
| Living areas & hallways | Suitable |
| Kitchens | Suitable |
| Bathrooms | Suitable |
| Showers & wet areas | Suitable |
| High-traffic & commercial | Suitable |
| Interior walls | |
| Feature walls | Suitable |
| Full-height wall cladding | Suitable |
| Kitchen splashbacks | Suitable |
| Shower walls | Suitable |
| Large-format surfaces | |
| Seamless wall cladding | Suitable |
| Seamless floors | Suitable |
| Kitchen worktops & islands | Suitable |
| Vanity tops & basins | Suitable |
| Tables & furniture | Suitable |
| Fireplace & bath surrounds | Suitable |
Guidance based on DIN 51130 slip ratings, thickness and format. Always confirm project-specific requirements, particularly for commercial and public spaces.
Lumina Product Story
Lumina comes in Natural (R9/R10) for interior floors and walls, including bathrooms and commercial areas. Slabs up to 1200 × 2780mm extend it to seamless wall cladding, seamless floors, worktops and islands, vanity tops and basins, tables and furniture, and fireplace and bath surrounds. Every size is rectified for narrow, consistent joints, in thicknesses from 6mm to 9mm, and the collection can contribute to BREEAM and LEED assessments.
Lumina Gallery

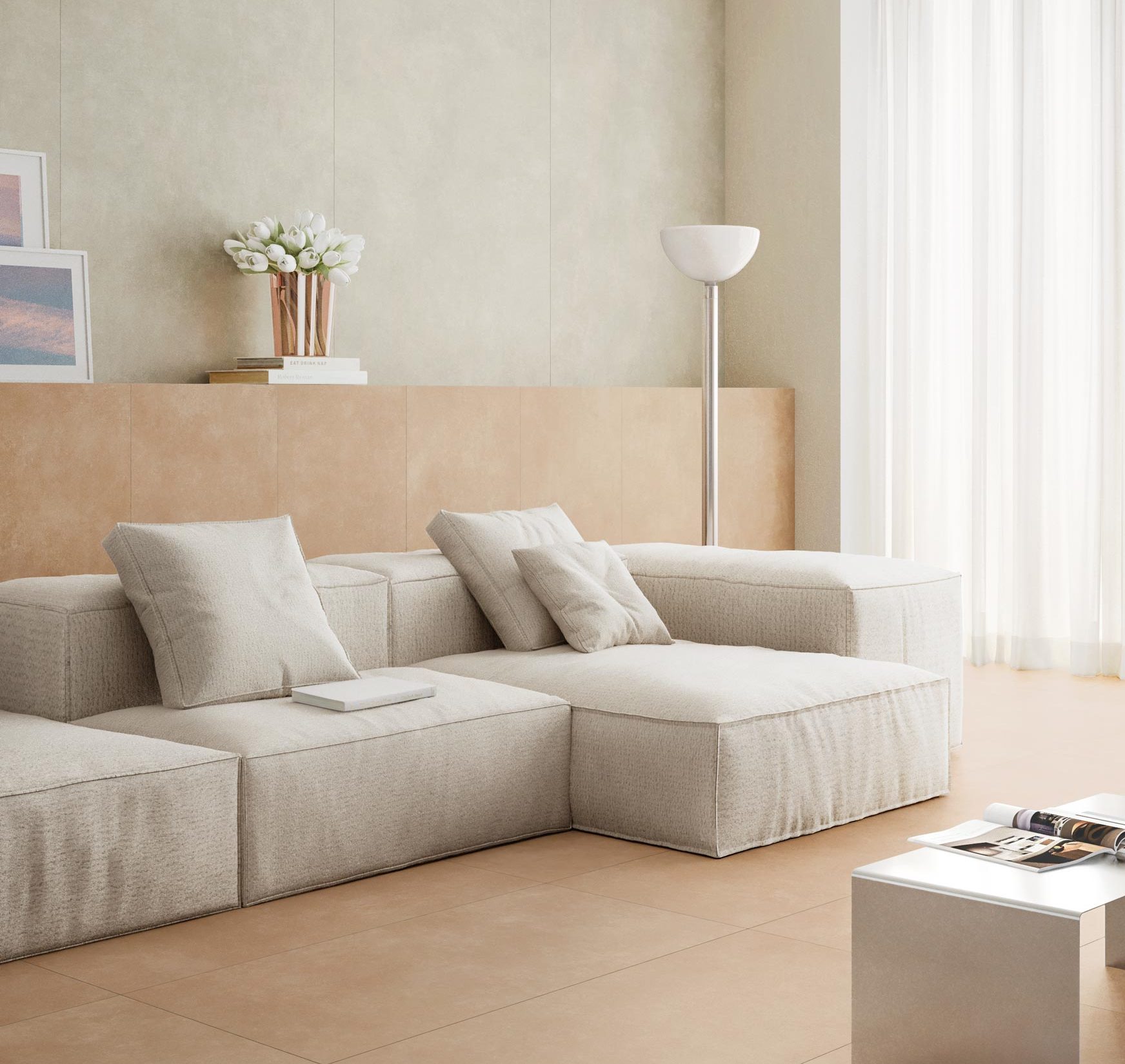

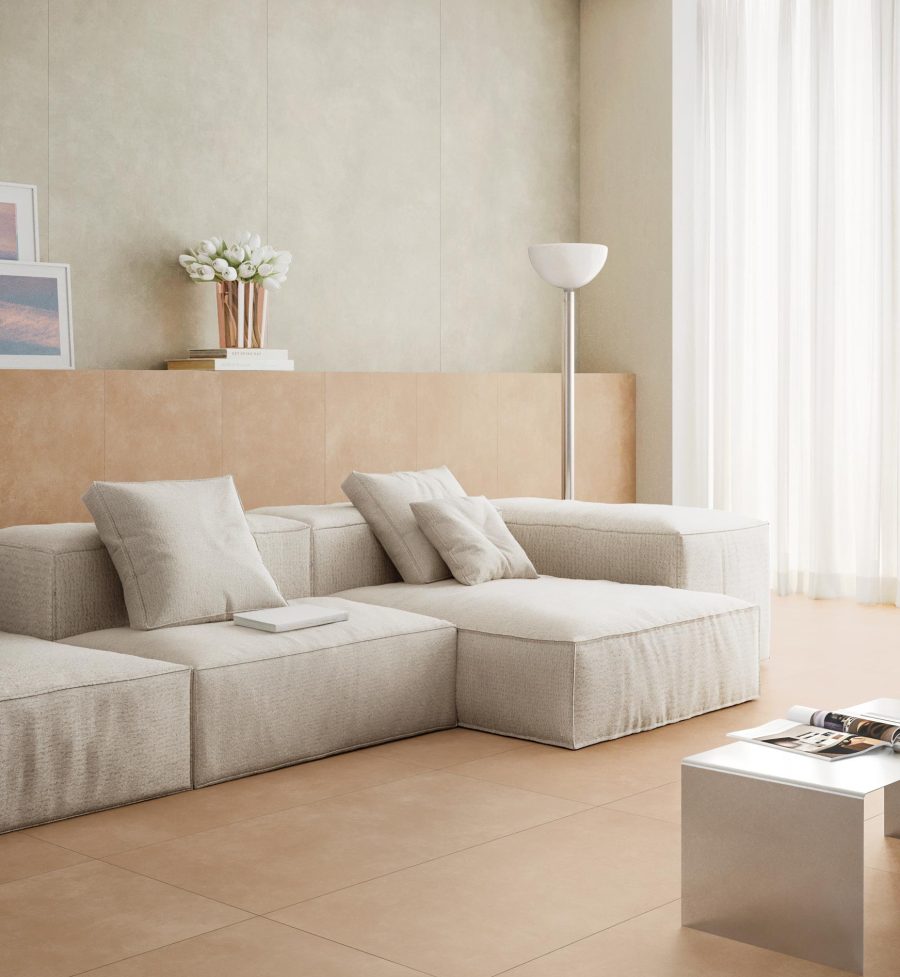

Edge Peach | Lumina – photo 1
Edge Khaki & Peach & Lumina – photo 2

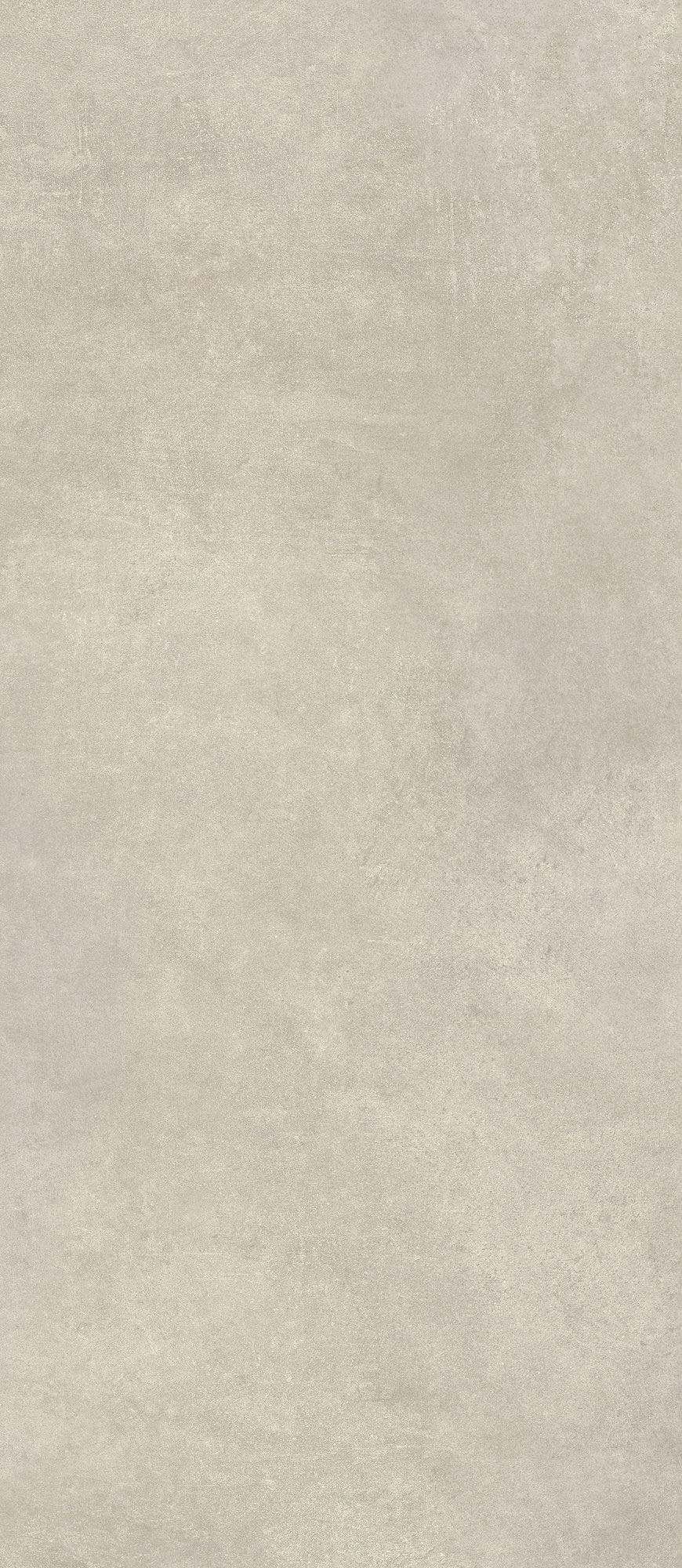

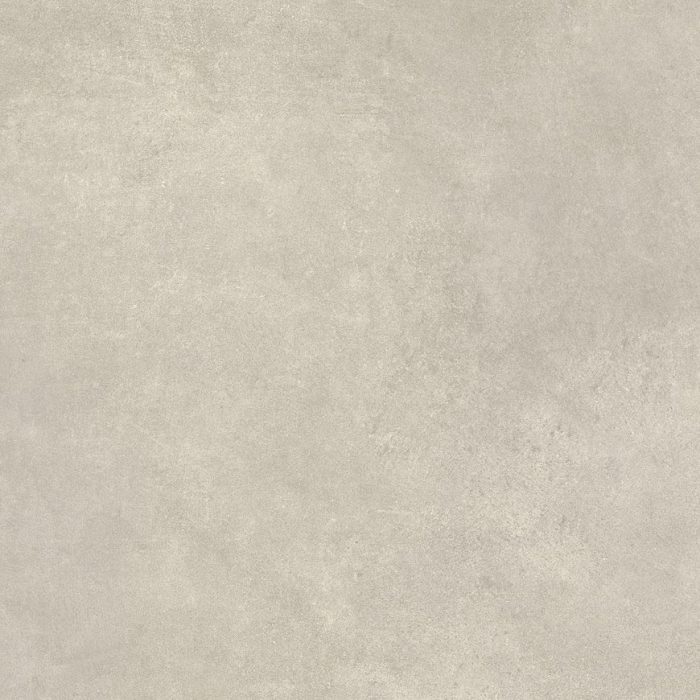

Edge Lumina porcelain tile swatch
Lumina Create Bespoke Products
Porcelain slabs were never meant to stop at floors and walls. Large-format porcelain, made into tables, vanities and countertops in our UK workshops.
-
We can supply your vanity and basin in Lumina.
Lumina also works with these colours →
Made to measure in-house: curved fronts, integrated basins and storage, with a consistent finish from a single bathroom to a whole hotel.
Shown in another colour.
-
Fine Dining Tables
Lumina also works with these colours →
Bespoke dining tables with hard-wearing porcelain tops: heat, stain and scratch resistant, and low maintenance. Choose from four collections — Monarch, Luna, Vanguard and Phantom — or design your own. Needs a 12mm+ top. Not available in Lumina.
Shown in another colour.
-
Premium Kitchen Countertops
Lumina also works with these colours →
We template, make and install, with no third parties involved: 12mm and 20mm porcelain for worktops, waterfall islands and splashbacks. Needs a 12mm+ top. Not available in Lumina. See 12mm tops →
Shown in another colour.
Specifying Lumina
Quantity & Weight Estimator
Work out how many tiles you need for each area, and the total weight for delivery, handling and structural checks.
Similar Colours
Other grey concrete effect porcelain tiles from different collections, ranked by how closely they match Lumina on finish, slip rating, thickness and format.
-
Pale Grey
Equilibrio Collection
Up to 1200 × 2800 | 6, 9mm | R10, R11
Shared: Natural | 6, 9mm | R10 | V2
-
Slate Grey
Equilibrio Collection
Up to 1200 × 2800 | 6, 9mm | R10, R11
Shared: Natural | 6, 9mm | R10 | V2
-
Greige
Forma Collection
Up to 1200 × 2400 | 6, 9, 20mm | R10, R11
Shared: 6, 9mm | R10 | V2
-
Ravine
Forma Collection
Up to 1200 × 2400 | 6, 9, 20mm | R10, R11
Shared: 6, 9mm | R10 | V2
-
Pale Grey Line
Equilibrio Collection
Up to 1200 × 2800 | 6mm
Shared: Natural | 6mm | V2
-
Slate Grey Line
Equilibrio Collection
Up to 1200 × 2800 | 6mm
Shared: Natural | 6mm | V2
-
Avorio
Urbe Collection
Up to 1200 × 1200 | 6, 8, 20mm | R10, R11
Shared: Natural | 6mm | R10 | V2
-
Corda
Urbe Collection
Up to 1200 × 1200 | 6, 8, 20mm | R10, R11
Shared: Natural | 6mm | R10 | V2
Lumina has been categorised as a grey concrete effect porcelain tile.
Edge Collection
The Edge Collection is available in the following colours:
Chiaro
Zenzero
Khaki
Argento
Dovegrey
Nebula
Biscotto
Mink
Peach
Camoscio
Tabacco
Tortora
Primrose
Earth
Lumina
Lino
Polvere
Carbone
Technical Specification
Technical Data
| Characteristic | Test standard | Requirement | Result |
|---|---|---|---|
| Length and Width | ISO 10545-2 | ± 0.3% Max | Conforms |
| Thickness | ISO 10545-2 | ± 5% Max | Conforms |
| Linearity | ISO 10545-2 | ± 0.3% Max | Conforms |
| Wedging | ISO 10545-2 | ± 0.3% Max | Conforms |
| Warpage | ISO 10545-2 | ± 0.4% Max | Conforms |
| Water Absorption | ISO 10545-3 | ≤ 0.5 % | ≤ 0.1% |
| Deep Abrasion Resistance | ISO 10545-6 | ≤ 175 Mm³ | < 150 Mm³ |
| Coefficient of Linear Thermal Expansion | ISO 10545-8 | - | 6,6x10-6°C-1 |
| Resistance to Thermal Shocks | ISO 10545-9 | Testing Method Available | Resistant |
| Frost Resistance | ISO 10545-12 | Must not produce noticeable alteration to surface | Conforms |
| Chemical Resistance | ISO 10545-13 | Testing Method Available | A LA HA |
| Stain Resistance | ISO 10545-14 | Testing Method Available | 5 |
Shade Variation
Edge Lumina is rated .
Shade variation describes how much colour, tone and pattern differ from tile to tile in the same batch, from V1 (uniform appearance) to V4 (substantial variation). Lay out tiles from several boxes before fixing to see the full range.
Slip Resistance
Edge Lumina has been slip tested using the DIN 51130 ramp test. Results by finish:
| Finish | R rating | Slip resistance |
|---|---|---|
| Natural | R10, R9 | Normal, Minimal |
R ratings run from R9 (minimal slip resistance) to R13 (very high). They classify how a surface performs in the ramp test and are not the angle a floor can safely be laid at. Ramp test (DIN 51130) and pendulum test (BS 7976-2) certificates are available on request.
Download PDF Catalogue
You can download the Edge PDF catalogue here, along with our Now Imagine catalogues for bespoke dining tables, vanities and kitchen countertops. You can call us on 020 3141 3337 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.
Technical sheets include the product details, technical specification and environmental certification for each finish of Lumina.
Samples
To order free Edge Lumina samples, use the Order free sample button.
To review your items or to complete your order simply click on the white tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.
Prefer to see it in person? Visit our North or South London showroom.
Tile samples are provided in 10 x 20 cm format.
Environmentally Certified
All our porcelain surfaces are manufactured using sustainable processes that minimise the impact on the environment, conserving both energy & natural resources.
All products are produced without the use of any harmful or radioactive materials, are free from pollutant emissions and will not affect air quality. All packing material is produced with recycled material. Wherever possible, heat generated as a by-product of the manufacturing process is used for electricity generation, making factories energy self-sufficient. All waste material that is associated with the supply of the tile surface is fully recyclable.
All products are manufactured using materials from renewable sources. They have a reduced environmental impact throughout their lifespan and no toxic, harmful or polluting substances are used for their composition and production. The materials do not release toxic, harmful or polluting substances.
Edge meets the highest standards of quality and environmental regulations and conforms to the following certifications:
BREEAM®
Building Research Establishment Environmental Assessment Method (BREEAM®) was created by the BRE as a cost-effective means of bringing sustainable value to development. It helps investors, developers, design and construction teams and occupiers to use natural resources more efficiently. The environmental characteristics have been evaluated and found according to the requirements of content of recycled material for environmental assessment according to BREEAM® criteria.
LEED®
LEED® (Leadership in Energy and Environmental Design) is the world's most widely used green building rating system by the U.S. Green Building Council. LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is a nationally recognised symbol demonstrating that a building is environmentally responsible, profitable and a healthy place to live and work.
The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognising performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.
All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.
EU Ecolabel
The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.
The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
NSF®
NSF® has facilitated the development of more than 75 standards and protocols for sanitary food equipment, and has certified thousands of products as safe to use in restaurant and commercial kitchen settings. NSF® food equipment standards include requirements for material safety, design, construction and product performance. The products conform to the requirements of NSF/ANSI Standard 51 – Food Equipment Materials. NSF/ANSI 51 establishes minimum public health and sanitation requirements for materials and finishes used in the manufacture of commercial foodservice equipment.
GREENGUARD
GREENGUARD Certification ensures that a product meets stringent standards for minimal emissions of volatile organic compounds (VOCs) into indoor air. This program provides assurance that products designed for indoor use adhere to strict chemical emissions limits, fostering the creation of healthier interiors. Manufacturers with GREENGUARD Certification gain credibility for their sustainability claims, supported by empirical technical data from an unbiased third-party organisation. The GREENGUARD Certification Program instils confidence by ensuring that indoor products meet strict chemical emissions limits, contributing to the creation of healthier interior spaces. This empowers manufacturers to produce and customers to identify products with low chemical emissions, thereby supporting air quality and environmental well-being.
For more information please read our article on Environmental Impact.
