Vezio Structured Finish

Sizes

Natural

R10

Structured

R11

Variation

V3

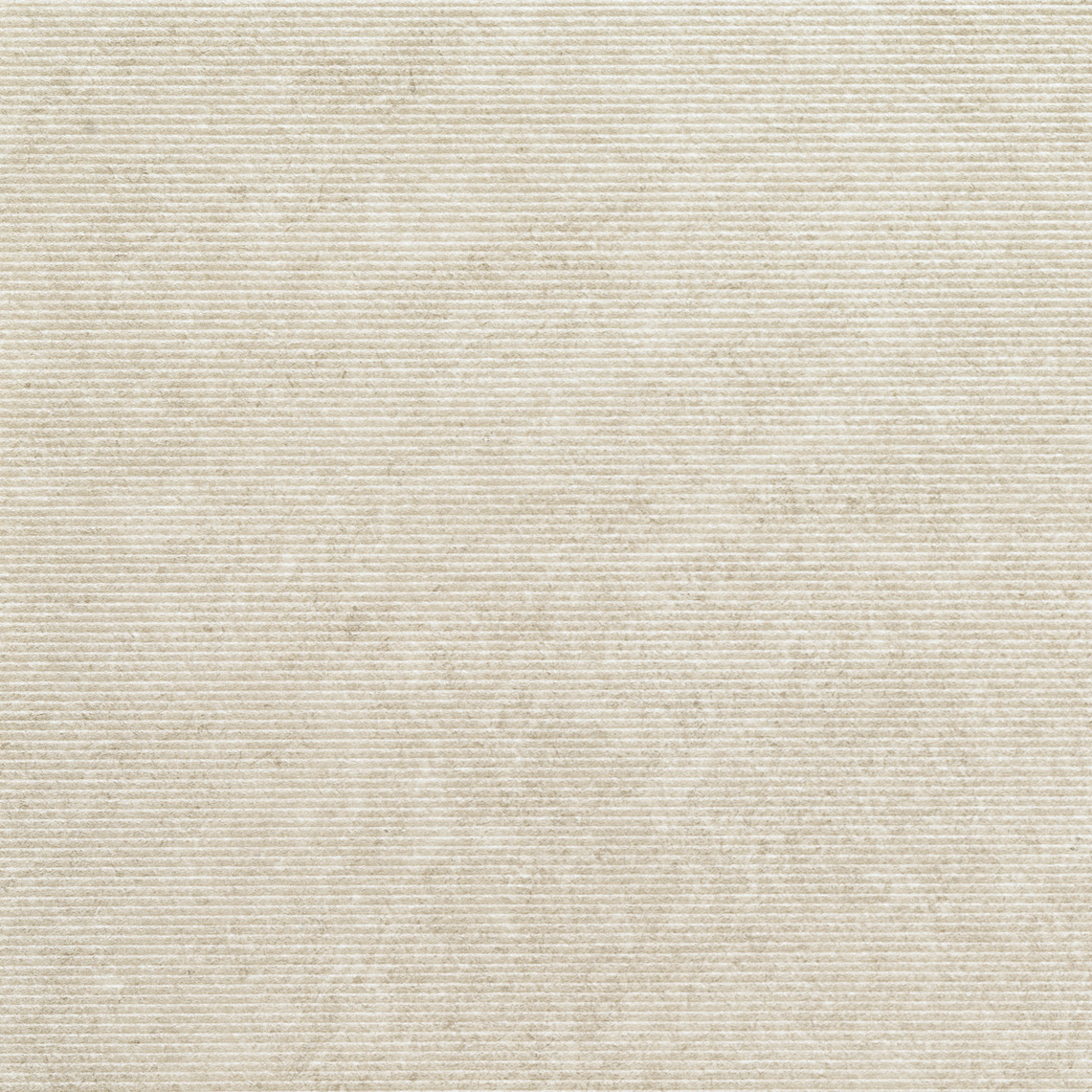

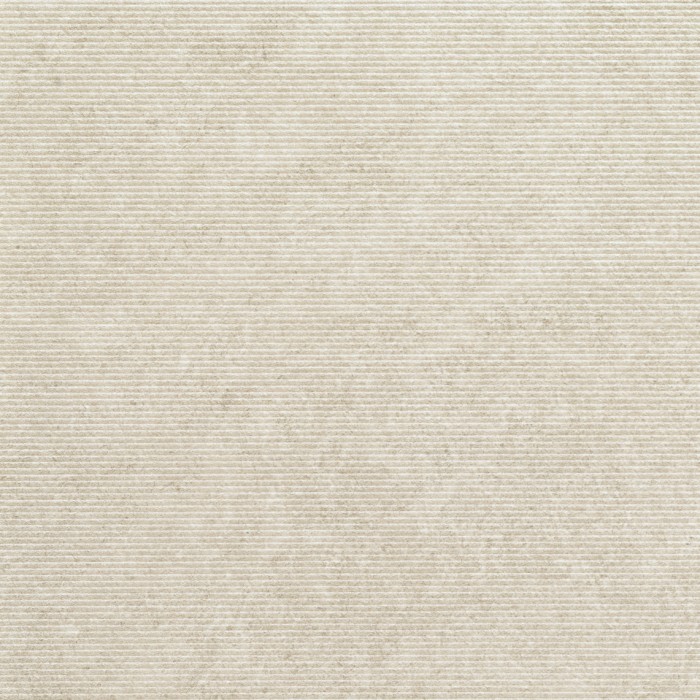

Vezio is a stone-effect porcelain tile and forms part of our Timeless Range. This tile is offered with a Structured finish. To order a Vezio tile sample in Structured finish click the Order Sample button below.

Vezio Product Story

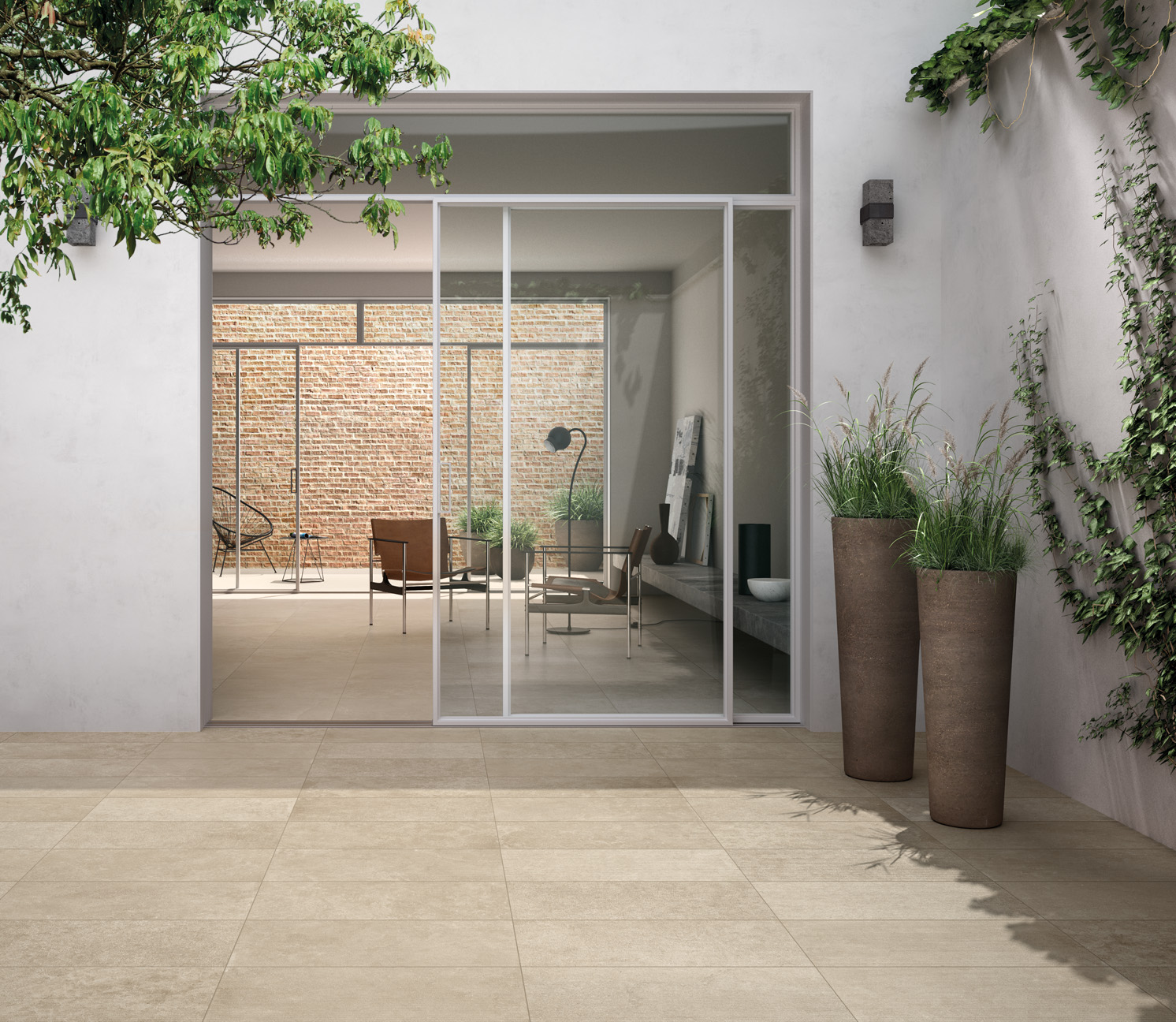

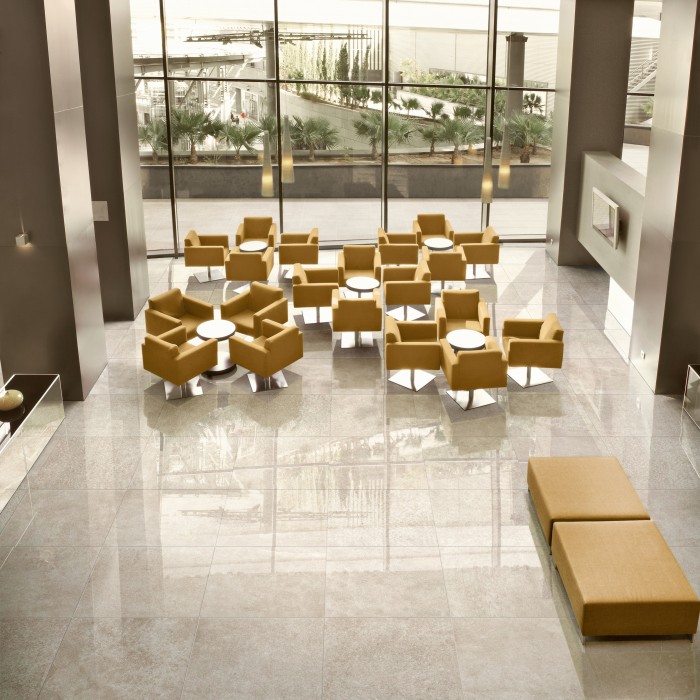

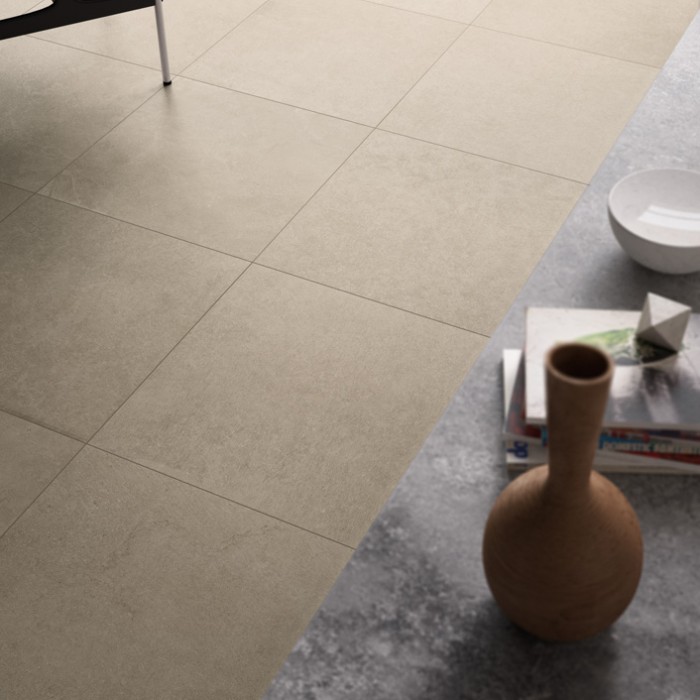

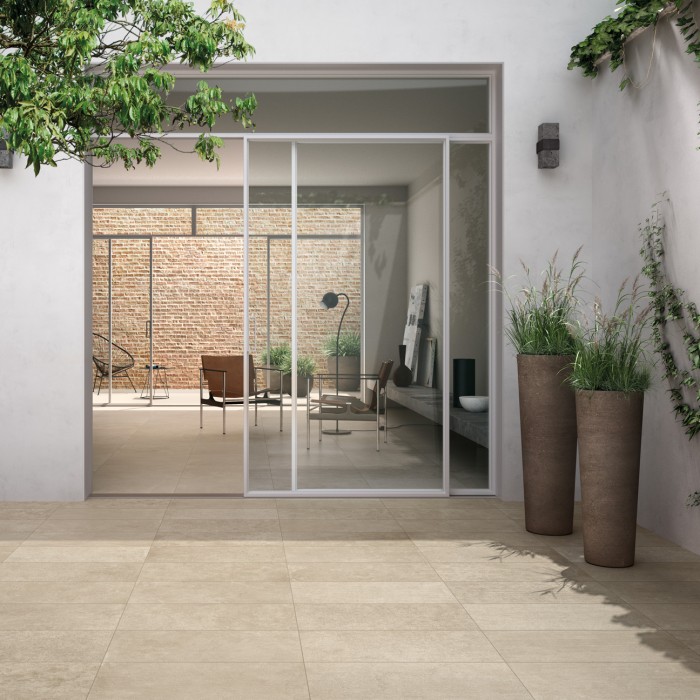

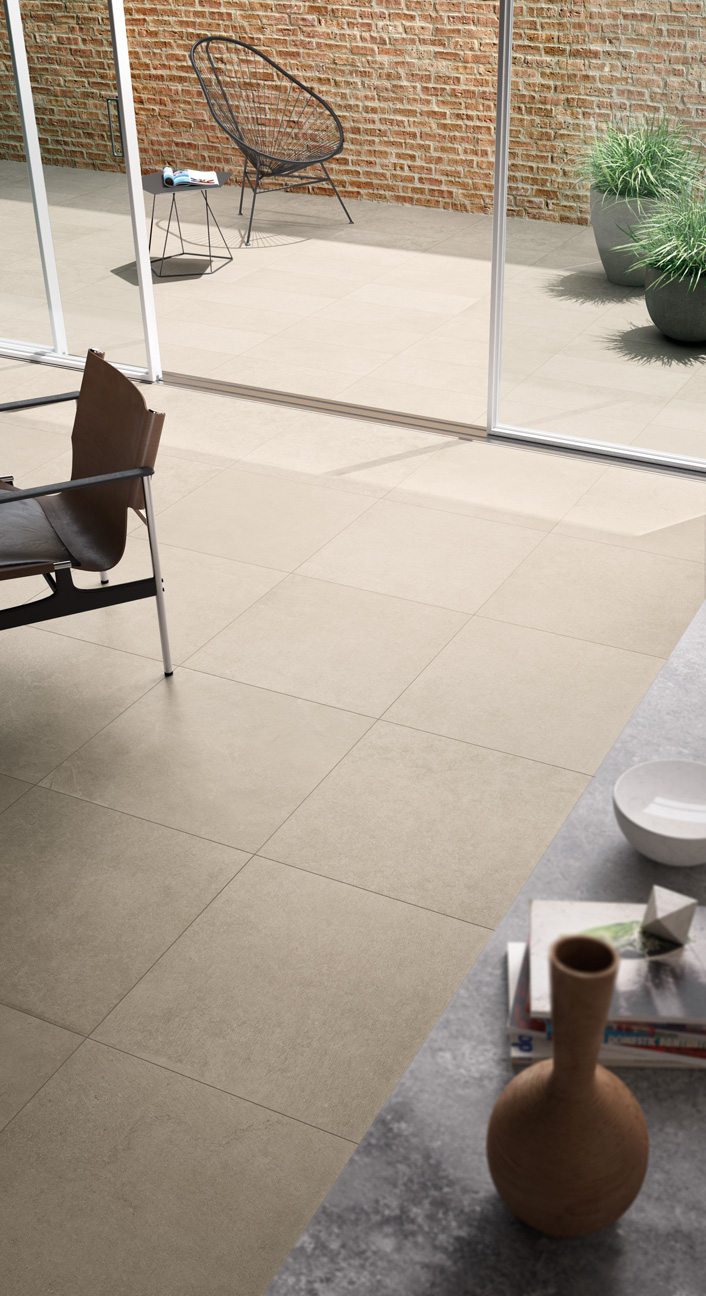

A subtle interpretation of natural stone and available in five neutral tones, Timeless is an enduring and atmospheric range, exclusive to our Stone Collection. With its five sizes and three finishes, Timeless has the charm for contemporary living and the strength for larger commercial spaces. Available in Natural, Polished and Structured (R11 slip rated) finishes, Timeless is ideally suited to both indoor and outdoor applications. The Structured finish in particular, with its precise ridges, is ideal for a wet room or pool complex and has helped Timeless become one of our most popular collections. Timeless is also accompanied by imposing decorative pieces, including the three-dimensional surfaces of ‘Muretto' and unique to this range, ‘3D Design’. Vezio is part of our Stone-effect Collection.

Vezio Decorative Options

Size & finish

ColourFinishSize(MM)
Bindo | Carbonio | Cotone | Talco | VezioNatural450 x 900 x 11
Bindo | Carbonio | Cotone | Talco | VezioPolished450 x 900 x 11
Bindo | Carbonio | Cotone | Talco | VezioNatural800 x 800 x 11
Bindo | Carbonio | Cotone | Talco | VezioPolished800 x 800 x 11
Bindo | Carbonio | Cotone | Talco | VezioNatural600 x 600 x 9.5
Bindo | Carbonio | Cotone | Talco | VezioPolished600 x 600 x 9.5
Bindo | Carbonio | Cotone | Talco | VezioNatural300 x 600 x 9.5
Bindo | Carbonio | Cotone | Talco | VezioPolished300 x 600 x 9.5
Bindo | Carbonio | Cotone | Talco | VezioStructured300 x 600 x 9.5
Bindo | Carbonio | Cotone | Talco | VezioNatural100 x 300 x 9.5

Alternative Colours

The Timeless Range is also available in the following colours and finishes:

  • Bindo – Natural
    Bindo – Natural
  • Bindo – Polished
    Bindo – Polished
  • Bindo – Structured
    Bindo – Structured
  • Carbonio – Natural
    Carbonio – Natural
  • Carbonio – Polished
    Carbonio – Polished
  • Carbonio – Structured
    Carbonio – Structured
  • Cotone – Natural
    Cotone – Natural
  • Cotone – Polished
    Cotone – Polished
  • Cotone – Structured
    Cotone – Structured
  • Talco – Natural
    Talco – Natural
  • Talco – Polished
    Talco – Polished
  • Talco – Structured
    Talco – Structured
  • Vezio – Natural
    Vezio – Natural
  • Vezio – Polished
    Vezio – Polished
  • Vezio – Structured
    Vezio – Structured
  • Muretto Bindo – Natural
    Muretto Bindo – Natural
  • Muretto Carbonio – Natural
    Muretto Carbonio – Natural
  • Muretto Cotone – Natural
    Muretto Cotone – Natural
  • Muretto Talco – Natural
    Muretto Talco – Natural
  • Muretto Vezio – Natural
    Muretto Vezio – Natural
  • 3D Design Bindo – Natural
    3D Design Bindo – Natural
  • 3D Design Carbonio – Natural
    3D Design Carbonio – Natural
  • 3D Design Cotone – Natural
    3D Design Cotone – Natural
  • 3D Design Talco – Natural
    3D Design Talco – Natural
  • 3D Design Vezio – Natural
    3D Design Vezio – Natural

Related Tiles

In addition to Vezio, we also offer a number of other beige stone-effect porcelain tiles.

Discover similar tiles

Decors

Unique to Timeless is 3D Design, with its 3D surfaces capturing the light throughout the day creating a contemporary wall of contrasting facets. This captivating 300 x 600 mm tile is offered in all five colourways.

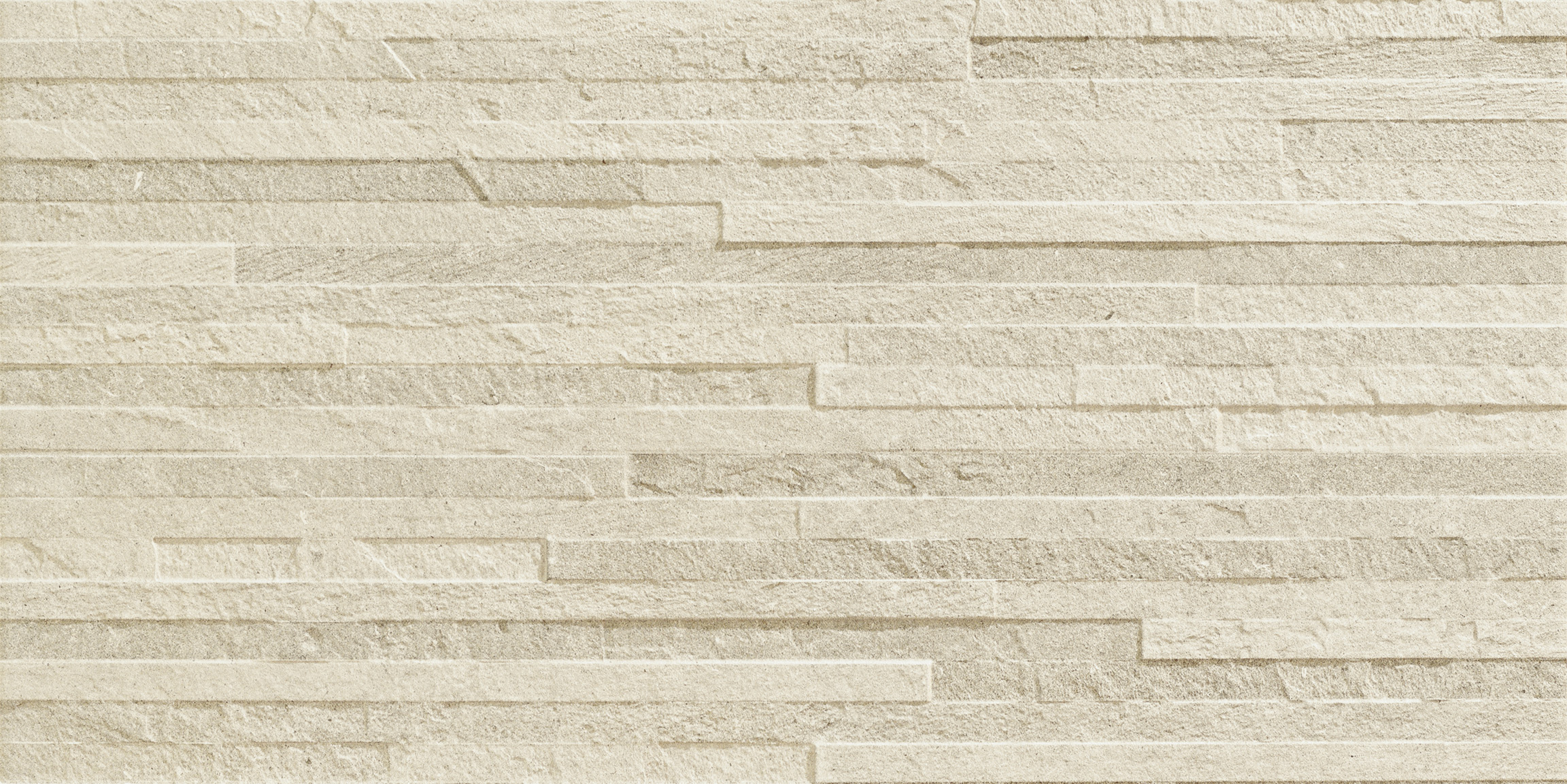

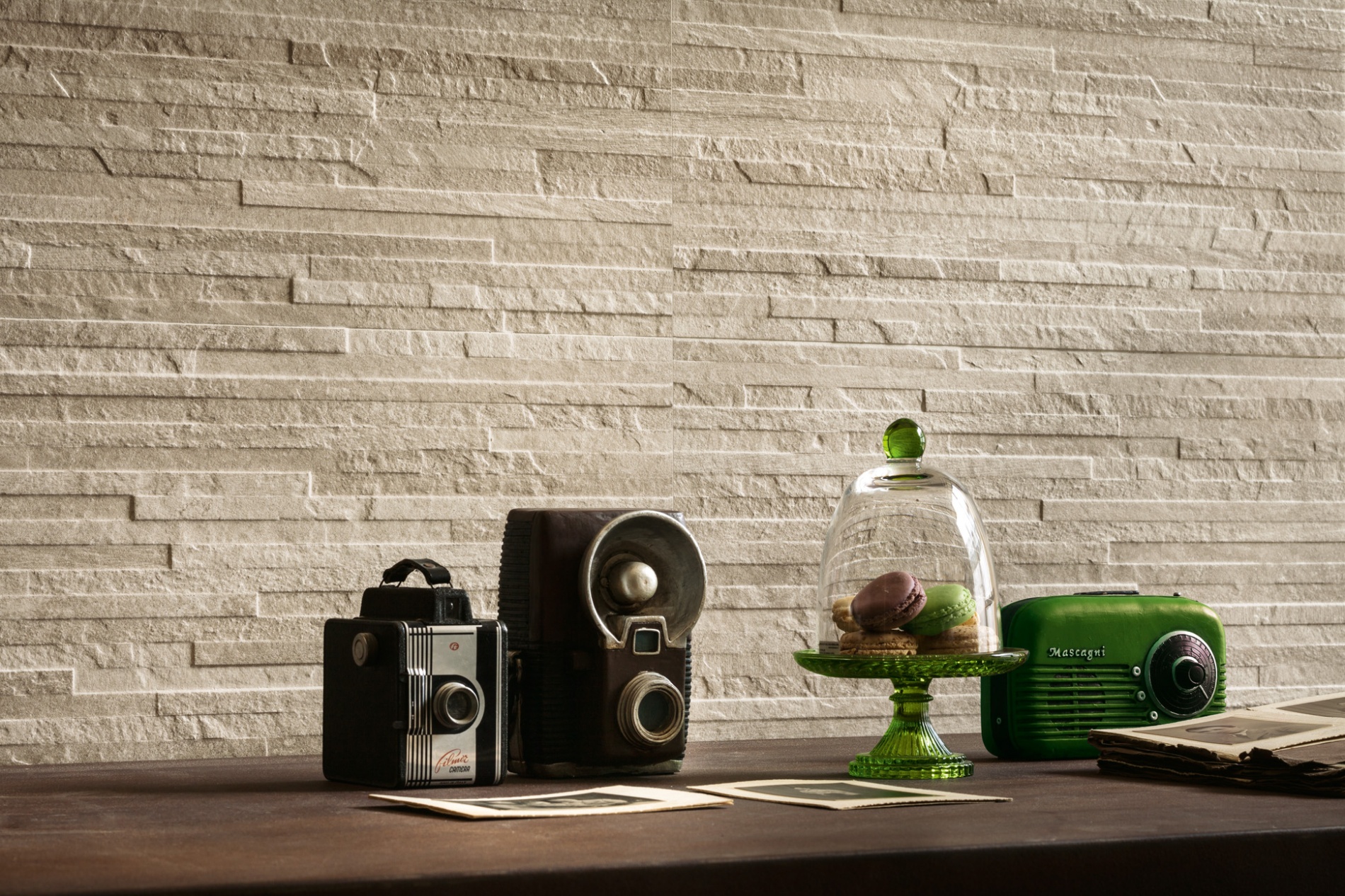

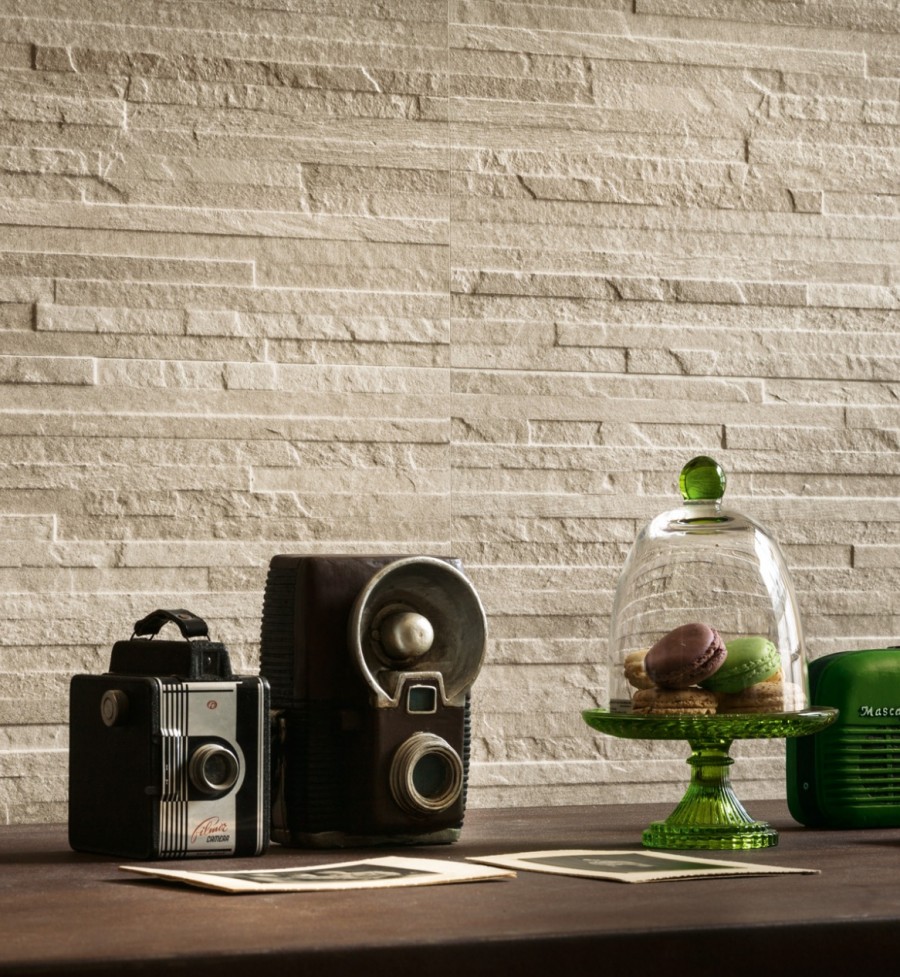

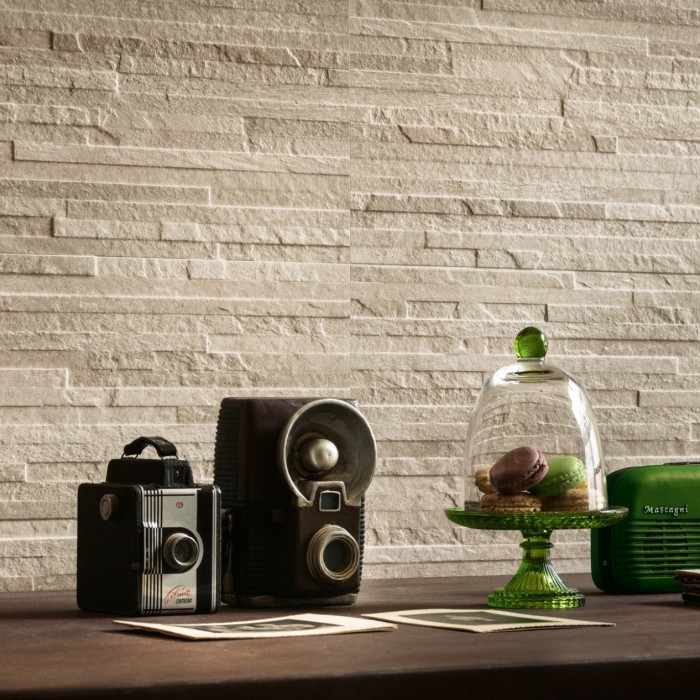

The Muretto option is particularly effective within Timeless and will transform any space when used as a high impact feature wall or dramatic focal point. Available in five colourways Muretto is supplied on 300 x 600 mm tiles.

DetailColourFinishSize(MM)
3D DesignBindo | Carbonio | Cotone | Talco | VezioNatural300 x 600 x 9.5
MurettoBindo | Carbonio | Cotone | Talco | VezioNatural300 x 600 x 9.5

Special Pieces & Mosaics

DetailColourFinishSize(MM)
Mosaic (Chip Size 16x16mm)Bindo | Carbonio | Cotone | Talco | VezioPolished300 x 300 x 9.5

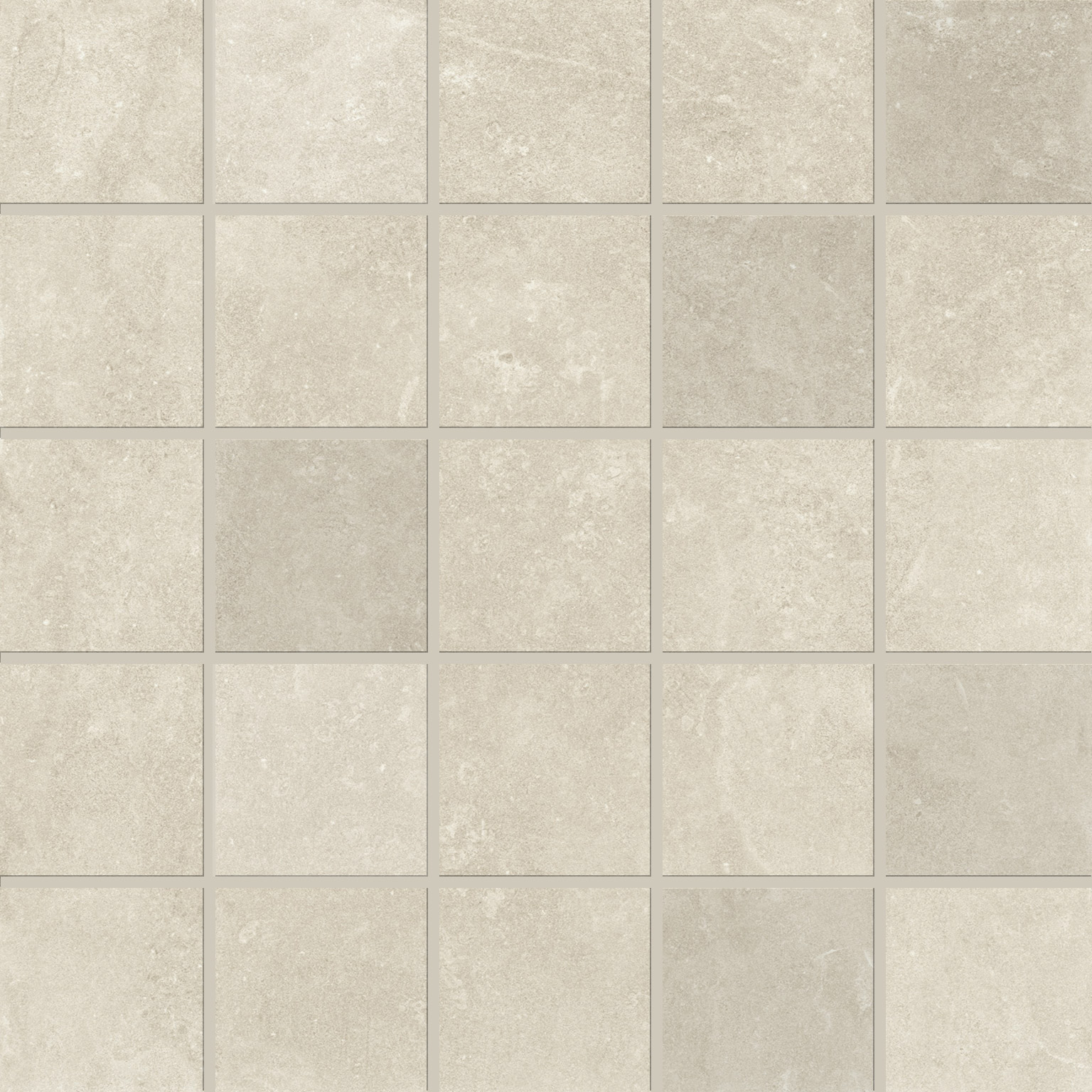

Mosaic (Chip Size 58x58mm)Bindo | Carbonio | Cotone | Talco | VezioNatural300 x 300 x 9.5
Skirting TileBindo | Carbonio | Cotone | Talco | VezioNatural70 x 900 x 11
Skirting TileBindo | Carbonio | Cotone | Talco | VezioPolished70 x 900 x 11
Skirting TileBindo | Carbonio | Cotone | Talco | VezioNatural80 x 800 x 11
Skirting TileBindo | Carbonio | Cotone | Talco | VezioPolished80 x 800 x 11
Skirting TileBindo | Carbonio | Cotone | Talco | VezioNatural80 x 600 x 9.5
Skirting TileBindo | Carbonio | Cotone | Talco | VezioPolished80 x 600 x 9.5
Step Tile - GradinoBindo | Carbonio | Cotone | Talco | VezioNatural300 x 600 x 9.5
Step Tile - GradinoBindo | Carbonio | Cotone | Talco | VezioPolished300 x 600 x 9.5

Technical Specification

Shade Tone Variance

Timeless has been classified: V3 Variation

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Pendulum Test Values (BS 7976-2)

FinishConditionsResultSlip Potential
NaturalDry47
NaturalWet22

Understanding Pendulum Data

The HSE Approved Pendulum Test accurately replicates the Dynamical Coefficient of Friction (COF) or 'Heel Slip' on floor surfaces and is designed to replicate a pedestrian heel strike, the point at which most slips occur.

The pendulum test readings obtained are referred to as either the Slip Resistance Value (SRV) or Pendulum Test Value (PTV). When the test is operated properly, the PTV should be interpreted as shown in the table below. This table relates to pedestrians walking in a straight line on a level surface. It can be used to accurately test the slip potential on dry or contaminated floors.

PTVSlip Potential
0 - 24High
25 - 35Moderate
36 +Low

See British Standard BS 7976-2 for more information on conducting Floor Pendulum Testing on pedestrian surfaces. Pendulum Test Certificate available on request.

Ramp Test Values (DIN 51130)

Finish/StyleR Rating ValueFriction
NaturalR10
StructuredR11

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

SpecificationTest MethodsRequired ValueManufacturers mean value
Length and widthISO 10545-2±0.6%Conforms
ThicknessISO 10545-2±5%Conforms
Warpages of edgesISO 10545-2±0.5%Conforms
WedgingISO 10545-2±0.5%Conforms
FlatnessISO 10545-2±0.5%Conforms
Water AbsorptionISO 10545-3≤ 0.5%Conforms
Bending StrengthISO 10545-4≥35N/mm²Conforms
Linear thermal expansion between 20C and 100CISO 10545-8According to manufacturers specificationsOn Request
Thermal Shock ResistanceISO 10545-9On RequestResistant
Frost ResistanceISO 10545-12On RequestResistant
Resistance to chemical attackISO 10545-13According to manufacturers specificationsResistant
Stain ResistanceISO 10545-14Test method availableConforms
Slip ResistanceDIN 51130-Natural - R10

Timeless is ECOLABEL and LEED® certified.

Download PDF Catalogue

You can download the Timeless PDF catalogue here. Further catalogues are available on our catalogue page. You can call us on 020 8731 6787 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles.

Ordering tile samples

To order Vezio – Structured tile samples please click this order button:

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 120 x 120 mm or 150 x 150 mm format. For more complex or subtle patterned tiles, we provide 150 x 300 mm format samples.

Environmentally Certified

Porcelain tiles are sustainable and environmentally certified and contain no harmful chemicals. They are made with 100% natural minerals and are frost resistant making them ideal for interior and exterior applications. Combining beauty with strength and possessing an ability to influence both lifestyle and emotion, porcelain tiles have become the new luxury surface covering. Expressing a style that demonstrates new forms of elegance and a versatility that caters for modern and traditional tastes, porcelain has the power to shape design trends.

Our Italian collection is carefully selected and regularly updated and uses the most advanced manufacturing techniques. This ensures we maintain the highest level of quality and performance without harming the environment.

Timeless is ECOLABEL and LEED® certified.

LEED® certification

LEED<sup>®</sup> certified

LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.
