Coal Line Natural Finish

1

Size

Variation

V2
6

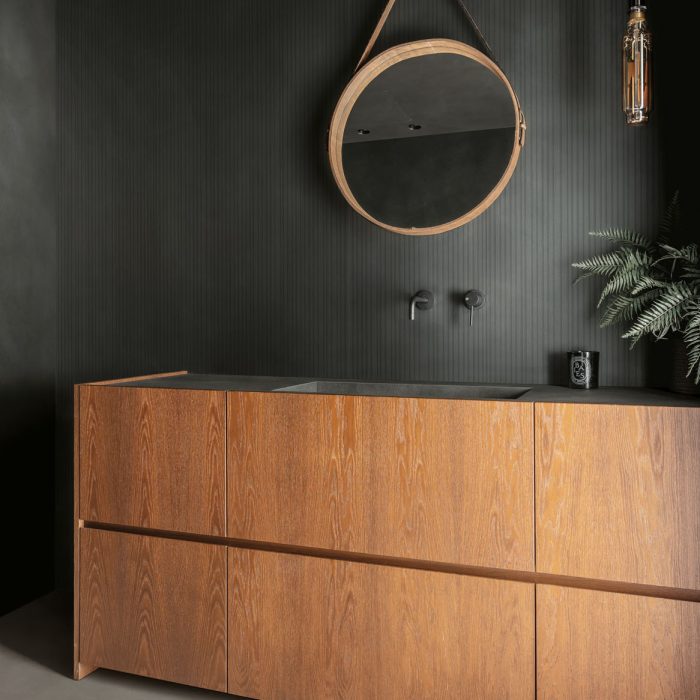

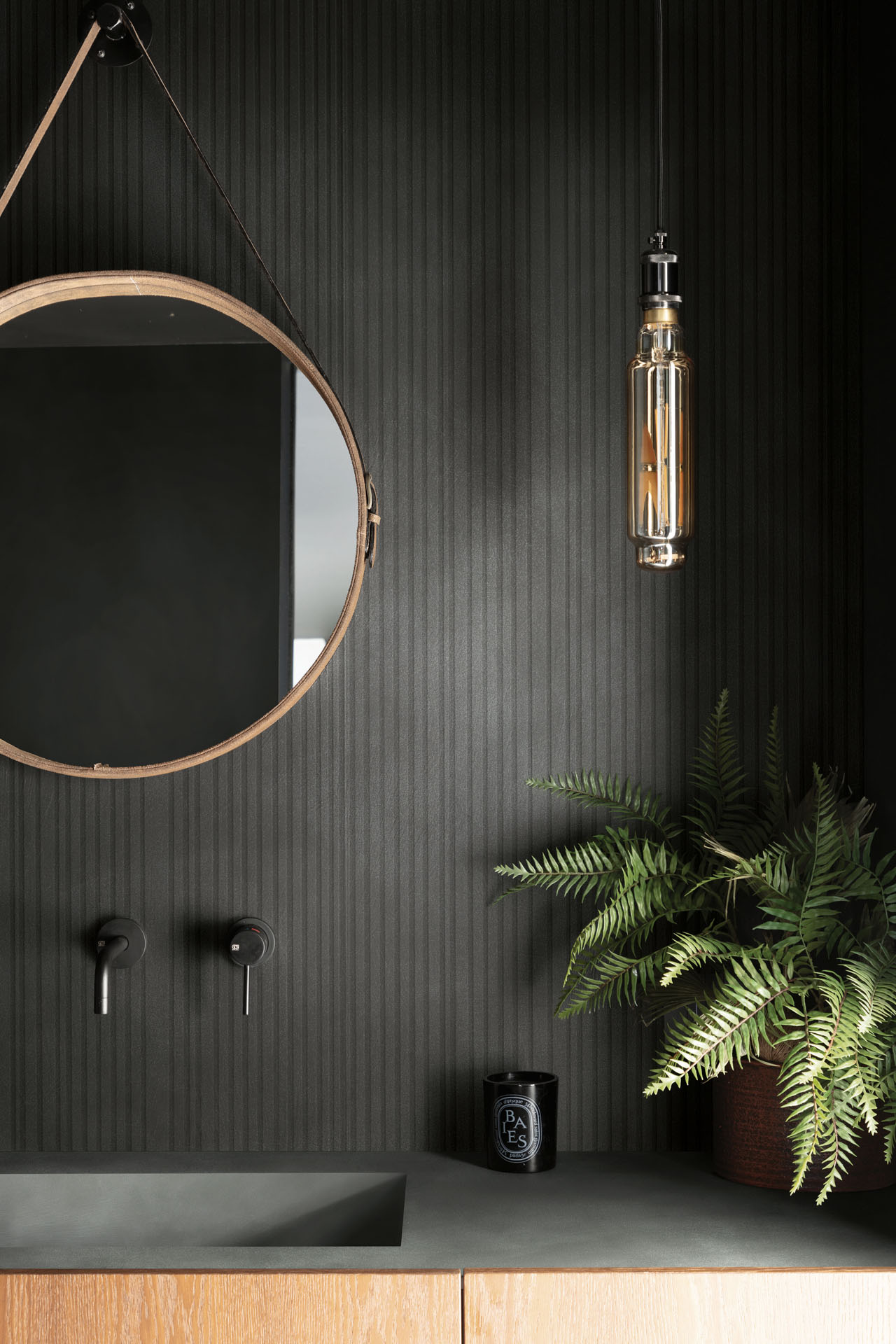

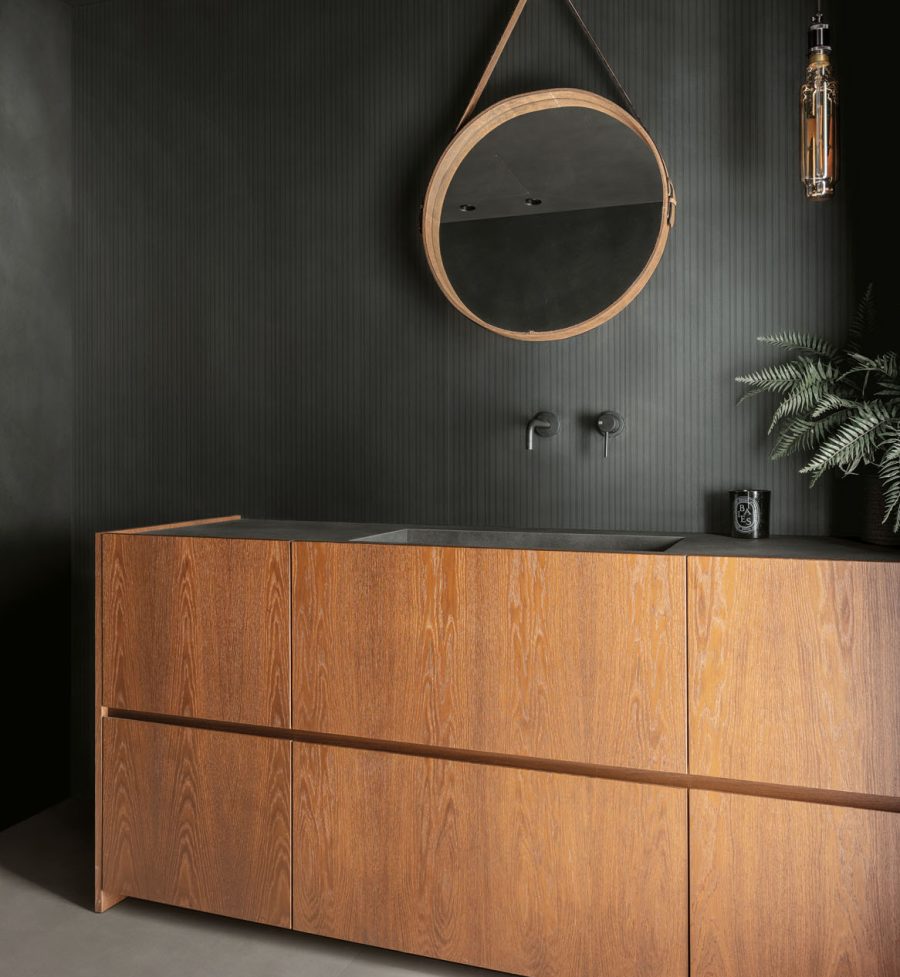

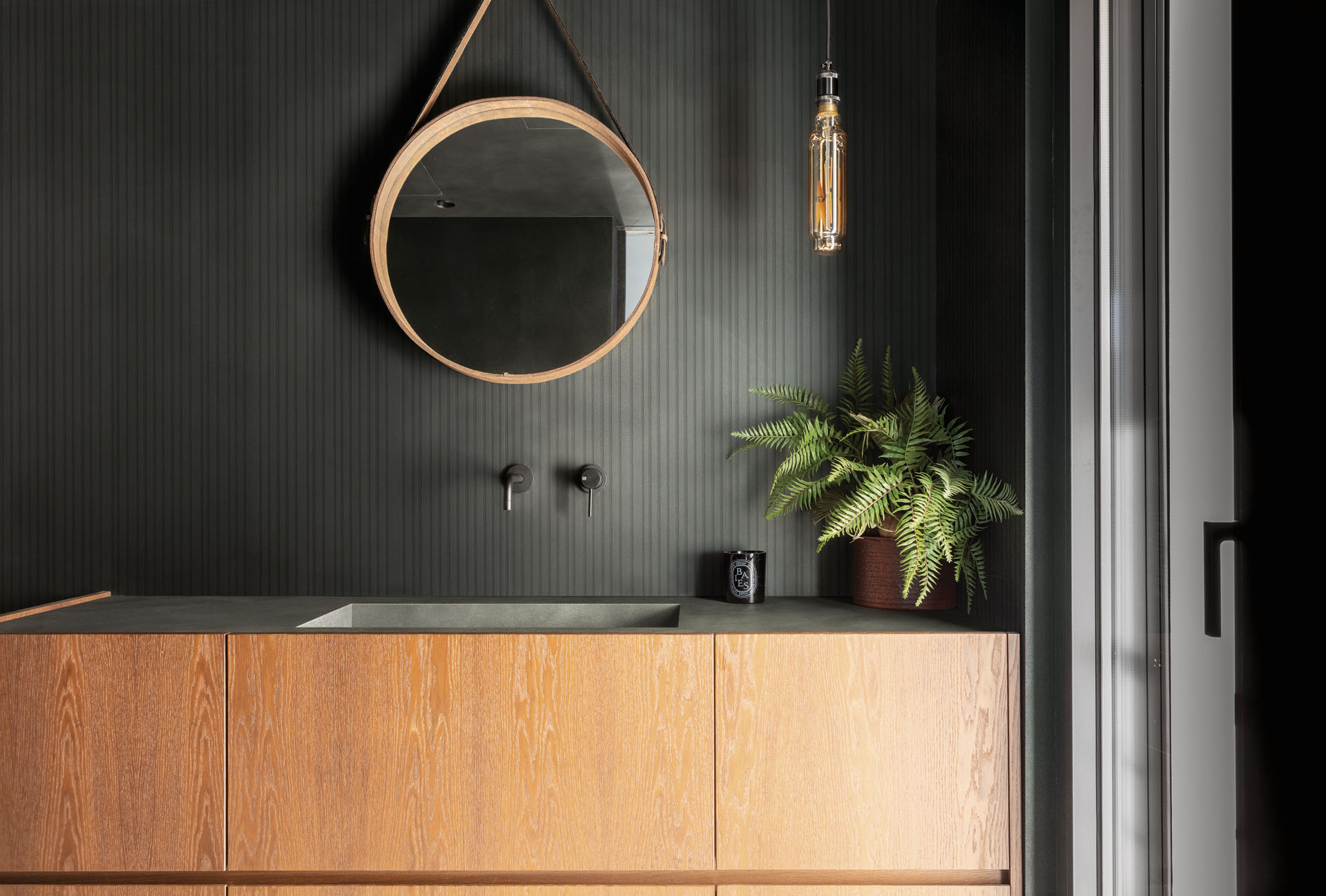

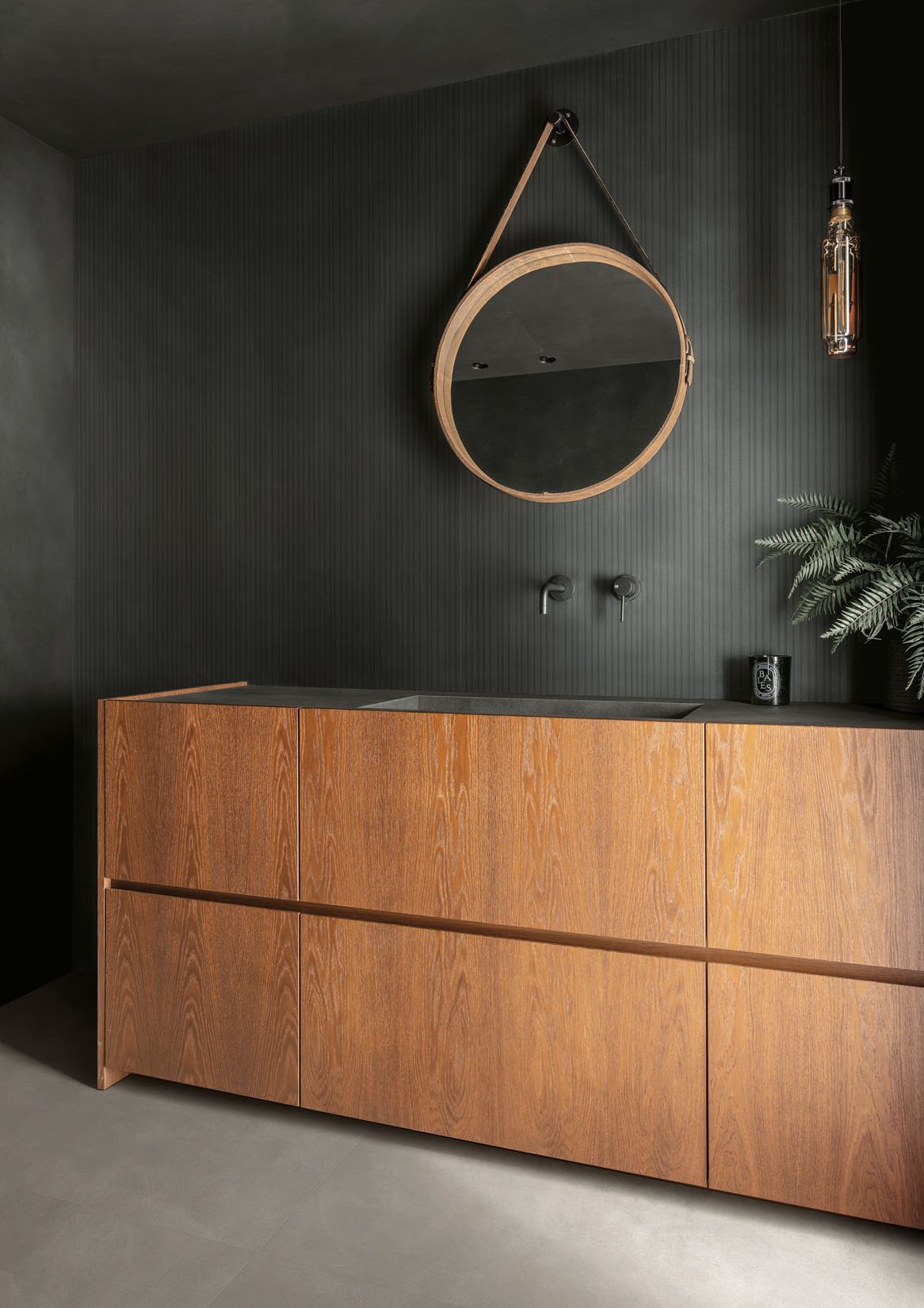

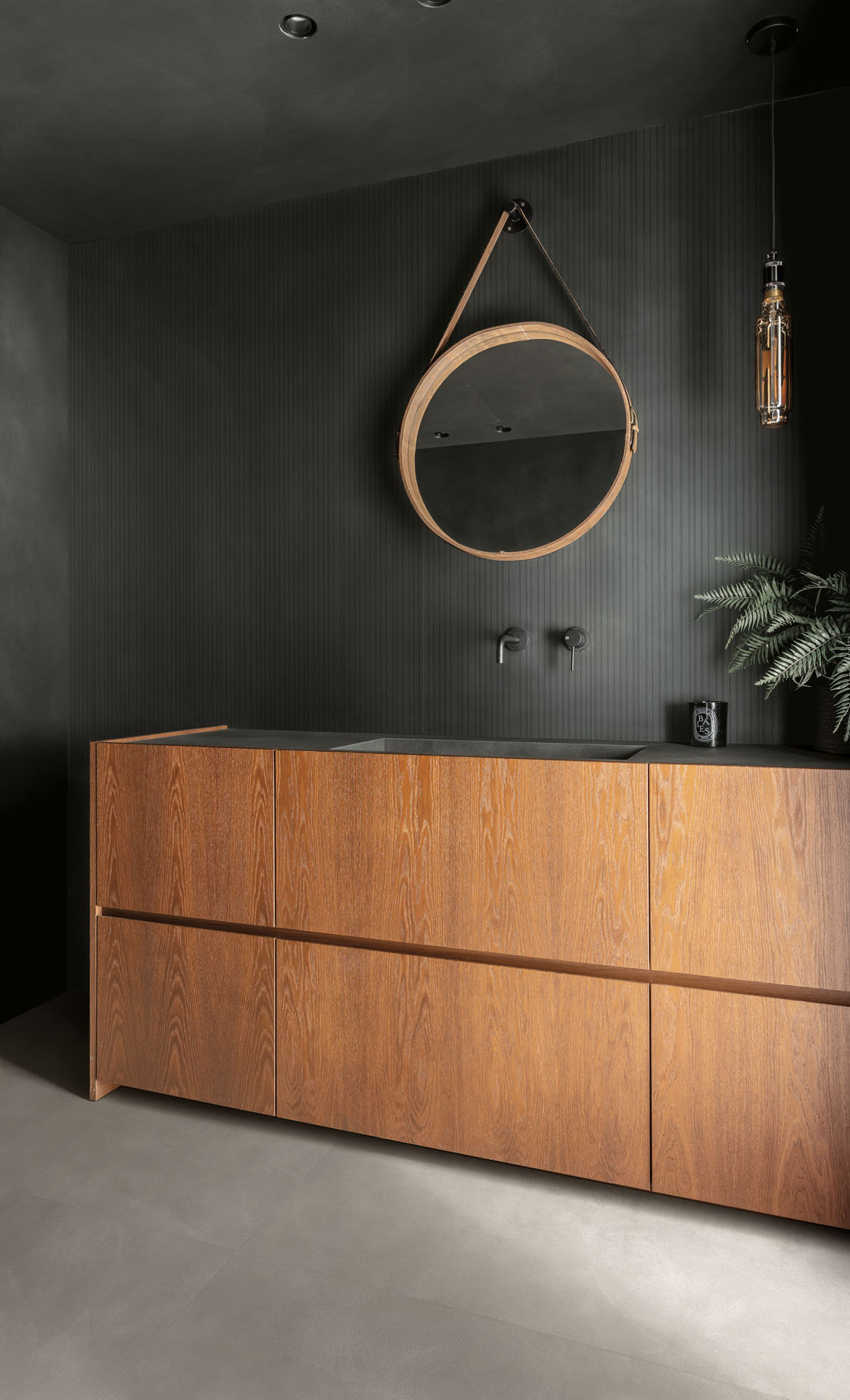

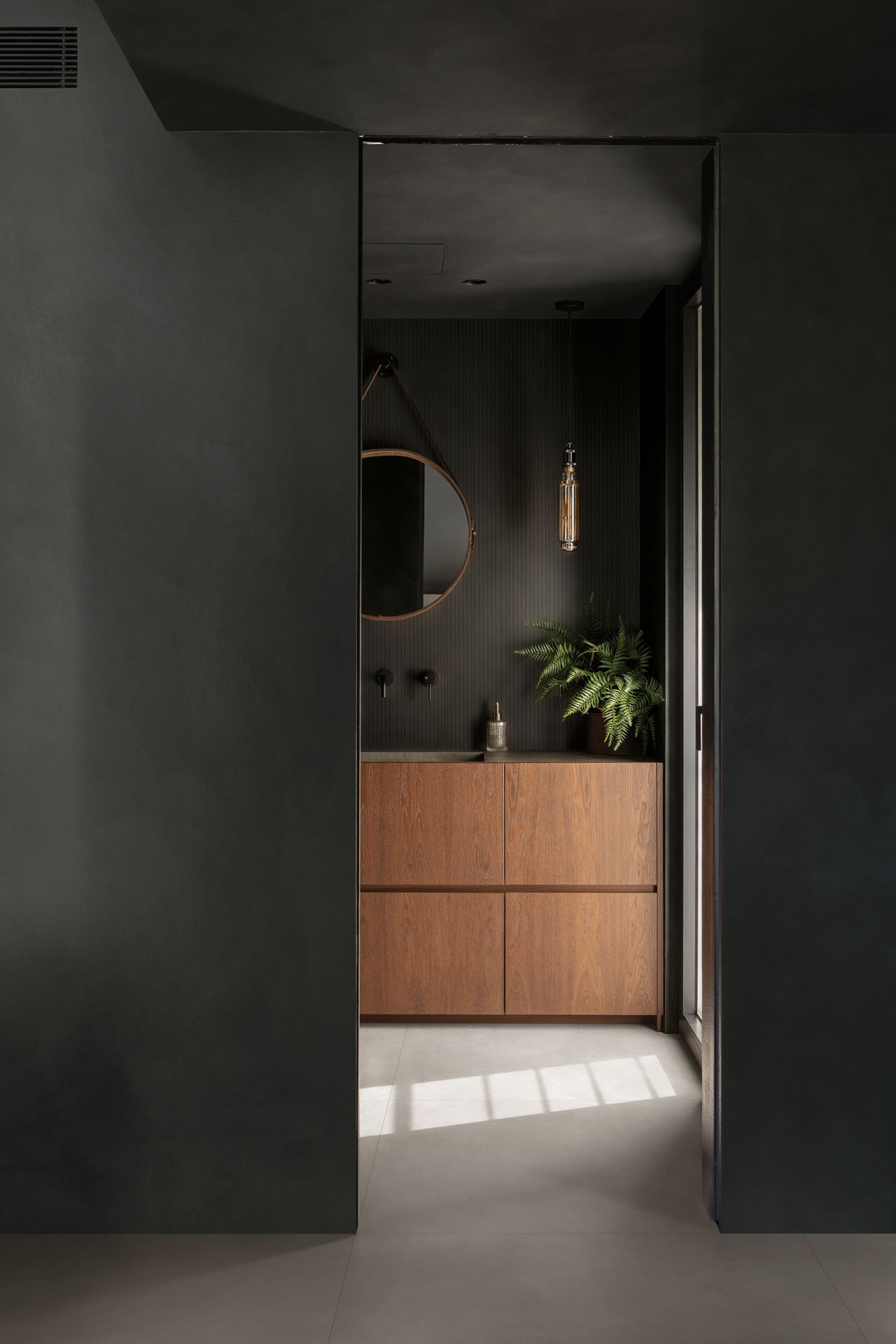

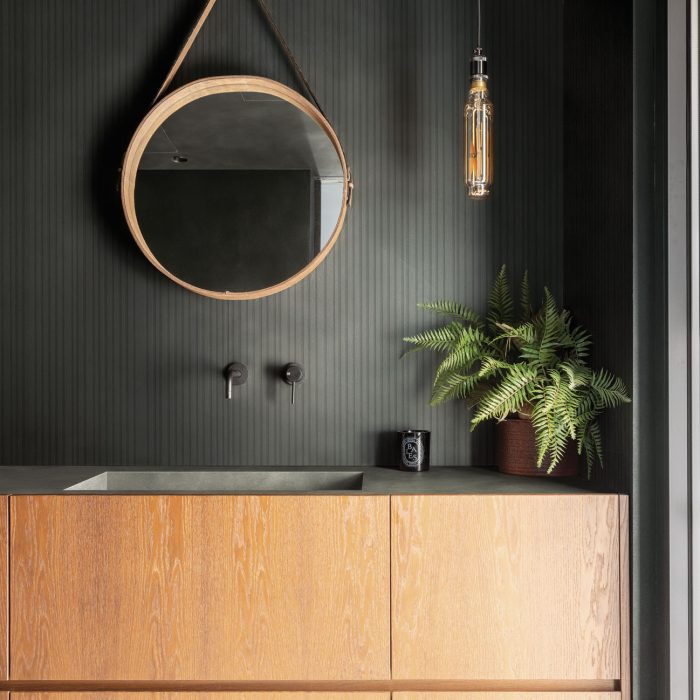

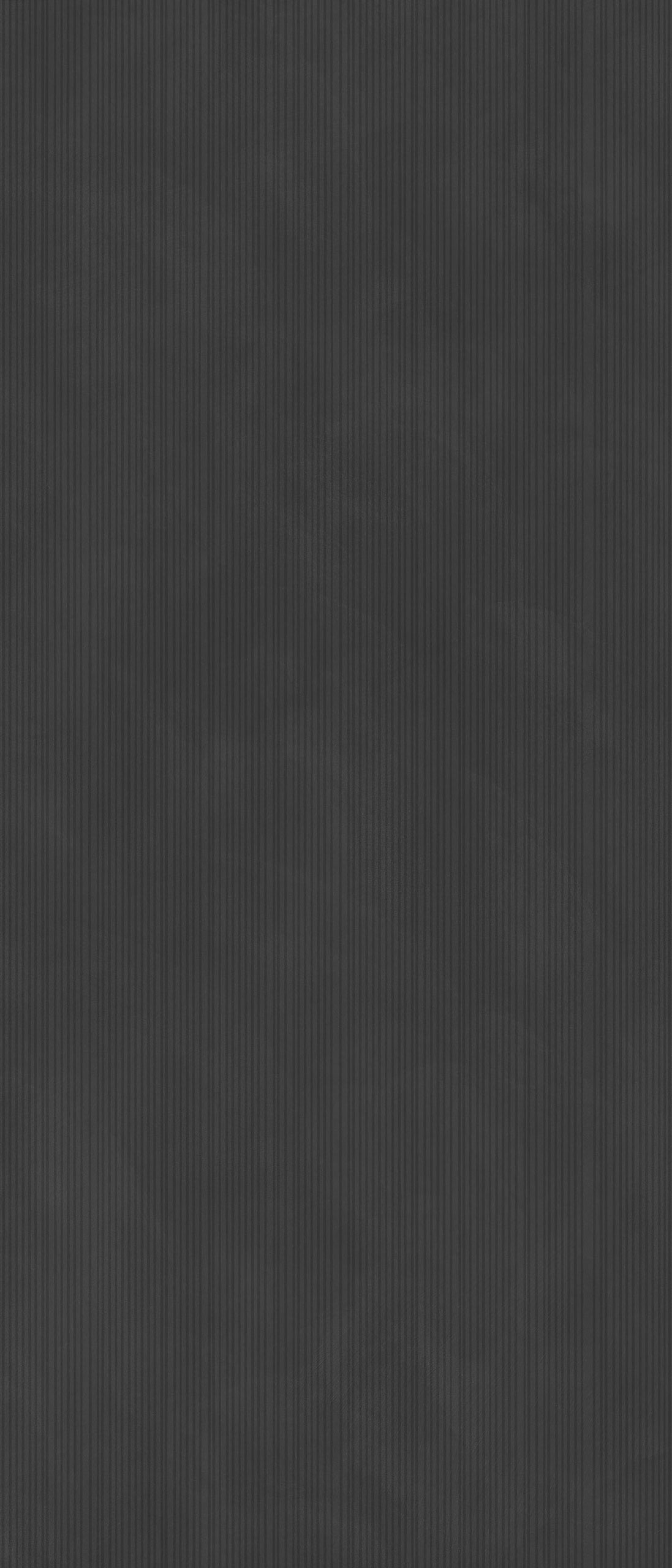

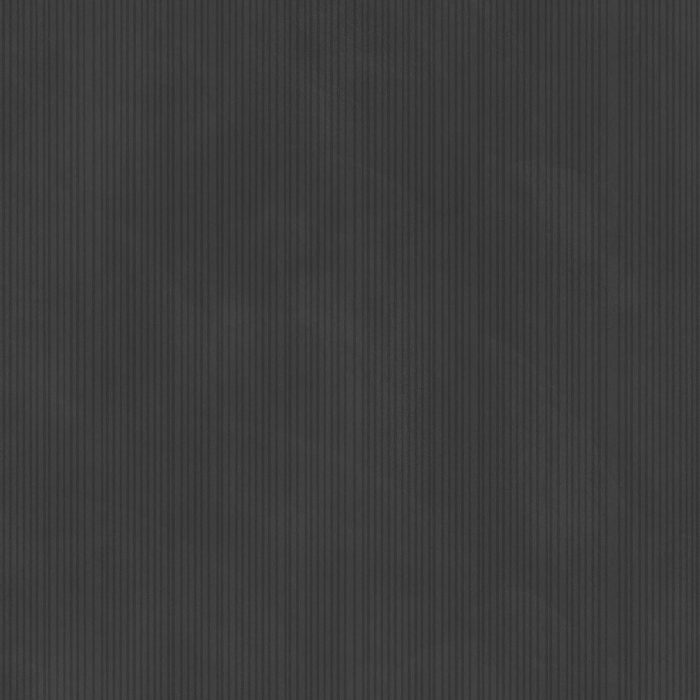

Coal Line is a concrete-effect porcelain slab and forms part of our Equilibrio Range. This slab is offered with a Natural finish. To order a Coal Line colour sample in Natural finish click the Order Sample button below or add to your favourites using the icon.

1200 x 2800

Coal Line Product Story

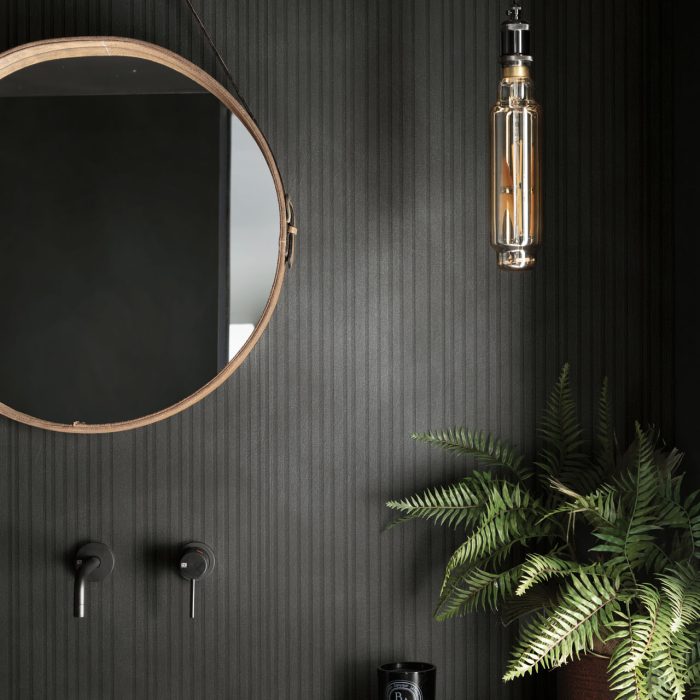

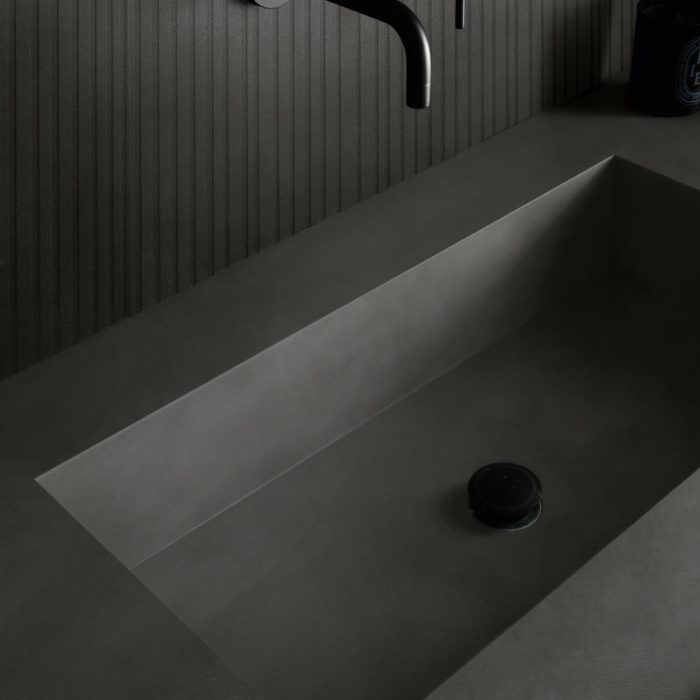

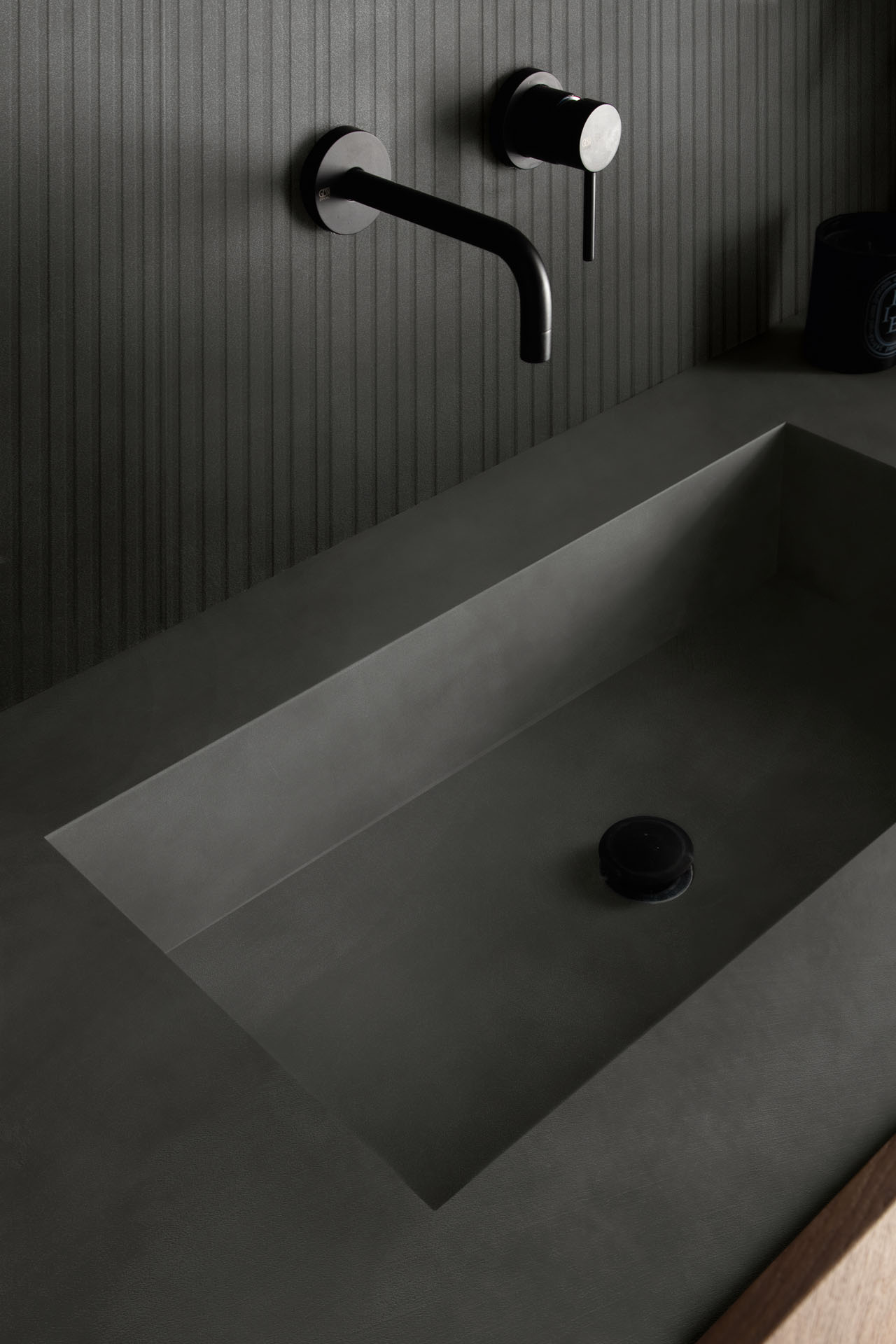

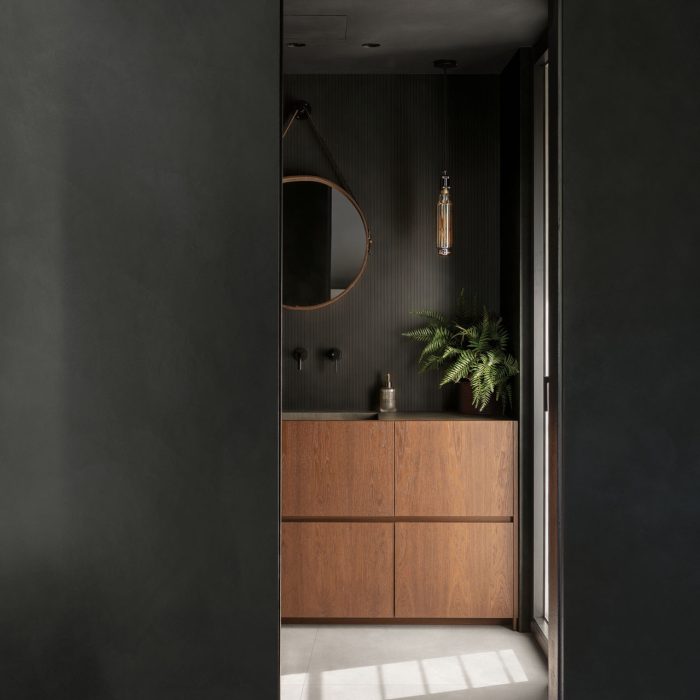

Featuring a curated palette of cool hues and contemporary tones, "Equilibrio" offers true architectural versatility. Whether used independently or in combination with other materials, our latest concrete collection of porcelain tiles provides essential balance to your designs. Use this collection to create harmony with bold patterns and striking feature walls. Available in large and standard formats, (with R10 and R11 slip ratings), Equilibrio is perfect for both residential and commercial applications with its diverse colour options. While its cohesive and contemporary aesthetic can enhance spatial harmony and design integrity. Each hue is also available in the "Line" variant, characterised by a three-dimensional pinstripe relief that adds interest and texture to your vertical surfaces. Coal Line is part of our  Concrete-effect  Collection.

Size & finish

Colour Finish Size (MM)
Alabaster | Alabaster Line | Coal | Coal Line | Mocha | Mocha Line | Olive Green | Olive Green Line | Pale Grey | Pale Grey Line | Slate Grey | Slate Grey Line | Stone | Stone Line | Storm Blue | Storm Blue Line | Wine Red | Wine Red Line Natural 1200 x 2800 x 6
Alabaster | Coal | Mocha | Olive Green | Pale Grey | Slate Grey | Stone | Storm Blue | Wine Red Natural 1200 x 2400 x 6
Alabaster | Coal | Mocha | Olive Green | Pale Grey | Slate Grey | Stone | Storm Blue | Wine Red Natural 1200 x 1200 x 9
Alabaster | Coal | Mocha | Olive Green | Pale Grey | Slate Grey | Stone | Storm Blue | Wine Red Natural 1200 x 1200 x 6
Alabaster | Pale Grey | Slate Grey | Stone Grip 600 x 1200 x 9
Alabaster | Coal | Mocha | Olive Green | Pale Grey | Slate Grey | Stone | Storm Blue | Wine Red Natural 600 x 1200 x 9
Alabaster | Coal | Mocha | Olive Green | Pale Grey | Slate Grey | Stone | Storm Blue | Wine Red Natural 600 x 1200 x 6

Related Tiles

In addition to Coal Line, we also offer a number of other black concrete-effect porcelain tiles.

Discover similar tiles

Alternative Colours

The Equilibrio Range is also available in the following colours and finishes:

  • Alabaster – Grip
    Alabaster – Grip
  • Alabaster – Natural
    Alabaster – Natural
  • Alabaster Line – Natural
    Alabaster Line – Natural
  • Coal – Natural
    Coal – Natural
  • Coal Line – Natural
    Coal Line – Natural
  • Mocha – Natural
    Mocha – Natural
  • Mocha Line – Natural
    Mocha Line – Natural
  • Olive Green – Natural
    Olive Green – Natural
  • Olive Green Line – Natural
    Olive Green Line – Natural
  • Pale Grey – Grip
    Pale Grey – Grip
  • Pale Grey – Natural
    Pale Grey – Natural
  • Pale Grey Line – Natural
    Pale Grey Line – Natural
  • Slate Grey – Grip
    Slate Grey – Grip
  • Slate Grey – Natural
    Slate Grey – Natural
  • Slate Grey Line – Natural
    Slate Grey Line – Natural
  • Stone – Grip
    Stone – Grip
  • Stone – Natural
    Stone – Natural
  • Stone Line – Natural
    Stone Line – Natural
  • Storm Blue – Natural
    Storm Blue – Natural
  • Storm Blue Line – Natural
    Storm Blue Line – Natural
  • Wine Red – Natural
    Wine Red – Natural
  • Wine Red Line – Natural
    Wine Red Line – Natural

Technical Specification

Shade Tone Variance

Coal Line – Natural has been classified: V2

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Ramp Test Values (DIN 51130)

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

Specification Test Standard Required Value Average Value
Length And Width ISO 10545-2 ± 0.3% Max ± 0.15%
Thickness ISO 10545-2 ± 5% Max ± 5%
Linearity ISO 10545-2 ± 0.3% Max ± 0.1%
Wedging ISO 10545-2 ± 0.3% Max ± 0.2%
Warpage ISO 10545-2 ± 0.4% Max ± 0.35%
Water Absorption ISO 10545-3 ≤ 0.5% ≤ 0.08%
Deep Abrasion Resistance ISO 10545-7 <175mm3 140mm3
Resistance To Thermal Shocks ISO 10545-9 Testing Method Available Resistant
Frost Resistance ISO 10545-12 Must Not Produce Noticeable Alteration To Surface Conforms
Chemical Resistance ISO 10545-13 Testing Method Available On Request
Stain Resistance ISO 10545-14 Testing Method Available Classe 4-5

Equilibrio is ECOLABEL and LEED® certified.

Ordering tile samples

To order Coal Line – Natural tile samples please click this order button:

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 10 x 20 cm format.

Environmentally Certified

All our porcelain surfaces are manufactured using sustainable processes that minimise the impact on the environment, conserving both energy & natural resources.

All products are produced without the use of any harmful or radioactive materials, are free from pollutant emissions and will not effect air quality. All packing material is produced with recycled material. Wherever possible, heat generated as a by-product of the manufacturing process is used for electricity generation, making factories energy self sufficient. All waste material that is associated with the supply of the tile surface is fully recyclable.

All products are manufactured using materials from renewable sources. They have a reduced environmental impact throughout their lifespan and no toxic, harmful or polluting substances are used for their composition and production. The materials do not release toxic, harmful or polluting substances

Equilibrio meets the highest standards of quality and environmental regulations and conforms to the following certifications:

LEED®

LEED<sup>®</sup> certified

LEED® (Leadership in Energy and Environmental Design) is the world's most widely used green building rating system by the U.S. Green Building Council. LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.

NSF®

NSF certified

NSF® has facilitated the development of more than 75 standards and protocols for sanitary food equipment, and has certified thousands of products as safe to use in restaurant and commercial kitchen settings. NSF® food equipment standards include requirements for material safety, design, construction and product performance. The products conform to the requirements of NSF/ANSI Standard 51 – Food Equipment Materials. NSF/ANSI 51 establishes minimum public health and sanitation requirements for materials and finishes used in the manufacture of commercial foodservice equipment.

GREENGUARD

GREENGUARD certified

GREENGUARD Certification ensures that a product meets stringent standards for minimal emissions of volatile organic compounds (VOCs) into indoor air. This program provides assurance that products designed for indoor use adhere to strict chemical emissions limits, fostering the creation of healthier interiors. Manufacturers with GREENGUARD Certification gain credibility for their sustainability claims, supported by empirical technical data from an unbiased third-party organisation. The GREENGUARD Certification Program instills confidence by ensuring that indoor products meet strict chemical emissions limits, contributing to the creation of healthier interior spaces. This empowers manufacturers to produce and customers to identify products with low chemical emissions, thereby supporting air quality and environmental well-being.
