Corda Grip Finish

2

Sizes

R11

Grip

Variation

V3
20

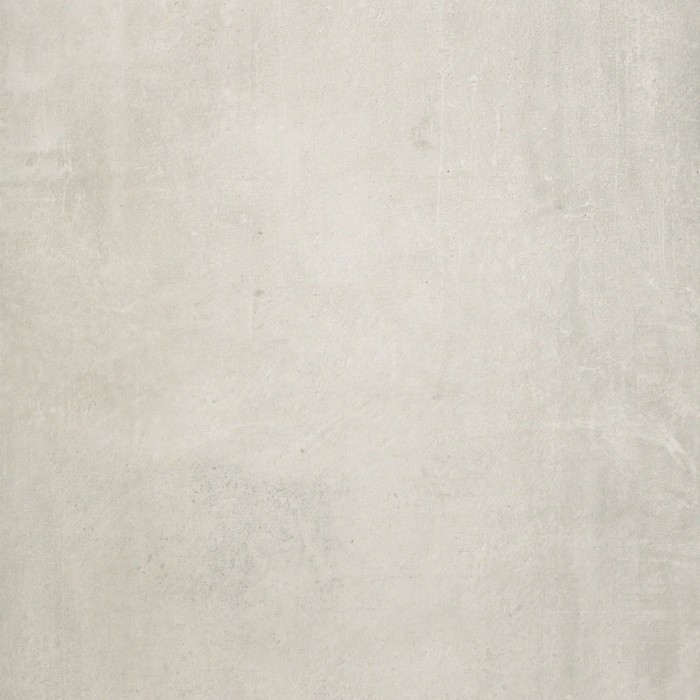

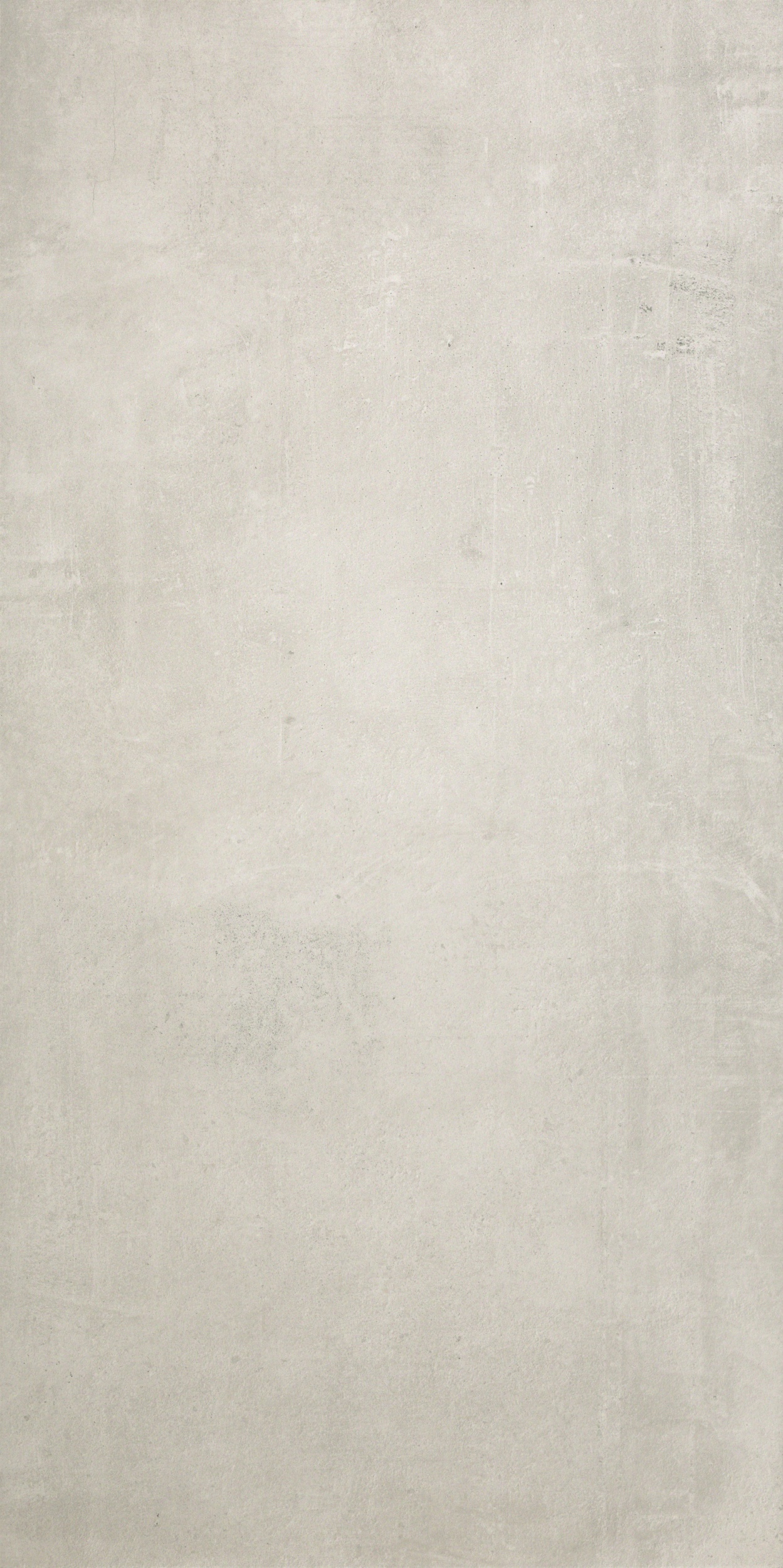

Corda is a concrete-effect porcelain slab and forms part of our Urbe Range. This slab is offered with a Grip finish and is available in 2 sizes. To order a Corda colour sample in Grip finish click the Order Sample button below or add to your favourites using the icon.

600 x 1200

600 x 600

Corda Product Story

Fitting perfectly with today’s architectural trend for industrial materials, Urbe is a contemporary concrete-effect range that is available in six cool shades. Ten sizes are available, including the extra large 1000 x 3000 mm format that looks stunning when used as an internal or external wall covering. Urbe can also be specified in 20 mm thick slabs that can be laid on pedestals or used for outdoor applications, with or without adhesive. As with all our porcelain tiles, Urbe is suitable for use with underfloor heating systems creating a backdrop that displays that industrial feel whilst remaining both comfortable and warm to the touch. Each shade also comes in ‘Weave’, a subtle 600 x 600 mm decor tile which can be used to create an original floor or a spectacular feature wall. Corda is part of our  Concrete-effect  Collection.

Corda Decorative Options

Size & finish

Colour Finish Size (MM)
Fume | Grigio Urbe Natural 1000 x 3000 x 6
Fume | Grigio Urbe Natural 1200 x 2700 x 6
Fume | Grigio Urbe Natural 1000 x 1500 x 6
Corda | Fume | Grigio Urbe Natural 750 x 1500 x 6
Corda | Fume | Grigio Urbe Natural 1200 x 1200 x 6
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Grip 600 x 1200 x 20
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 600 x 1200 x 8
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Structured 600 x 1200 x 8
Avorio | Carbone | Grigio Urbe Grip 1000 x 1000 x 20
Avorio | Corda | Fume | Grigio Urbe Natural 1000 x 1000 x 6
Corda | Fume | Grigio Urbe Natural 750 x 750 x 6
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Grip 600 x 600 x 20
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 600 x 600 x 8
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Structured 600 x 600 x 8
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 300 x 600 x 8
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Structured 300 x 600 x 8

Similar Colours

In addition to Corda, we also offer a number of other beige concrete-effect porcelain tiles.

Discover similar tiles

Urbe Collection

The Urbe Collection is also available in the following colours and finishes:

  • Avorio – Grip
    Avorio – Grip
  • Avorio – Natural
    Avorio – Natural
  • Avorio Weave Decor – Natural
    Avorio Weave Decor – Natural
  • Carbone – Grip
    Carbone – Grip
  • Carbone – Natural
    Carbone – Natural
  • Carbone Weave Decor – Natural
    Carbone Weave Decor – Natural
  • Corda – Grip
    Corda – Grip
  • Corda – Natural
    Corda – Natural
  • Corda Weave Decor – Natural
    Corda Weave Decor – Natural
  • Fume – Grip
    Fume – Grip
  • Fume – Natural
    Fume – Natural
  • Fume Weave Decor – Natural
    Fume Weave Decor – Natural
  • Grigio Urbe – Grip
    Grigio Urbe – Grip
  • Grigio Urbe – Natural
    Grigio Urbe – Natural
  • Grigio Weave Decor – Natural
    Grigio Weave Decor – Natural
  • Nocciola – Grip
    Nocciola – Grip
  • Nocciola – Natural
    Nocciola – Natural
  • Nocciola Weave Decor – Natural
    Nocciola Weave Decor – Natural

Decors Size & Finish

Colour Finish Size (MM) Decor
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 600 x 1200 x 8 Weave
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 600 x 600 x 8 Weave

Special Pieces & Mosaics

Colour Finish Size (MM) Special Piece
Fume | Grigio Urbe Natural 65 x 1000 x 6 Skirting Tile
Fume | Grigio Urbe Natural 65 x 750 x 6 Skirting Tile
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 70 x 600 x 8 Skirting Tile
Avorio | Carbone | Corda | Fume | Grigio Urbe | Nocciola Natural 300 x 300 x 8 Mosaic (Chip Size 50x50mm)

Technical Specification

Shade Tone Variance

Corda – Grip has been classified: V3

Understanding Shade Tone Variance

porcelain tile shade tone variation

Shade, texture and tone can vary from piece to piece within a single tile production run. V1 shade tone variation has little or no change from piece to piece where a V4 might have a substantial variety of shade, texture and tone variation.

Variance RatingDescription
V1Uniform Appearance
V2Slight Variation
V3Moderate Variation
V4Substantial Variation

Pendulum Test Values (BS 7976-2)

FinishConditionsResultSlip Potential
NaturalDry64
NaturalWet45

Understanding Pendulum Data

The HSE Approved Pendulum Test accurately replicates the Dynamical Coefficient of Friction (COF) or 'Heel Slip' on floor surfaces and is designed to replicate a pedestrian heel strike, the point at which most slips occur.

The pendulum test readings obtained are referred to as either the Slip Resistance Value (SRV) or Pendulum Test Value (PTV). When the test is operated properly, the PTV should be interpreted as shown in the table below. This table relates to pedestrians walking in a straight line on a level surface. It can be used to accurately test the slip potential on dry or contaminated floors.

PTVSlip Potential
0 - 24High
25 - 35Moderate
36 + Low

See British Standard BS 7976-2 for more information on conducting Floor Pendulum Testing on pedestrian surfaces. Pendulum Test Certificate available on request.

Ramp Test Values (DIN 51130)

Finish/StyleR Rating ValueFriction
Grip, Structured R11 Good
Natural R10 Normal

Understanding Ramp Test Data

DIN Standard Ramp Testing (DIN 51130) is an alternative to Pendulum Testing and generally categorised as an 'off-site' activity because of the size and complexity of the equipment required to carry out the test. The Slip Resistance Values (RSV) are factory gate values (based on supplied tiles) and categorised using the Ramp Test (DIN 51130) method which is commonly used by European factories. In this method, a lubricated inclined platform is adjusted to a gradually increasing gradient, and the angle is measured at which a person walking on it slips.

We have deliberately not included the ramp test angles on this page as this information can be confused with the angle that a floor may be safely set to, which is incorrect. The shod test results are quoted as an R Rating value from R9 to R13, which relates to the ramp angle.

R Rating ValueFriction
R9Minimal
R10Normal
R11Good
R12Good
R13Very high

See the Health and Safety Executives website for more information regarding the Ramp Test procedure. Ramp Test Certificate available on request.

Technical Data

SpecificationTest MethodsRequired ValueManufacturers mean value
Length and widthISO 10545-2±0.6%Conforms
ThicknessISO 10545-2±5%Conforms
LinearityISO 10545-2±0.5%Conforms
WedgingISO 10545-2±0.6%Conforms
WarpageISO 10545-2±0.5%Conforms
Water AbsorptionISO 10545-3≤ 0.5%Average ≤ 0.1%
Surface ResistanceISO 10545-4Medium value 35 N/mm² minConforms
Scratch ResistanceISO 10545-6175mm³Average <150mm³
Coefficient of linear thermal-expansionISO 10545-8On RequestOn Request
Thermal Shock ResistanceISO 10545-9On RequestResistant
Frost ResistanceISO 10545-12On RequestResistant
Resistance to chemical attackISO 10545-13Test method availableResistant
Stain Resistance of unglazed matt porcelainISO 10545-14Test method availableOn Request
Slip ResistanceDIN 51130-Natural R10
   Structured R11

Urbe is ECOLABEL and LEED® certified.

Download PDF Catalogue

You can download the Urbe PDF catalogue here. You can call us on 020 3141 3337 or email enquiry@porcelaintiles.co.uk for more information about our Italian porcelain tiles. You can also download the Now Imagine catalogue here. Now Imagine provides our clients with full technical and manufacturing support, enabling them to incorporate large format Italian porcelain surfaces into their designs in new and innovative ways. Through our Now Imagine campaign we hope to inspire designers to think of each porcelain slab as a creative surface. Discover more here.

Ordering tile samples

To order Corda – Grip tile samples please click the black Order Sample button.

To review your items or to complete your order simply click on the white  tile icon in the top right-hand corner on any page of our website. You will then have the opportunity to review, edit or complete your order. You can also complete your order by clicking on the button below.

Tile samples are provided in 10 x 20 cm format.

Environmentally Certified

All our porcelain surfaces are manufactured using sustainable processes that minimise the impact on the environment, conserving both energy & natural resources.

All products are produced without the use of any harmful or radioactive materials, are free from pollutant emissions and will not effect air quality. All packing material is produced with recycled material. Wherever possible, heat generated as a by-product of the manufacturing process is used for electricity generation, making factories energy self sufficient. All waste material that is associated with the supply of the tile surface is fully recyclable.

All products are manufactured using materials from renewable sources. They have a reduced environmental impact throughout their lifespan and no toxic, harmful or polluting substances are used for their composition and production. The materials do not release toxic, harmful or polluting substances.

Urbe meets the highest standards of quality and environmental regulations and conforms to the following certifications:

LEED®

LEED<sup>®</sup> certified

LEED® (Leadership in Energy and Environmental Design) is the world's most widely used green building rating system by the U.S. Green Building Council. LEED® certification provides independent, third party verification that a building project meets the highest green building and performance measure. All certified projects receive a LEED® plaque, which is nationally recognized symbol demonstrating that a building us environmentally responsible, profitable and a healthy place to live and work.

The LEED® program encourages the adoption of sustainable green building and development practices and promotes a whole-building approach to sustainability by recognizing performance in five key areas of human and environmental health: sustainable site development, water savings, energy efficiency, materials selection and indoor environmental quality.

All porcelain tiles within our collection comply with LEED® certification and are suitable for the LEED® approval process.

EU Ecolabel

ECOLABEL certified

The EU Ecolabel helps you identify products and services that have a reduced environmental impact throughout their life cycle, from the extraction of raw material through to production, use and disposal. Recognised throughout Europe, EU Ecolabel is a voluntary label promoting environmental excellence which can be trusted.

The EU Ecolabel is awarded according to ecological criteria agreed on by experts, industry, consumer organisations and environmental NGOs and verified by independent third parties.

NSF®

NSF certified

NSF® has facilitated the development of more than 75 standards and protocols for sanitary food equipment, and has certified thousands of products as safe to use in restaurant and commercial kitchen settings. NSF® food equipment standards include requirements for material safety, design, construction and product performance. The products conform to the requirements of NSF/ANSI Standard 51 – Food Equipment Materials. NSF/ANSI 51 establishes minimum public health and sanitation requirements for materials and finishes used in the manufacture of commercial foodservice equipment.

GREENGUARD

GREENGUARD certified

GREENGUARD Certification ensures that a product meets stringent standards for minimal emissions of volatile organic compounds (VOCs) into indoor air. This program provides assurance that products designed for indoor use adhere to strict chemical emissions limits, fostering the creation of healthier interiors. Manufacturers with GREENGUARD Certification gain credibility for their sustainability claims, supported by empirical technical data from an unbiased third-party organisation. The GREENGUARD Certification Program instills confidence by ensuring that indoor products meet strict chemical emissions limits, contributing to the creation of healthier interior spaces. This empowers manufacturers to produce and customers to identify products with low chemical emissions, thereby supporting air quality and environmental well-being.

For more information please read our article on Environmental Impact.
